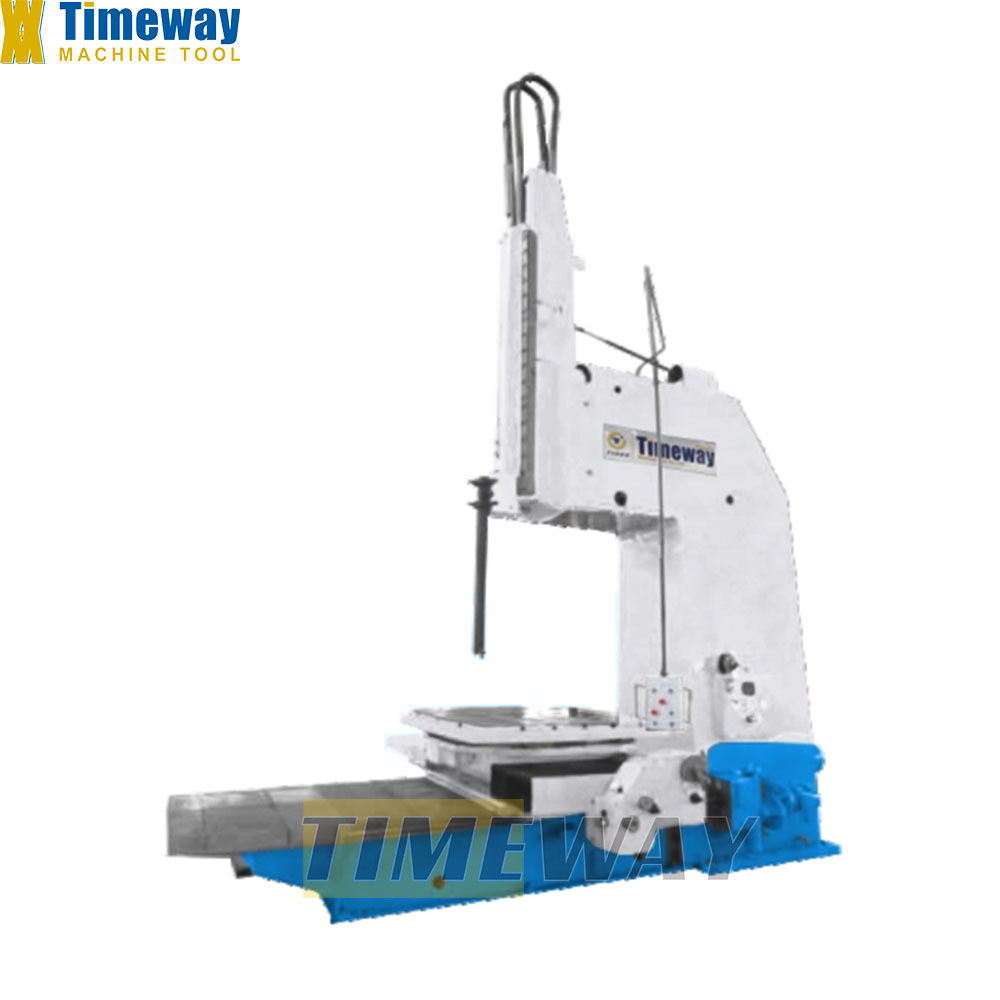

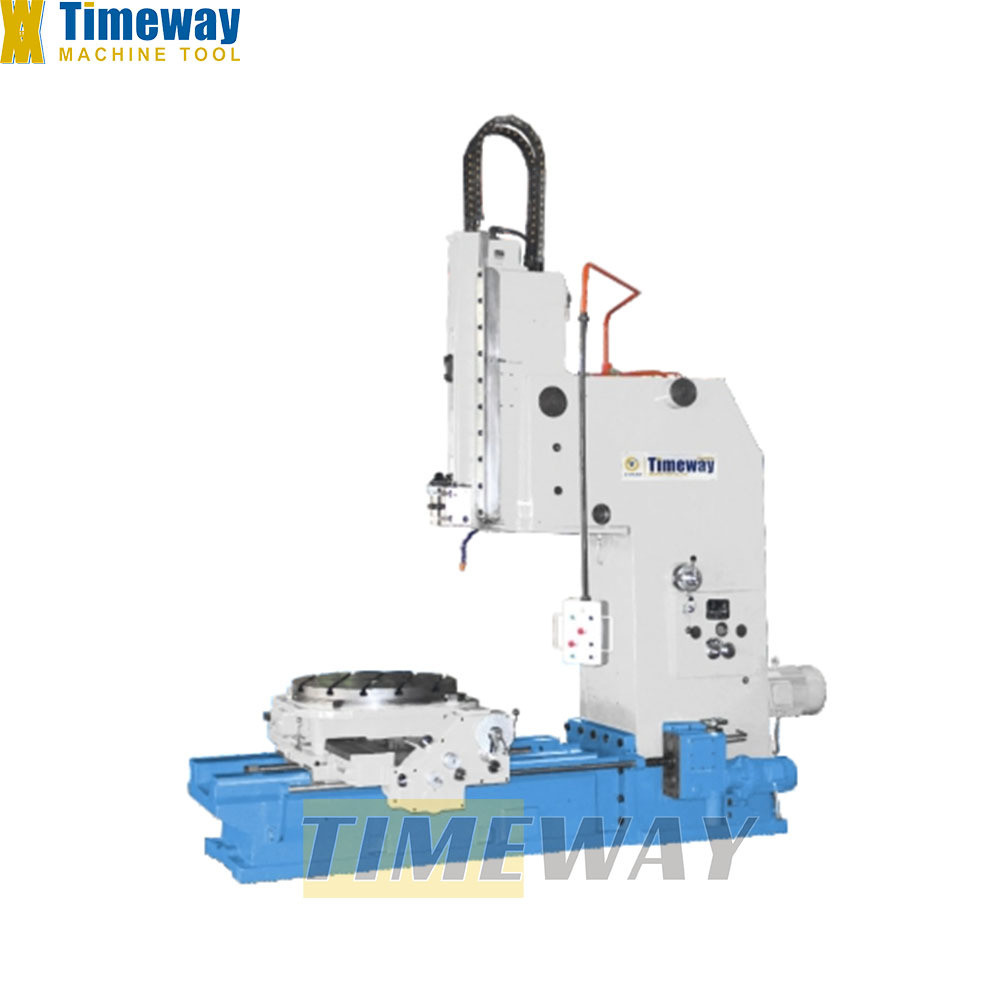

Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Warranty :
1 Year
Key Selling Points :
Competitive Price
Power (kW) :
11
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
Egypt, United States, Italy, Germany, Indonesia, India, Spain, Thailand, South Korea, Colombia, Bangladesh, Kyrgyzstan, Nigeria
Weight (KG) :
28000 KG
Product name :
Mechanical Slotting Machine
Model :
BH-1600
After-sales Service Provided :
Provide
Material :
Metal
COLOR :
Support Customized
Key word :
Slotting Machine
Max. slotting length :
1600mm
Table longitudinal travel :
1645mm
Table cross travel :
1340mm
Table diameter :
1400mm
Price :
$12,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Product Description
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Specification
SPECIFICATION
UNIT
BH-1600
Max. stroke length of ram
mm
1680
Min. stroke length of ram
mm
350
Max. slotting length
mm
1600
Ram vertical adjustable stroke
mm
1200
Ram slotting speed
m/min
5-17
Ratio of slotting speed and return speed
-
1:1.3
Ram slotting speed steps
steps
stepless
Max. slotting force
KN
27
Distance from tool holder to column
mm
1600
Distance from ram nose to table
mm
1800
Table longitudinal travel
mm
1645
Table cross travel
mm
1340
Table diameter
mm
Φ1400
Inclination of ram
°
0-11°
Vertical feed rate (stepless)
mm
0-0.6
Range of horizontal feed(stepless)
mm
0-1.36
Range of rotary feed(stepless)
°
0-1.25°
Loading capacity
kg
6000
T-slots width
mm
28H8
Main motor power
kw
11
Main motor rotation speed
rpm
960
Rapid feed motor power
kw
2.2
Rapid feed motor rotation speed
rpm
940
Cooling pump motor power
kw
0.04
Machine weight
kg
28000
Machine dimensions (LxWxH)
mm
5090x2970x7500
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line

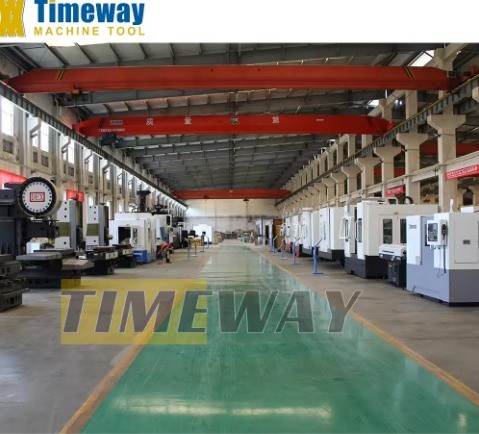

Factory Display：
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
