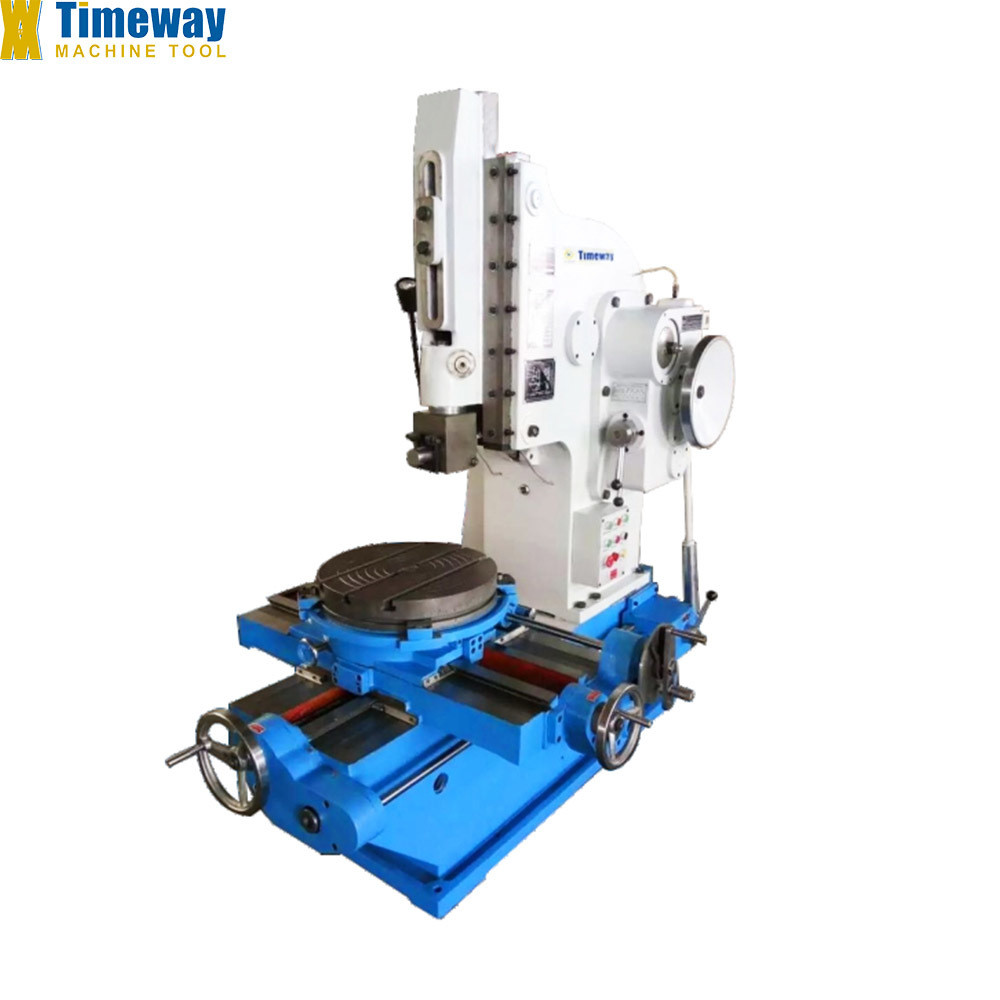

Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
Egypt, United States, Italy, Germany, Indonesia, India, Spain, Thailand, South Korea, Colombia, Bangladesh, Kyrgyzstan, Nigeria
Weight (KG) :
2200 KG
Product name :
Mechanical Slotting Machine
Model :
B-200, B-320
Machine Type :
Vertical
Material :
Metal
COLOR :
Support Customized
Key word :
Slotting Machine
Max. slotting length :
200/320mm
Table diameter :
500/630mm
Table longitudinal travel :
450/620mm
Table cross travel :
500/560mm
Price :
$11,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Product Description
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Specification
SPECIFICATION
UNIT
B-200
B-320
Max. slotting length
mm
200
320
Max. weight of workpiece
kg
400
500
Ram movement times
times/min
32, 50, 80, 125
20, 32, 50, 80
Ram vertical adjustable stroke
mm
230
315
Tool shank size
mm
25x40
25x40
Table diameter
mm
500
630
Distance from tool holder to column
mm
485
600
Distance from ram nose to table
mm
320
490
Table longitudinal travel
mm
450
620
Table cross travel
mm
500
560
Table longitudinal & cross feed rate
mm
0.08-1.21
0.08-1.21
Table rotary feed rate
°
0.052-0.783
0.052-0.783
Main motor power
kw
3
4
Main motor speed
rpm
1430
960
Machine weight
kg
2200
3500
Machine dimensions (LxWxH)
mm
1916x1305x1995
2180x1505x2285
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Factory Display：
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Metal Vertical Slotting Machine B-200 with Table Diameter of 500/630mm and Performance
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
