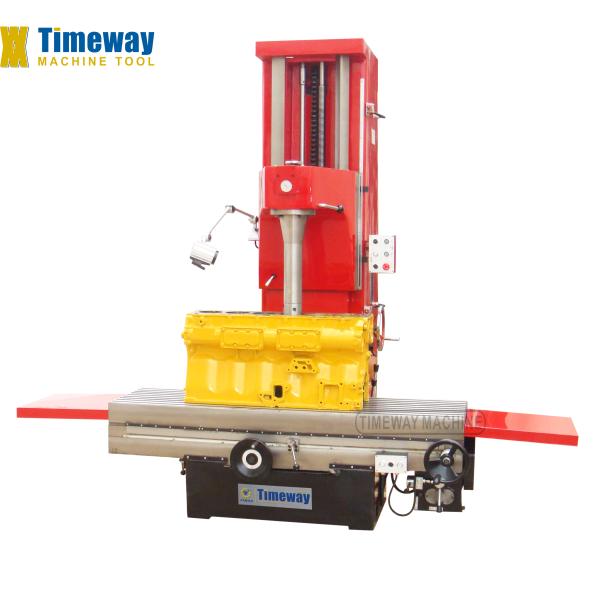

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth
Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth
Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth
Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth
Specifications
Table Size (mm) :
1200*500
Table Travel (X) (mm) :
800 mm
Table Travel (Y) (mm) :
100 mm
Table Travel (Z) (mm) :
0 mm
Number of Axes :
3
Travel (W-axis) (mm) :
500 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
600 r.p.m
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220V/380V
Dimension(L*W*H) :
Table Size
Weight (T) :
2 T
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works
Showroom Location :
Philippines, Pakistan, Morocco, Colombia, Kazakhstan, Japan
machine tool :
boring machine
Style :
Fashion
Brand :
TIMAC
Spindle travel :
500mm
Table size :
1200x500mm
Table travel - crosswise :
100mm
After-sales Service Provided :
Online support
Packaging Details :
In plywood cases.
Port :
China port.
Supply Ability :
200 Set/Sets per Month
Price :
$9,000.00/sets 1-2 sets
MOQ :
1 set
Description

Cylinder Boring and Honing Machine

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

Specifications

Unit

T8018A

T8018B

T8018C

Range of boring diameter

mm

φ30-φ180

φ42-φ180

Max. boring depth

mm

450

650

The rotational speed of spindle

r/min

140-610

175,230,300,350,460,600

175,230,300,350,460,600

Spindle feed

mm

0.05, 0.10, 0.20

0.05, 0.10, 0.20

Spindle travel

mm/r

500

800

The high rising speed of spindle

m/min

2.65

2.65

The distance from the central line of the spindle to the body

mm

320

315

Table size

mm

1200x500

1680x450

Table travel - crosswise

mm

100

150

Table travel - legthwise

mm

800

1500

Rapid travel of guide slide

mm/min

2800

2800

Rapid travel of table

mm/min

-

1400

Main motor power

kw

3

2.4/3

2.4/3

Motor for quick-moving

kw

0.75

0.75

Overall dimension(LxWxH)

mm

200x1235x1920

2680x1500x2325

Packing dimension(LxWxH)

mm

1400x1400x2250

1578x1910x2575

N.W./G.W.

kg

200/2200

3500x3700

Packaging & Shipping

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

Company Introduction

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

Export Cases

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

Exhibitions

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

Customers Visited

Fashionable Style T8018A T8018B T8018C Cylinder Boring Machine for Your Business Growth

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
