290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
290 KG Brake Drum Disc Lathe The Ultimate Solution for Other Automotive Repair
Specifications
Max. Length of Workpiece (mm) :
180
Range of Spindle Speed(r.p.m) :
70 - 118 r.p.m
Machining Capacity :
Light Duty
Type :
Other
Spindle Motor Power(kW) :
0.75
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
as customer's request
Dimension(L*W*H) :
970*920*1140mm
Weight (KG) :
290 KG
Warranty :
1 Year, 12 months
Key Selling Points :
Energy saving
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Automatic Grade :
Semi-automatic
After-sales Service Provided :
Engineers available to service machinery overseas, Online support
Color :
customized
Brake Lathe :
Brake Drum Disc Lathe
Power :
depends on different models
Weight :
290 kg
After Warranty Service :
Online support
Local Service Location :
Italy, Peru, Russia, UAE, Romania
Certification :
CE & ISO9001
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Construction works , Energy & Mining
Showroom Location :
Germany, Brazil, Chile, Romania, Ukraine
Core Components :
Pump, Gear, Motor
Max. Turned Length (mm) :
300 mm
Packaging Details :
in wooden case (can be fumigated) or as your request
Port :
China Port
Supply Ability :
300 Set/Sets per Month
MOQ :
1 set
Price :
$6,800.00/sets 3-4 sets
Description

Brake Drum Lathe / Brake Lathe

Product Description

Features:

1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase

the maximum rotor diameter to 22’/588mm.

7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.

Parameter:

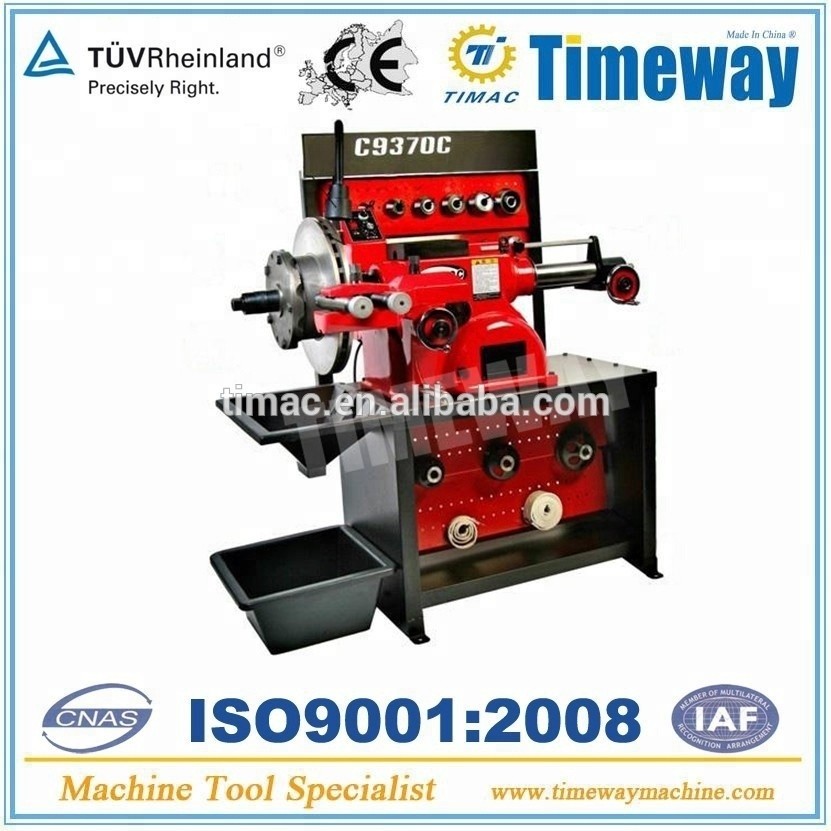

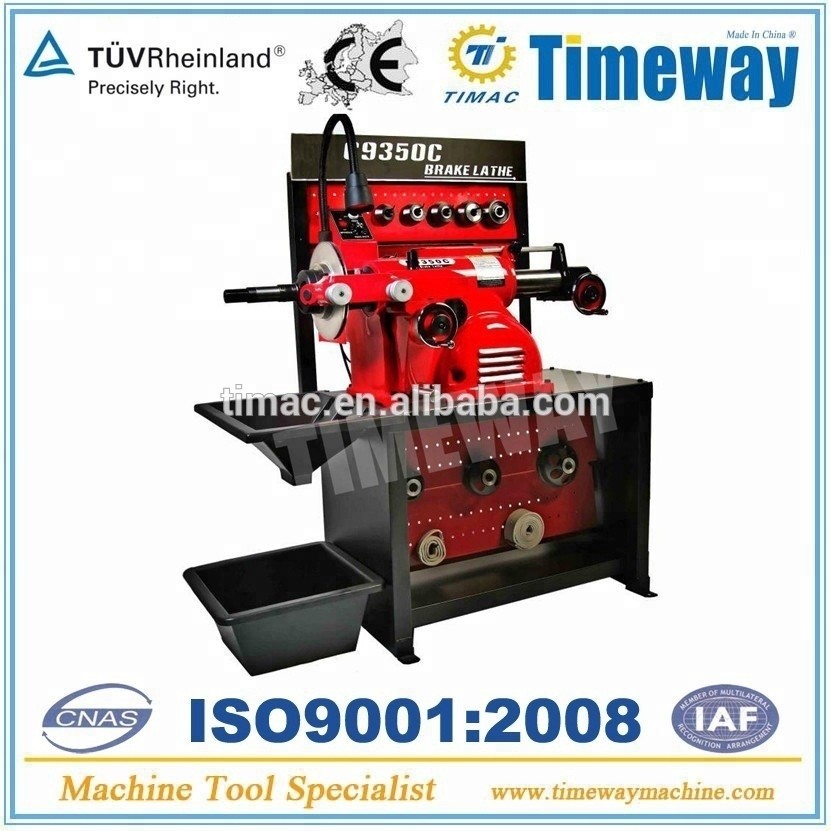

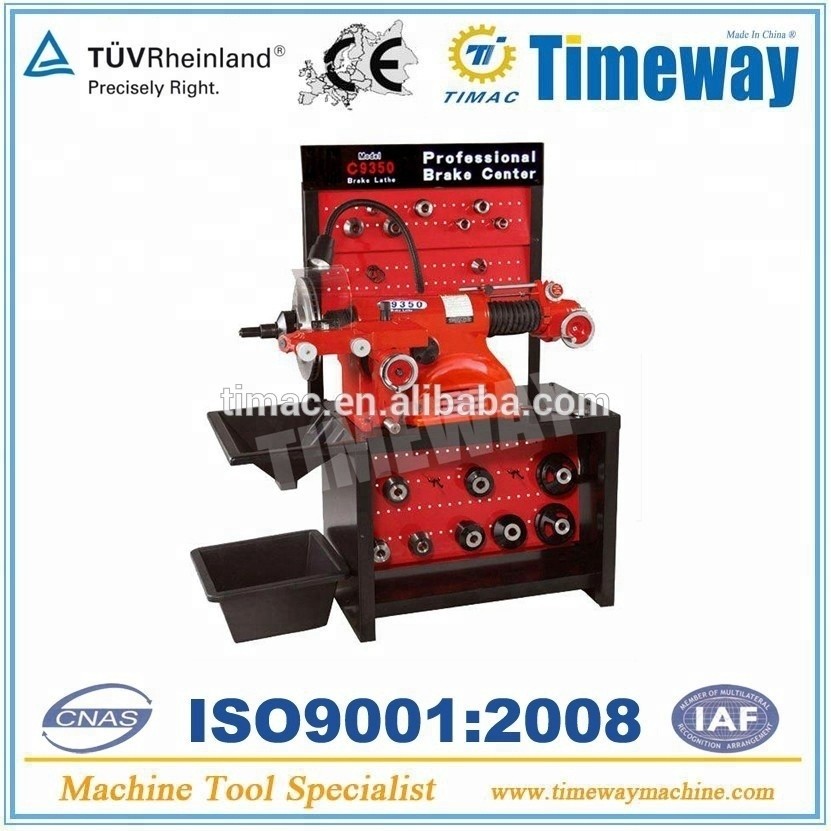

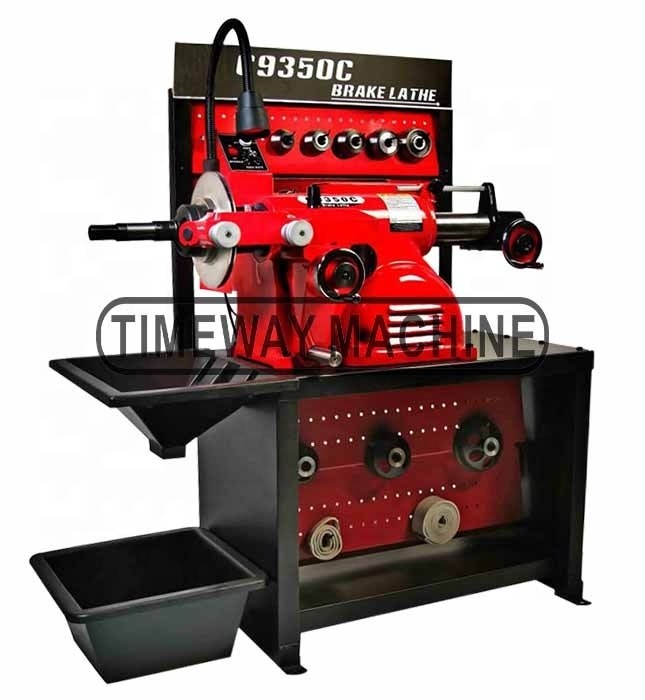

Specification C9350 C9350C C9370 C9370C C9372
Spindle Travel 6-7/8” (175mm) 9.875" (251mm) 9″/229mm
Spindle speed 70,88,118 rpm 70,88,118 rpm 70-320RPM
Spindle feed speed 0.002"-0.02" (0.05-0.5mm)Rev 0.002"-0.02" (0.05-0.5mm)Rev

Rotor and drum feed rates

0-0.66mm
Cross feed speed 0.002"-0.02" (0.05-0.5mm)Rev 0.002"-0.01" (0.05-0.25mm)Rev
Handwheel graduations 0.002"(0.05mm) 0.002"(0.05mm)
Rotor diameter 7" -15" (180mm-381mm) 7" -18" (180mm-457mm) 4″/102mm-24″/610mm
Rotor thickness 1-7/8” (48mm) 4" (102mm) 2.85"/73mm
Drum diameter 6" -28" (152mm-711mm) 6" -28" (152mm-711mm) 6″/152mm-28″/711mm
Drum depth 6-7/8" (175mm) 9.875" (251mm) 9″/229mm
Motor 110V/220V/380V,50/60HZ 110V/220V/380V,50/60HZ 110V/220V, 50/60HZ
Gross weight 290 kg 400 kg 300kg
Dimension (L×W×H) 970×920×1140mm 1100mm ×1070mm×1140mm 1130×720×750mm
