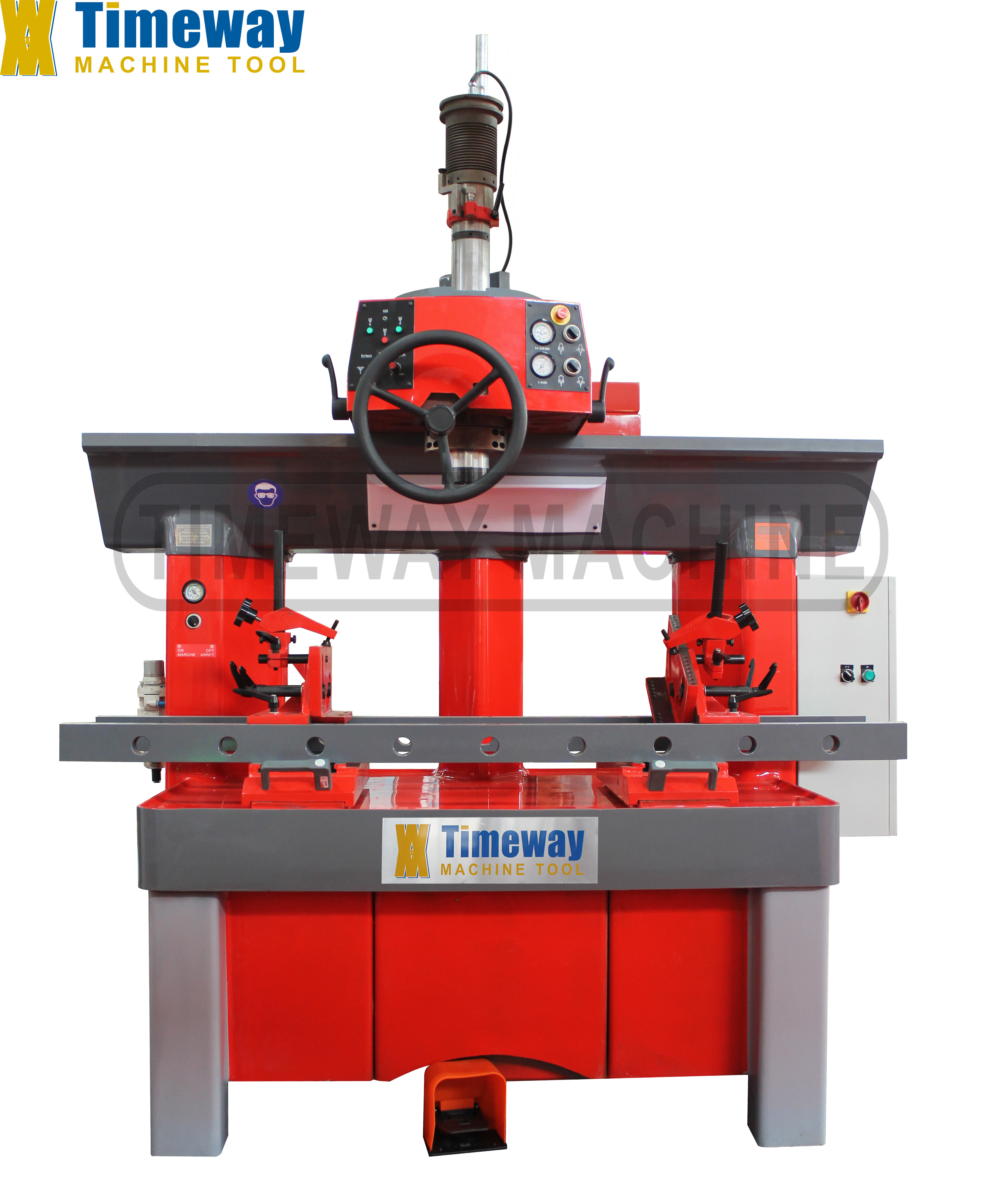

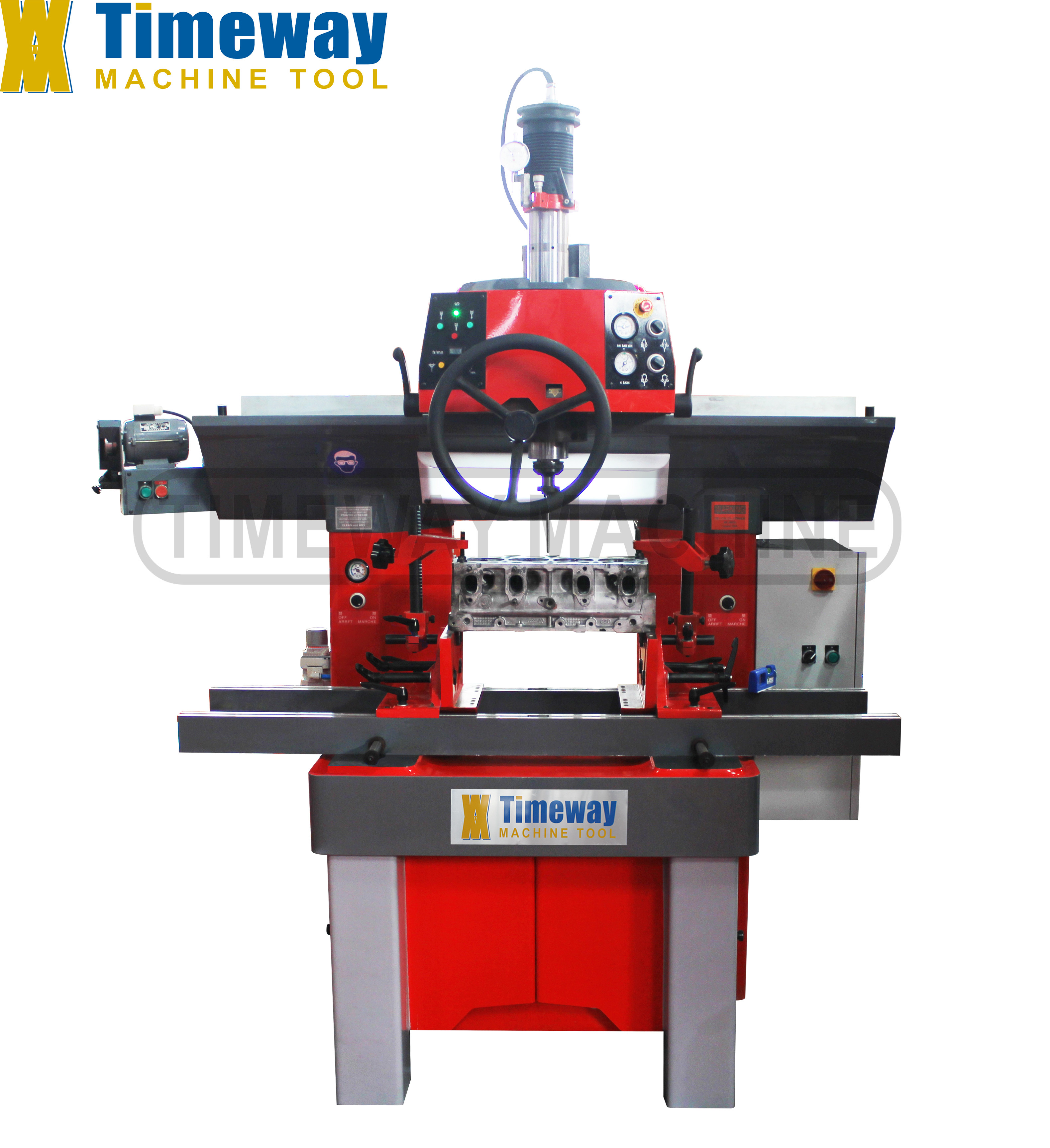

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis
Specifications
Table Travel (X) (mm) :
300 mm
Table Travel (Y) (mm) :
500 mm
Table Travel (Z) (mm) :
300 mm
Number of Axes :
2
Travel (W-axis) (mm) :
600 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
1000 r.p.m
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220V
Dimension(L*W*H) :
1600x1050x2170mm
Weight (T) :
1.1 T
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Philippines, Brazil, Pakistan, India, South Africa, Uzbekistan
After-sales Service :
Engineers available to service machinery overseas
Boring Machine :
Valve Seat Boring Machine
Power(W) :
0.4 kw
Weight :
1200 kg
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Italy, Philippines, India, Thailand, Malaysia, Morocco, Argentina, Chile, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Uzbekistan
Certification :
CE
Packaging Details :
wooden case / plywood case
Port :
China port.
Supply Ability :
400 Set/Sets per Month
Price :
$19,999.00/sets 1-2 sets
MOQ :
1 set
Description

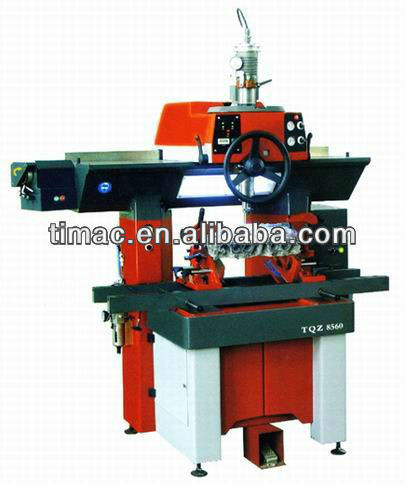

Valve Seat Boring Machine TQZ8560

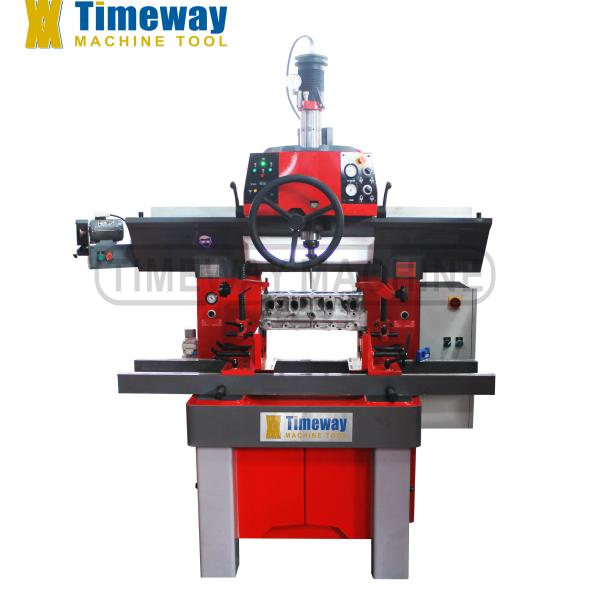

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

Specification

TQZ8560

Spindle travel

200 mm

Spindle speeds

30~750/1000rpm

Boring range

Φ14~Φ60 mm

Spindle swing angle

5°

Spindle cross travel

950 mm

Spindle longitudinal travel

35 mm

Ball seat move

5 mm

Angle of clamping device swing

+50°; -45°

Spindle motor power

0.4KW

Air supply

0.6~0.7Mpa; 300L/min

Max. size of cylinder cap for repairing

1200x500x300mm

Machine weight

1050/1200kg

Overall dimension

1600x1050x2170mm

Features:
*Model TQZ8560 valve seat boring machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc.
*The machine features are airfloating, vacuum clamping, high positing precision, easy operation. *The machine is set with grinder for cutter and vacuum check device for workpiece.

1. Moden technic, new design;
2. Air floating, air vacuum clamping, auto-centering, high, positing precision;
3. Straight and V valve seats;
4. 30°, 45°, 60°and multy-angle cutter;
5. Central operation, quick clamping;
6. Spindle frequency coverter, unstep speeds;
7. High quality surface, different clour paint;

Packaging & Shipping

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

Company Introduction

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

Export Cases

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

Exhibitions

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

Customers Visited

VERTICAL Valve Seat Boring Machine TQZ8560 with 600 mm Travel W-axis

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
