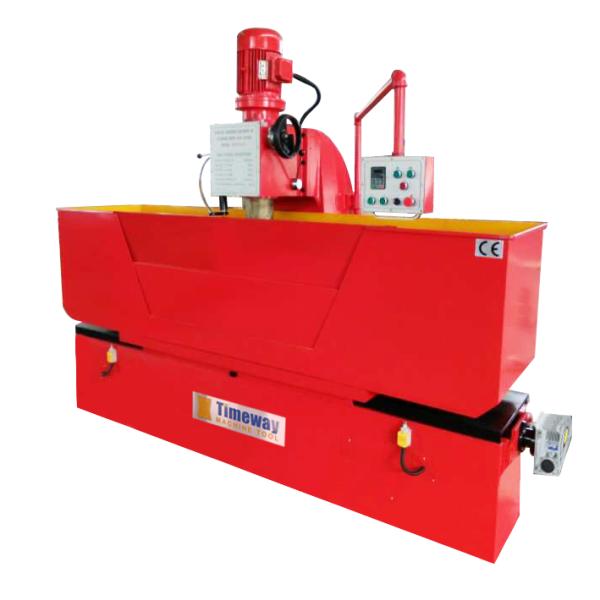

Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Specifications
Type :
Cylinder block surface grinding machine
CNC or Not :
Normal
Condition :
New
Year :
latest day
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEAY
Voltage :
220/380V
Dimension(L*W*H) :
2650x1050x2100 mm
Weight (KG) :
2300
Power (kW) :
1.5
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Mexico, South Africa, Malaysia, Kazakhstan, Nigeria, Tajikistan, Chile, Ukraine, Brazil
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Engine, Gear, Pressure vessel, Gearbox, PLC, Pump
After-sales Service :
Engineers available to service machinery overseas
Product name :
Cylinder block surface grinding machine
Max. Grinding Length :
1300 mm
Power(W) :
1.5/2.4 kw
Max. Grinding Diameter :
350 mm
After-sales Service Provided :
Online support
After Warranty Service :
1 year
Certification :
CE ISO
Name :
cylinder grinding machine for engine
Keywords :
rectificadora para vlvulas
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
200 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Summary
1. The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2.The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material.
Product Description
Cylinder Block Surface Grinding Machine
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors

Feature：

1.The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
2.Pulley adopt with unloading to make the main spindle only usutain twisting moment.
3.The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the potentiometer whorl twists and to gain right feed speed, easy to operate reliable.
Specification
Specification
3M9735Ax130
3M9735Ax150
Working table size
1300x500mm
1500x500 mm
Max. length of grinding
1300 mm
1500 mm
Max. width of grinding
350 mm
350 mm
Max height of grinding
600 mm
800 mm
Grinding wheel disk diameter
360 mm
360 mm
Spindle speed
1400/700 r/min
1400/700 r/min
Power of the main motor
1.5/2.4 kw
1.5/2.4kw
N.W. / G.W.
2800 / 3100 kg
3000 / 3300 kg
Client feedback
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Factory Display：
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
