Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V
Specifications
Type :
Belt Grinder
CNC or Not :
Normal
Condition :
New
Year :
2022
Place of Origin :
China
Brand Name :
timeway timac
Voltage :
220V 380V
Dimension(L*W*H) :
68x60x60cm
Weight (KG) :
120
Power (kW) :
0.6
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Showroom Location :
Russia, Canada, Turkey, Kazakhstan, Thailand, Chile, Brazil, Algeria, Indonesia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Other
Product name :
valve grinding machine
Weight :
120 kgs
Brand :
TIMAC
Style :
Fashion
After-sales Service Provided :
Online support
After Warranty Service :
Video technical support
Packaging Details :
wooden case
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$2,500.00/sets 1-2 sets
MOQ :
1 set
Description

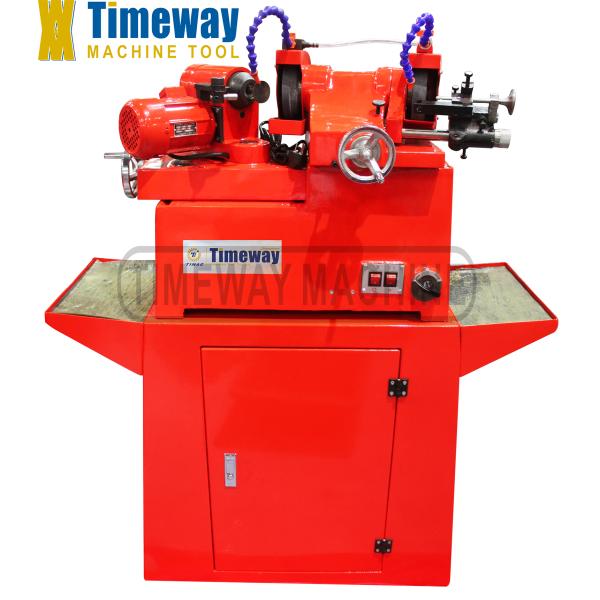

VALVE SEAT & VALVE GRINDING MACHINE

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380VAccurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380VAccurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

Features:

1. This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible and easy operation.

2. The parts are ground with high surface finish and accuracy.

Parameter:

Specification unit VR90
Max.dia.of vakves to be ground mm 90
Dia.of valve stems to be gripped(standard accessories) mm 6-16
Dia.of valve stems to be gripped(optional accessories) mm 4-7
Dia.of valve stems to be gripped(optional accessories) mm 12-18
Angles of valves to be ground ° 25-60
Longi tndinal movement of geared head mm 120
Transverse movement of grinding wheel head mm 95
Max.cutt ing depth of ground valve mm 0.025
Grinding wheel spindle speed rpm 4500
Geared head spindle speed rpm 125
Motor output for grinding wheel head kw 0.37
Motor outpnt for geared head kw 0.09
Machine weight Kg 120
Overall dimensions(L×W×H) cm 68×60×60

Packaging & Shipping

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

Company Introduction

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

Export Cases

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

Exhibitions

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

Customers Visited

Accurate Valve Grinding Machine VR90 for Machinery Repair Shops and Voltage 220V 380V

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
