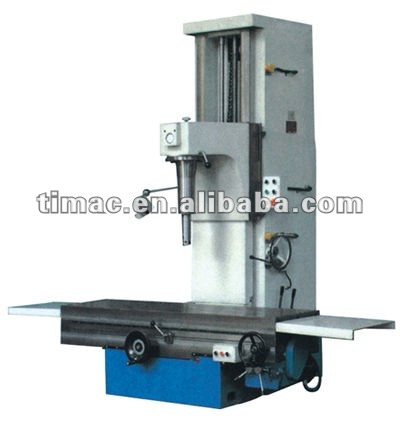

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring
Specifications
Table Size (mm) :
1200x500
Table Travel (X) (mm) :
800 mm
Table Travel (Y) (mm) :
100 mm
Table Travel (Z) (mm) :
0 mm
Number of Axes :
2
Travel (W-axis) (mm) :
100 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
600 r.p.m
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
220V/380V
Weight (T) :
2 T
Warranty :
1 Year
Key Selling Points :
Sustainable
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Pakistan, Morocco, Kenya, Argentina, South Korea
Product name :
motorcycle cylinder boring machine
Brand :
TIMAC
Style :
Fashion
Machine type :
T8016A Small Cylinder Boring Machine
Table size :
1200x500mm
X-axis travel :
100mm
Y-axis travel :
800mm
Z-axis travel :
500mm
Packaging Details :
Wooden cases ( can be fumigated)
Port :
Any China Port
Supply Ability :
65 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

Vertical Cylinder Boring Machine (T-8018A & T-8018B & T-8018C )

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

Feature:

The machine is mainly used for boring the cylinder hole of internal combustion engine and

the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.

Parameter:

Specifications

Unit

T8018A

T8018B

T8018C

Range of boring diameter

mm

φ30-φ180

φ42-φ180

Max. boring depth

mm

450

650

The rotational speed of spindle

r/min

140-610

175,230,300,350,460,600

175,230,300,350,460,600

Spindle feed

mm

0.05, 0.10, 0.20

0.05, 0.10, 0.20

Spindle travel

mm/r

500

800

The high rising speed of spindle

m/min

2.65

2.65

The distance from the central line of the spindle to the body

mm

320

315

Table size

mm

1200x500

1680x450

Table travel - crosswise

mm

100

150

Table travel - legthwise

mm

800

1500

Rapid travel of guide slide

mm/min

2800

2800

Rapid travel of table

mm/min

-

1400

Main motor power

kw

3

2.4/3

2.4/3

Motor for quick-moving

kw

0.75

0.75

Overall dimension(LxWxH)

mm

200x1235x1920

2680x1500x2325

Packing dimension(LxWxH)

mm

1400x1400x2250

1578x1910x2575

N.W./G.W.

kg

200/2200

3500/3700

T8018A: Mechanical-electronic drive and spindle speed frequence changed speed variation.
T8018B: Mechanical drive
T8018C: Used for processing special heavy motor cylinders.

Packaging & Shipping

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

Company Introduction

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

Export Cases

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

Exhibitions

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

Customers Visited

Vertical Cylinder Boring Machine 100mm X-axis Travel and 800mm Y-axis Travel for Boring

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
