TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage
Specifications
Table Travel (X) (mm) :
1000 mm
Table Travel (Y) (mm) :
45 mm
Table Travel (Z) (mm) :
0 mm
Number of Axes :
2
Travel (W-axis) (mm) :
320 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
370 r.p.m
Spindle Motor Power(kW) :
1.1
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220V/380V
Dimension(L*W*H) :
1250x1050x1970mm
Weight (T) :
1.3 T
Warranty :
1 Year
Key Selling Points :
Energy saving
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Kenya, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan
Product name :
vertical fine boring machine
Boring dia. :
39-160 mm
Style :
Fashion
Boring diameter :
39-160 mm
Max. boring depth :
320 mm
Spindle feed :
0.09 mm/r
Machine weight :
1300 kg
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support, Online support
Local Service Location :
United States, Philippines, Pakistan, India, Japan, South Korea, Romania, Kyrgyzstan, Nigeria
Certification :
ISO CE
Packaging Details :
Plywood case
Port :
China port
Supply Ability :
200 Set/Sets per Month
MOQ :
1 set
Price :
$7,880.00/sets 3-5 sets
Description

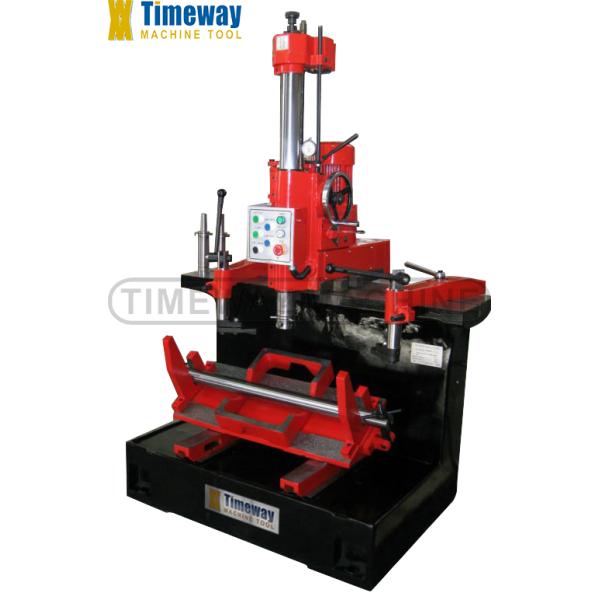

VERTICAL AIR-FLOATING FINE BORING MACHINE

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

Features:

The machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.

* Reliable performance, widely use, processing accuracy, high productivity.

* Easy and flexible operation.

* Air-floating location quick and precise, automatic pressure.

* Spindle speed is suitability.

* The tool setting and measuring device.

* There is a vertical measuring device.

* Good rigidity, amount of cutting.

Specification

Specification Unit TB8016
Boring diameter mm 39-160
Max. boring depth mm 320
Boring head travel (longitudinal/transversal) mm 1000/45
Spindle speed (4 steps) r/min 125, 185, 250, 370
Spindle feed mm/r 0.09
Spindle quick reset mm/min 430, 640
Pneumatic pressure Mpa 0.6<p<1
Motor output kw 0.85/1.1
Overall dimensions (LXWXH) mm 1250x1050x1970
Machine weight kg 1300
V-block fixture patented system (special accessories) (°) 30/45
V-block fixture patented system weight kg 130

Packaging & Shipping

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

Company Introduction

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

Export Cases

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

Exhibitions

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

Customers Visited

TB8016 Vertical Air-Float Fine Boring Machine for Fashion Style and 220V/380V Voltage

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
