T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty :
1 Year
Key Selling Points :
Competitive Price
Weight (KG) :
1200
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Thailand, Morocco, Kenya, Argentina, South Korea
Product name :
valve seat boring machine
Brand :
TIMAC
Style :
Fashion
Usage :
Valve Processing
Name :
valve seat boring machine
Type :
Easy Operate
After-sales Service Provided :
Online Service
Key words :
valve seat boring machine
Main Motor :
1.1kw
After Warranty Service :
1 year
Packaging Details :
wooden case
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$3,885.00/sets 1-2 sets
MOQ :
1 set
Description

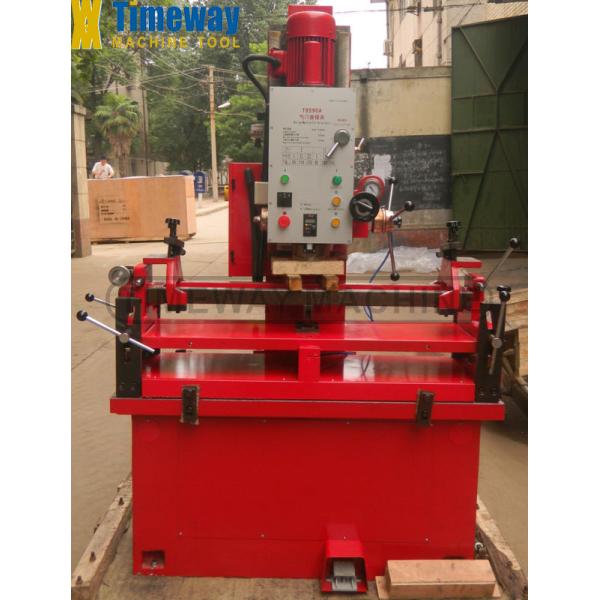

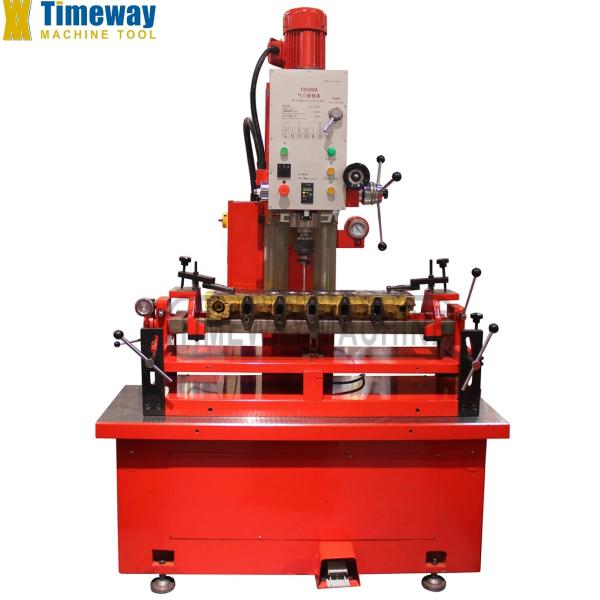

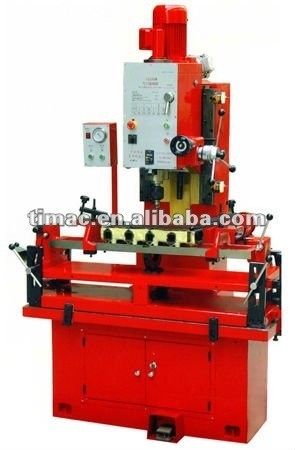

GAS VALVE SEAT BORING MACHINE T8590A & T8590B

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

Features:

1. The machine tool suits the needs of various cylinder cover for every engine.

2. It can manufacture the gas valve seats hole for cylinder cover with various angles.

3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.

4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.

5. It can be widely used with many knives and Positioning Mandrel.

6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.

7. Equipped with cutter grinder, it has long use life and cost-saving.

Specification:

Specification

T8590A

T8590B

Boring dia.

φ20mm-φ90mm

Spindle speed range

55,85,210,320,370,550rpm

30-550(stepless)

Spindle travel

180mm

Distance from spindle axis to guideway surface

270mm

Max. distance from end ofspindle to working table

750mm

Moving speed of machine head

512mm/min

Moving range of machine head

Cross

120mm

Longitudinally

860mm

Main motor power

1.1/0.85kw 1400/950rpm

Overall dimension(LxWxH)

1300x800x1930mm

Packing dimension(LxWxH)

1700x1100x2000mm

N.W/G.W

1200/140kg

Packaging & Shipping

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

Company Introduction

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

Export Cases

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

Exhibitions

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

Customers Visited

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
