Specifications
Table Size (mm) :
Other
Table Travel (X) (mm) :
330 mm
Table Travel (Y) (mm) :
400 mm
Table Travel (Z) (mm) :
1080 mm
Number of Axes :
2
Travel (W-axis) (mm) :
0 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
1440 r.p.m
Spindle Motor Power(kW) :
0.25
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC
Dimension(L*W*H) :
350*272*725
Weight (T) :
0.08 T
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Construction works , Energy & Mining
Showroom Location :
Pakistan, Thailand, Morocco, UAE, South Africa, Tajikistan, Japan
Boring dia. :
60, 70, 80 mm
Product name :
cylinder blocks boring machine
Brand :
TIMAC
After-sales Service Provided :
Online support
After Warranty Service :
Video technical support
Certification :
ISO
Packaging Details :
Plywood case
Port :
China port
Supply Ability :
300 Set/Sets per Month
Price :
$3,100.00/sets 1-2 sets
MOQ :
1 set
Description

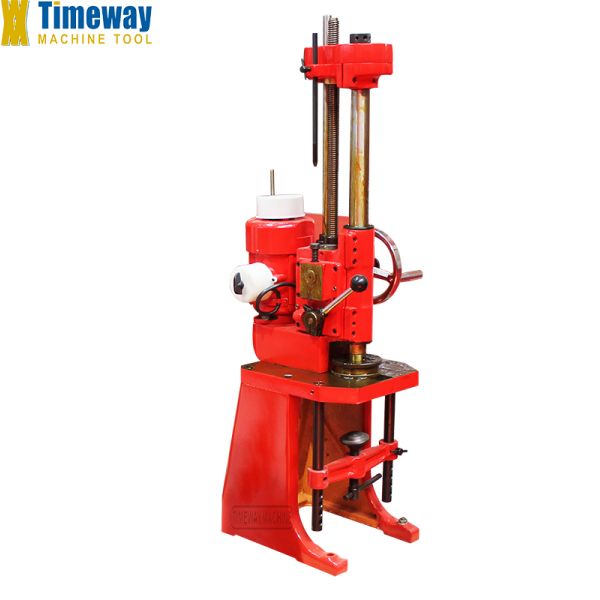

CYLINDER BORING MACHINE

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

Features:

The boring machine is mainly used for reboring engine cylinders of automobiles motor cycles and middle & small tractors.

* Reliable performance, widely use, processing accuracy high productivity.

* Easy and flexible operation.

* Good rigidity, amount of cutting.

Specification:

Specification Unit T808A T809A
Boring diameter mm Φ50-Φ85 Φ50-Φ95
Max. boring depth mm 170
Spindle speed r/min 394
Spindle feed mm/r 0.1
Spindle quick reset Manual
Voltage v 220/380
Motor power kw 0.25
Motor speed r/min 1440
Overall dimensions mm 350X272X725
Machine weight kg 48+25

Packaging & Shipping

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

Company Introduction

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

Export Cases

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

Exhibitions

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

Customers Visited

0 mm Travel W-axis Sturdy Cylinder Boring Machine with 1440 r.p.m Spindle Speed Range

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
