220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108
220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108
220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108
220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108
Specifications
Table Size (mm) :
Other
Table Travel (X) (mm) :
0 mm
Table Travel (Y) (mm) :
0 mm
Table Travel (Z) (mm) :
0 mm
Number of Axes :
2
Travel (W-axis) (mm) :
0 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
580 r.p.m
Spindle Motor Power(kW) :
0.55
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220/380V
Dimension(L*W*H) :
1620x700x1370 mm
Weight (T) :
0.8 T
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Italy, Brazil, Peru, Saudi Arabia, Mexico, Russia, Spain
After-sales Service :
Engineers available to service machinery overseas
Product name :
Cylinder Body Bushing Boring Machine
Power(W) :
0.55 w
Weight :
600/700 KG
Max.travel of shaft :
100 mm
Motor power :
0.55/0.75 Kw
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Philippines, Brazil, Pakistan, India, Mexico, Malaysia, Australia, Morocco, Chile, UAE
Certification :
ISO, CE
Packaging Details :
Wooden cases ( can be fumigated)
Port :
China Port
Supply Ability :
65 Set/Sets per Month
Price :
$29,999.00/sets 1-2 sets
MOQ :
1 set
Description

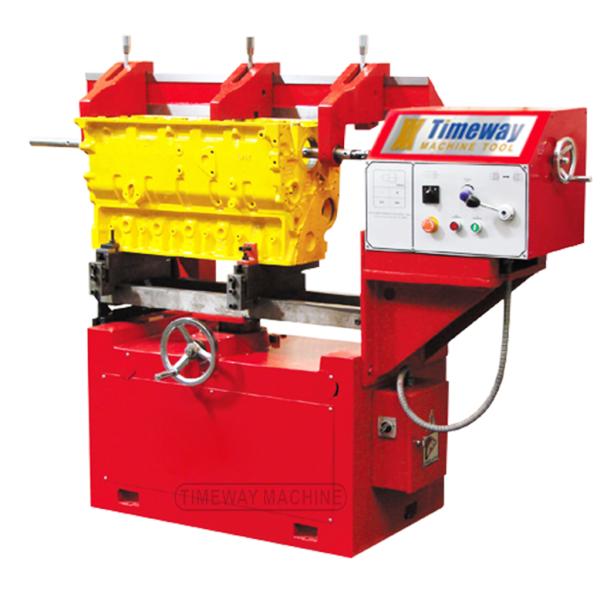

24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

Features:

Line Boring Machine For Cylinder Heads & Blocks
1. Line boring machine T8108 is a small size machine which, however, has a wide range of application.

2. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.

3. It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.

4. The machine is sturdy, compact and allows accurate machining.

Parameter:

Specification

T8108

Boring range

Φ24-Φ85 mm

Max.travel of shaft

100 mm

Max.boring length

Φ20 x 900 mm

Φ32 x 980 mm

Main shaft rotating speed

245, 380 rpm

Boring shaft feed

Stepless

Distance between cylinder fixture and boring shaft center

45-295mm

Motor power

0.55/0.75 Kw

Overall dimensions ( L×W×H)

1620×700×1370 mm

Packing dimensions (L×W×H)

1740×920×1700 mm

N.W./G.W.

600/750 kg

Packaging & Shipping

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

Company Introduction

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

Export Cases

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

Exhibitions

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

Customers Visited

220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
