Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms
Specifications
Table Size (mm) :
400*1350mm
Table Travel (X) (mm) :
300 mm
Table Travel (Y) (mm) :
900 mm
Table Travel (Z) (mm) :
700 mm
Number of Axes :
3
Travel (W-axis) (mm) :
300 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
945 r.p.m
Type :
Horizontal
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220V/380V
Dimension(L*W*H) :
as model
Weight (T) :
2.2 T
Warranty :
1 Year
Key Selling Points :
High Safety Level
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Turkey, United Kingdom, Germany, Saudi Arabia
After-sales Service :
Engineers available to service machinery overseas
Product name :
Cylinder Body Bushing Boring Machine
Power(W) :
0.75/1.1KW
Weight :
as models
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Pakistan, India, Mexico, Thailand, Japan, Malaysia
Certification :
CE ISO
Packaging Details :
Wooden cases ( can be fumigated)
Port :
China Port
Supply Ability :
65 Set/Sets per Month
Price :
$13,000.00/sets 1-2 sets
MOQ :
1 set
Description

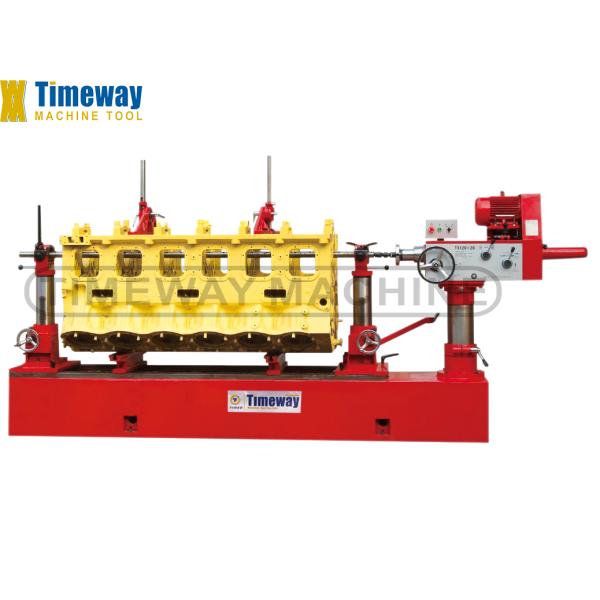

36-150mm Boring Dia./ Cylinder Body Bushing Boring Machine / T8115

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

Features:

Cylinder Body Bushing Boring Machine

1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.

2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the bushing.
5. With special measuring device, it is easily to measure the work piece.

Parameter:

Specification

T8115

T8120

Range of hole diameter to be bored

φ36-Φ150mm

φ36-φ200mm

Max. length of cylinder body to be bored

1600mm

2000mm

Main shaft max. elongation

300mm

300mm

Main shaft rotating speed(6 steps)

210-945rpm

210-945rpm

Boring shat feed

0.044, 0.167mm/r

0.044, 0.167mm/r

Motor power

0.75/1.1kw

0.75/1.1kw

Overall diemension(LxWxH)

3500x800x1500mm

3900x800x1500mm

Packing diemension(LxWxH)

3650x1000x1600mm

4040x1020x1600mm

N.W/G.W

1900/2200kg

2200/2500kg

Packaging & Shipping

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

Company Introduction

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

Export Cases

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

Exhibitions

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

Customers Visited

Normal CNC 36-150mm Boring Dia. Cylinder Body Bushing Boring Machine T8115 for Farms

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
