Specifications
Table Size (mm) :
Other
Table Travel (X) (mm) :
860 mm
Table Travel (Y) (mm) :
120 mm
Table Travel (Z) (mm) :
18 mm
Number of Axes :
2
Max. Table Load(kg) :
375
Travel (W-axis) (mm) :
512 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
550 r.p.m
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Voltage :
220/380V
Dimension(L*W*H) :
1300x800x1930mm
Weight (T) :
1.2 T
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Philippines, Pakistan, Morocco, UAE, Colombia, South Africa, Kazakhstan, Tajikistan, Japan
Table size :
other
Product name :
Valve Seat Boring Machine
X-axis travel :
820mm
Y-axis travel :
160mm
Z-axis travel :
18mm
Product type :
Manual
Name :
Boring Machine
Certification :
CE,ISO Standard
Keyword :
Boring Machines
Machine type :
Boring Machine
Packaging Details :
wooden case
Port :
China port.
Supply Ability :
400 Set/Sets per Month
Price :
$19,999.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

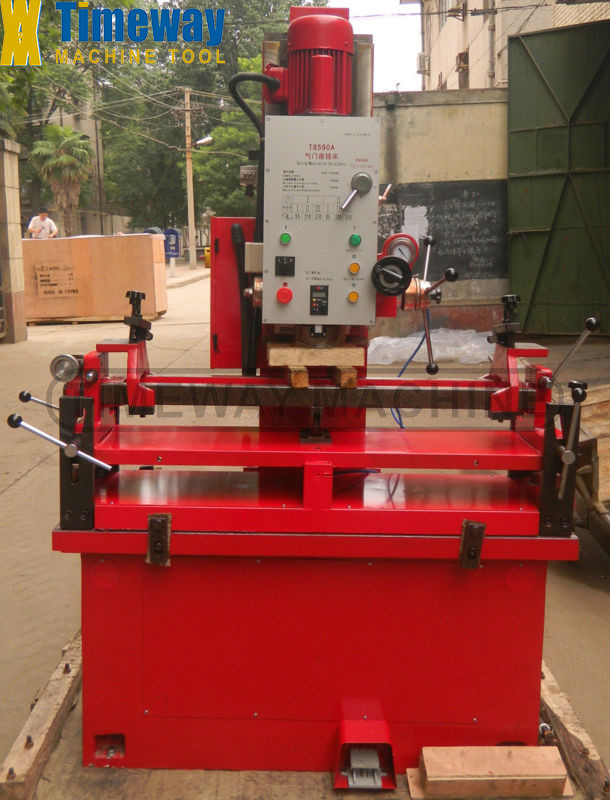

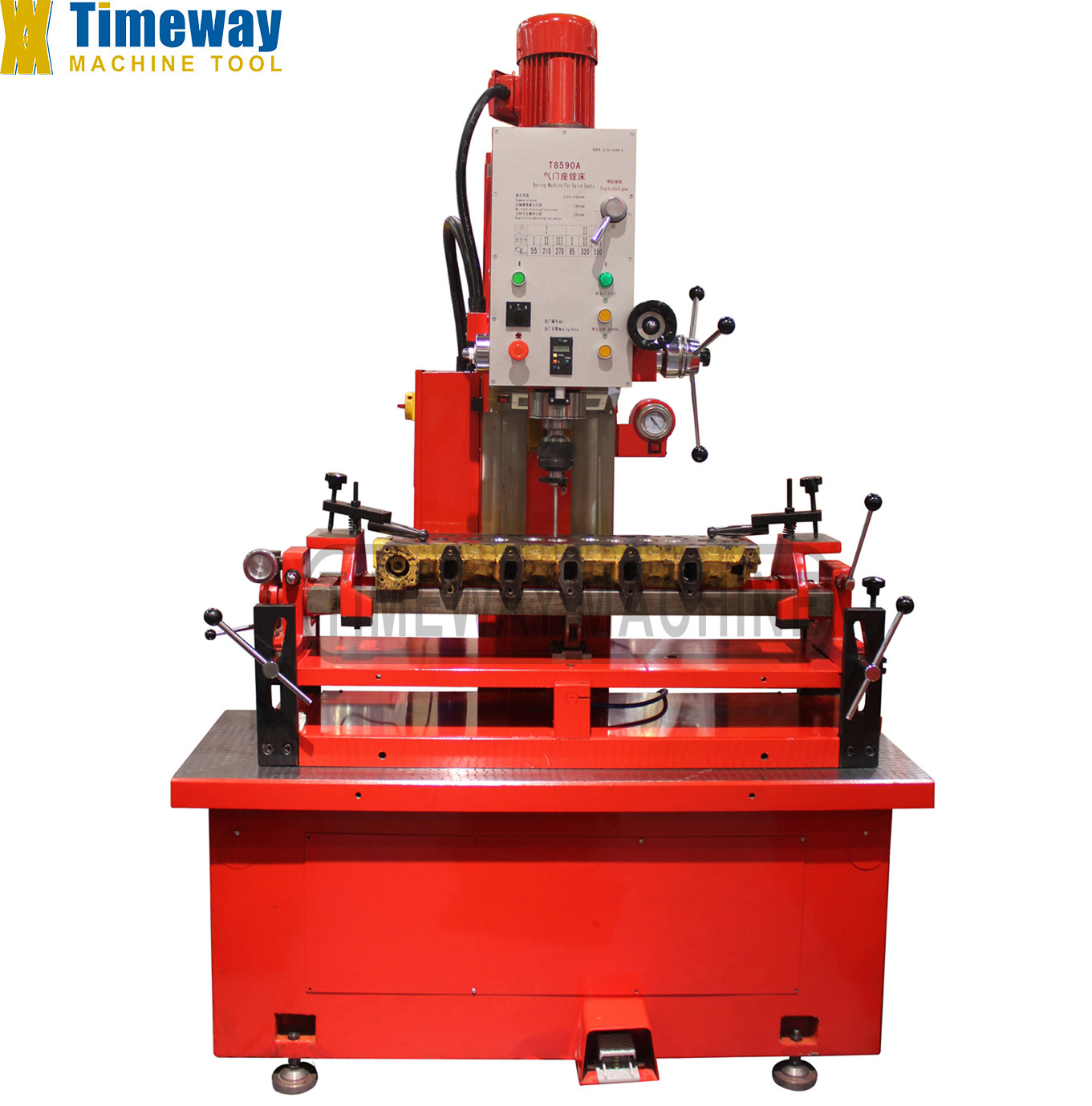

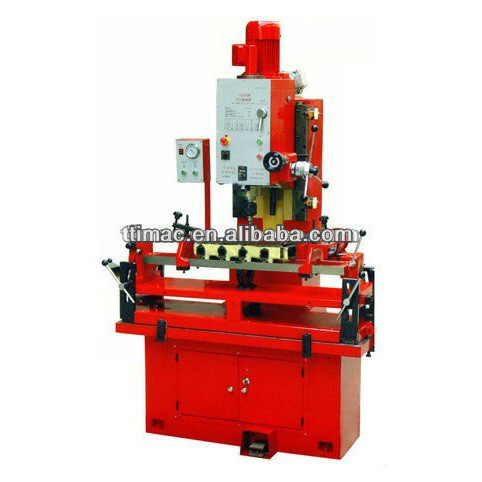

Valve Seat Boring Machine T8590A T8590B
820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring

Feature：

1. The machine tool suits the needs of various cylinder cover for every engine.
2. It can manufacture the gas valve seats hole for cylinder cover with various angles.
3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.
4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.
5. It can be widely used with many knives and Positioning Mandrel.
6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.
7. Equipped with cutter grinder, it has long use life and cost-saving.
Specification
Specification
T8590A
T8590B
Boring dia.
φ20mm-φ90mm
Spindle speed range
55,85,210,320,370,550rpm
30-550(stepless)
Distance from spindle axis to guideway surface
270mm
Max. distance from end ofspindle to working table
750mm
Moving speed of machine head
512mm/min
Moving range of machine head
Cross
120mm
Longitudinally
860mm
Overall dimension(LxWxH)
1300x800x1930mm
Packing dimension(LxWxH)
1700x1100x2000mm

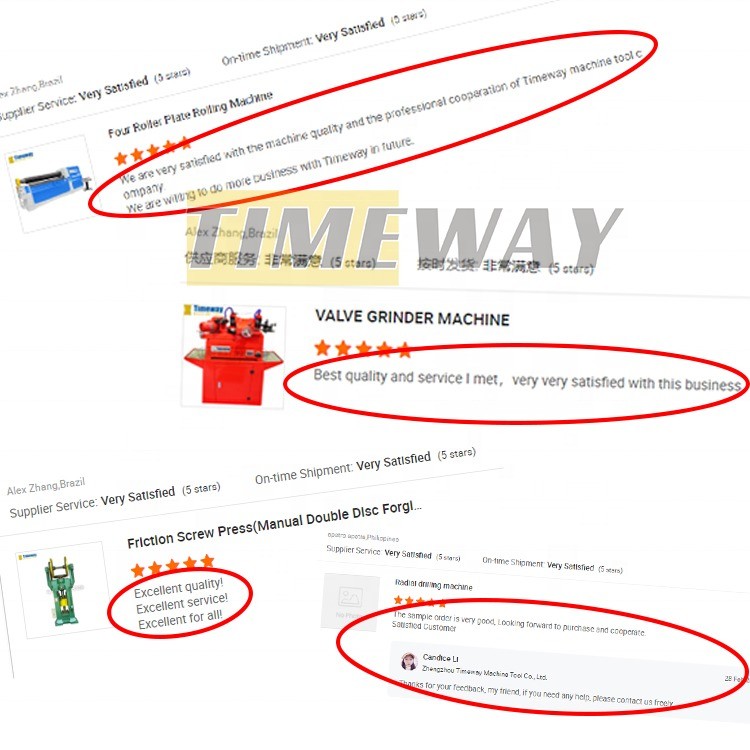

Positive Comments From Customers
820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring
Company Introduction
820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring

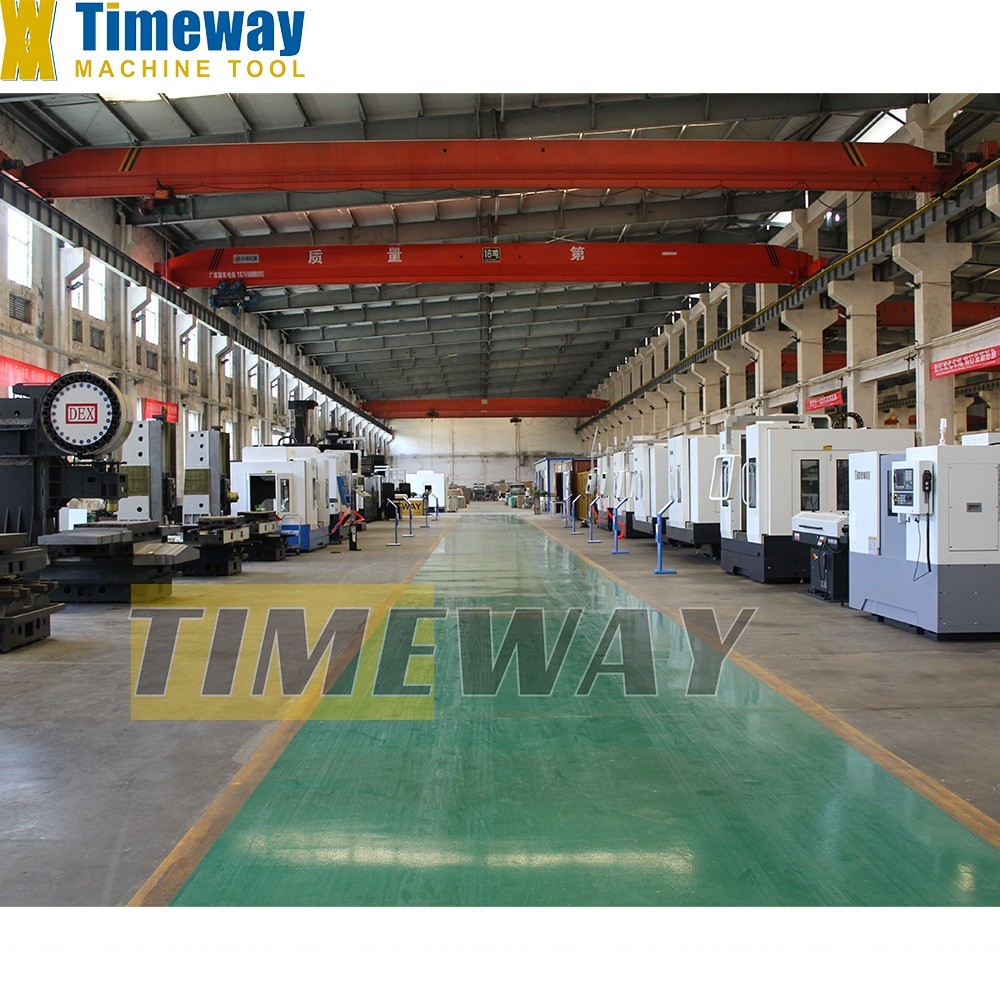

Factory Display：
820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring
Text Introduction：
820mm X-axis Travel Manual Valve Seat Boring Machine T8590A T8590B for Precise Boring
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
