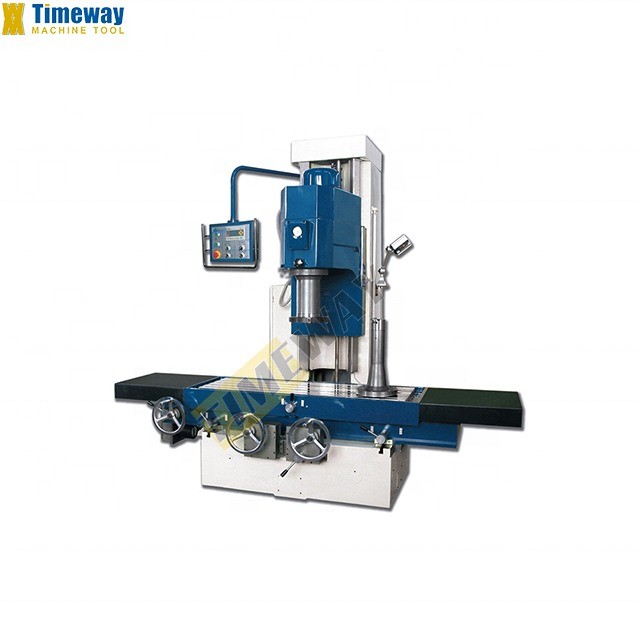

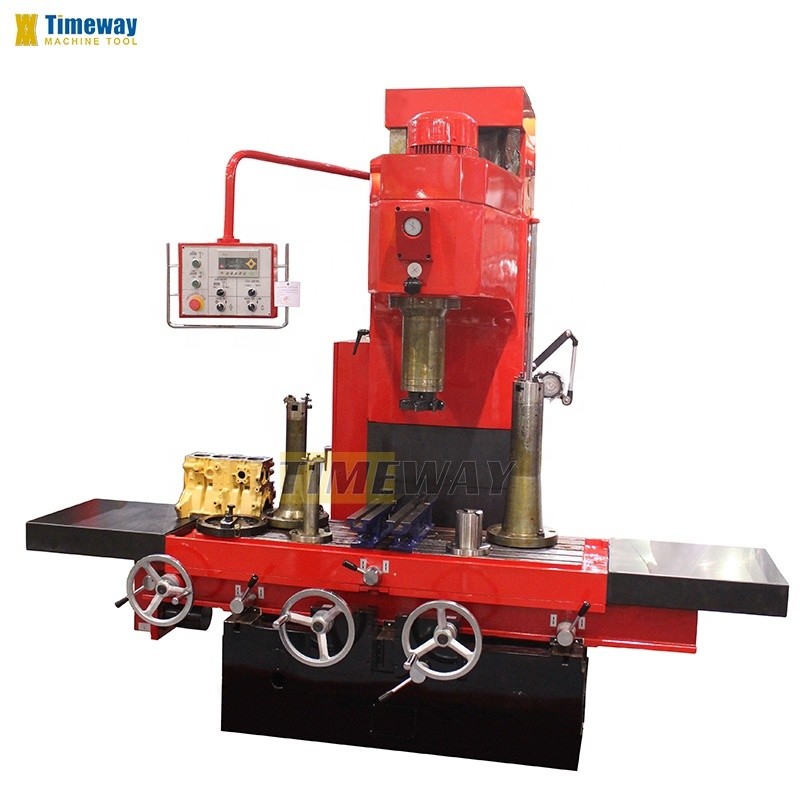

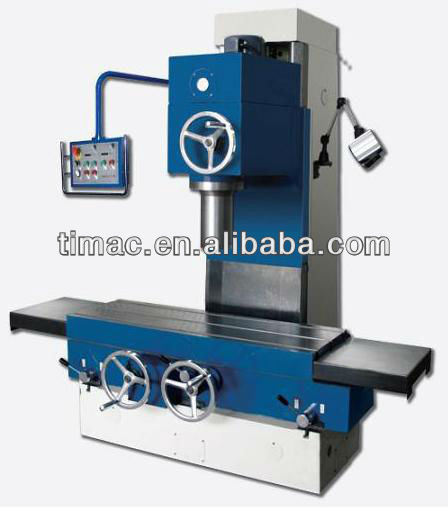

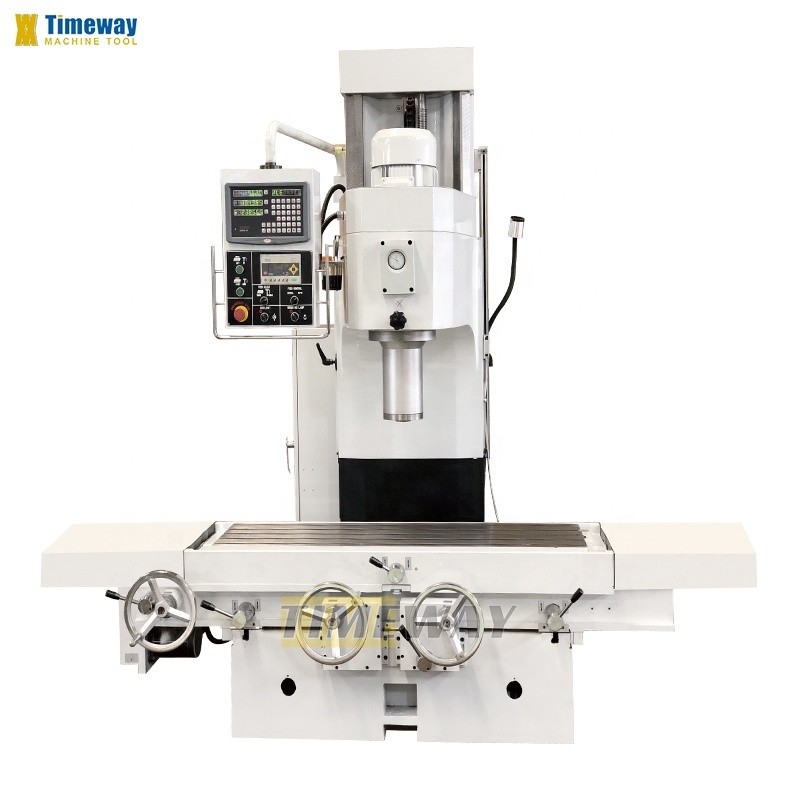

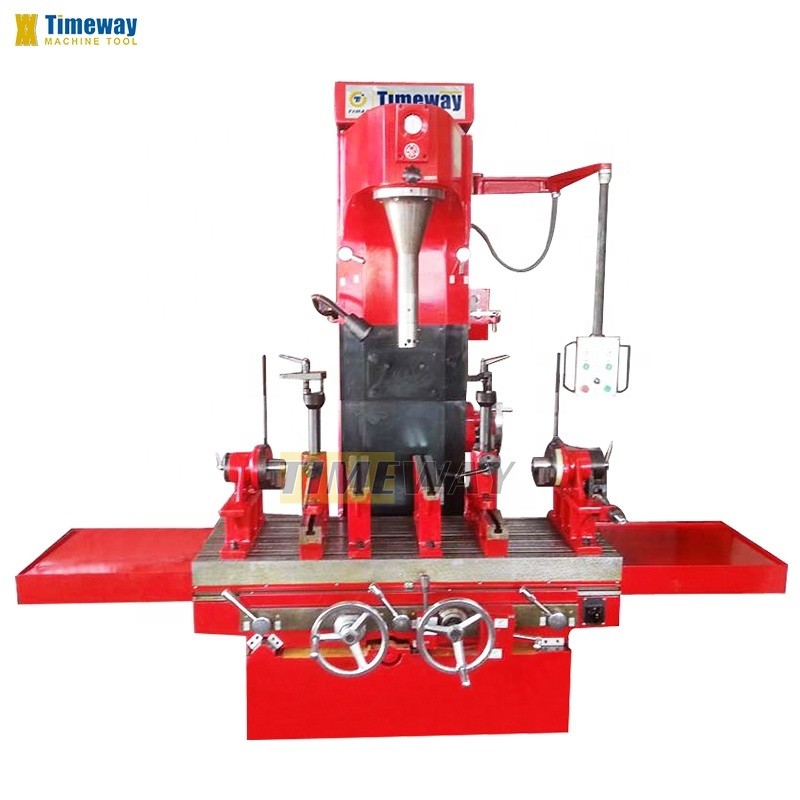

400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
Specifications
Table Size (mm) :
400x1250
Table Travel (X) (mm) :
1100 mm
Table Travel (Y) (mm) :
80 mm
Table Travel (Z) (mm) :
500 mm
Number of Axes :
2
Travel (W-axis) (mm) :
590 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Positioning Accuracy (X axis) mm :
0.05
Positioning Accuracy (Y axis) mm :
0.05
Positioning Accuracy (Z axis) mm :
0.05
No. of Spindles :
Single
Range of Spindle Speed(r.p.m) :
860 r.p.m
Spindle Motor Power(kW) :
3
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal, Normal
Place of Origin :
China
Brand Name :
TIMEWAY TIMAC
Voltage :
220V/380V/400V
Dimension(L*W*H) :
2100x1430x2010 mm
Weight (T) :
2.5 T
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Showroom Location :
Egypt, Canada, Philippines, Brazil, Indonesia, Thailand, South Africa, Malaysia, Australia
Automatic Grade :
Manual
After-sales Service Provided :
Video Technical Support
machine tool equipment :
vertical fine boring machine
Max. Swing Diameter :
170mm
Power Type :
3 Kw Servo Motor
Certification :
CE, ISO Standard
Spindle Speed :
80-860 r/min
Processing capacity :
Medium
Max boring depth :
400 mm
Packaging Details :
In plywood case.
Port :
China port.
Supply Ability :
300 Set/Sets per Month
Price :
$18,000.00/sets 1-4 sets
MOQ :
1 set
Description
Products Description
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05

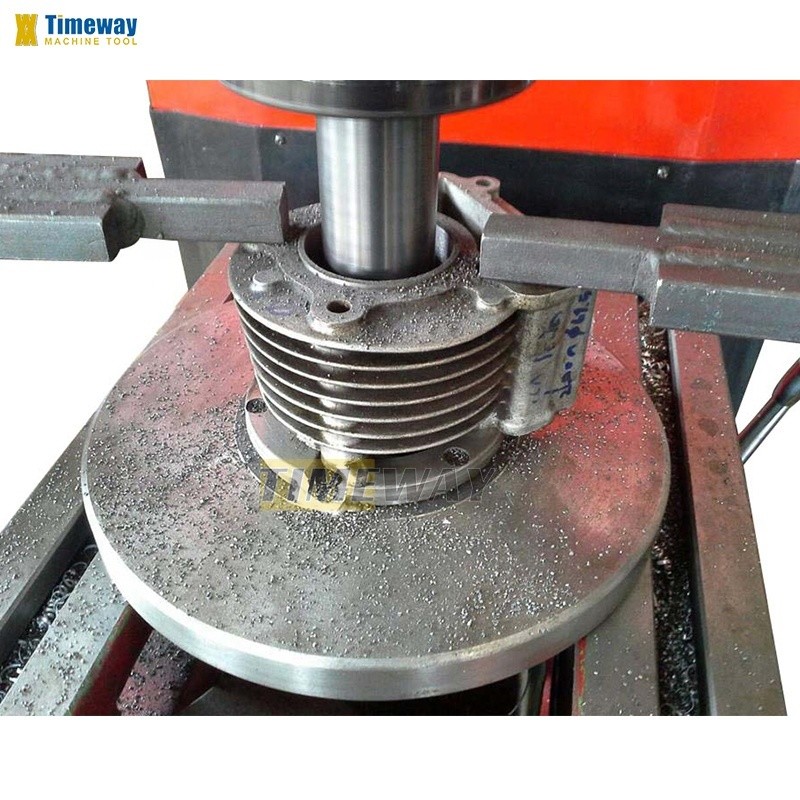

The machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
Specification
T170S
Max. boring diameter
Φ170 mm
Max. boring depth
400 mm
Max. drilling & reaming diameter
Φ30 mm
Spindle speed
80-860 r/min
Feeding of the spindle
14-810 mm/min
Rapid moving speed of the spindle
810 mm
Spindle travel
590 mm
Distance between spindle end face and table
0-500 mm
Distance between spindle axis and carriage vertical plane
330 mm
Max. longitudinal travel of working table
1100 mm
Max. cross travel of the working table
80 mm
Working table size (W×L)
400×1250 mm
Quantity of “T” Slot
3 qua.
Main motor
3 Kw
Dimension Precision
H7
Boring roughness
Ra 2.5
Overall dimensions (L×W×H)
2100×1430×2010 mm
Packing dimensions (L×W×H)
1820×1770×2190 mm
N.W./G.W.
2500/2800 kg
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
Why Choose Us
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
400 mm Vertical Cylinder Fine Boring Machine with Positioning Accuracy Z axis mm 0.05
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
