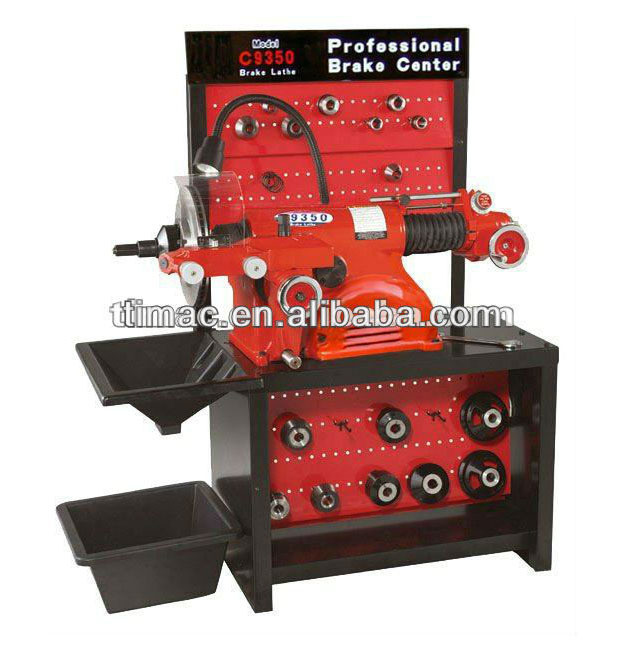

Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty :
1 Year
Key Selling Points :
Competitive Price
Weight (KG) :
325
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Italy, Brazil, Mexico, Kenya, Argentina, South Korea
After-sales Service Provided :
Engineers available to service machinery overseas
Brake Drum Lathe :
Brake Drum Disc Lathe
Product name :
brake lathe c9350
Name :
c9350 brake lathe
Key word :
c9350c
color :
Customer Choose
key selling point :
competitive price
Machine Type :
Brake Lathe Machine
Type :
brake disc lathe
Model :
C9350C
Packaging Details :
wooden case, plywood case
Port :
China port.
Supply Ability :
400 Set/Sets per Month
Price :
$7,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description
brake drum lathe machine

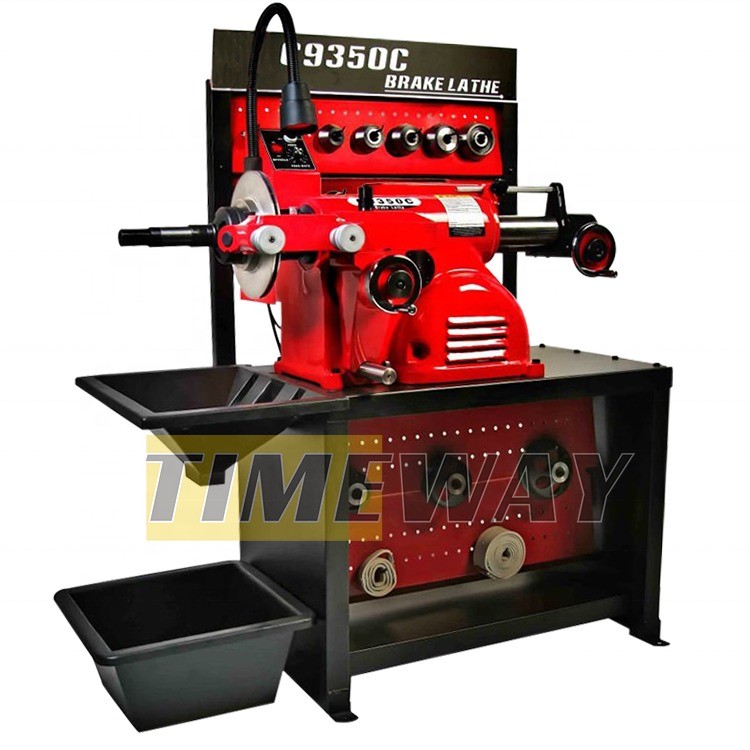

Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Specification
Specification
C9350
C9350C
C9370
C9370C
C9372
Spindle travel
6-7/8″/175mm
9.875″/251mm
9″/229mm
Spindle speed
70,88,118RPM
70,88,118 RPM
70-320RPM
Spindle feed speed
0.002″/0.05mm-0.02″/0.5mm Rev
0.002″/0.05mm-0.02″/0.5mm Rev
Rotor and drum feed rates 0-0.66mm
Cross feed speed
0.002″/0.05mm-0.02″/0.5mm Rev
0.002″/0.05mm-0.01″/0.25mm Rev
Handwheel graduations
0.002″/0.05mm
0.002″/0.05mm
Rotor diameter
7″/180mm-15″/381mm
7″/180mm-18″/457mm
4″/102mm-24″/610mm
Rotor thickness
1-7/8″/48mm
4″/102mm
2.85"/73mm
Drum diameter
6″/152mm-28″/711mm
6″/152mm-28″/711mm
6″/152mm-28″/711mm
Drum depth
6-7/8″/175mm
9.875″/251mm
9″/229mm
Motor
1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ
1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ
110V/220V, 50/60HZ
Gross weight
290kg
400kg
300kg
Dimension (L×W×H)
970×920×1140mm
1100×1070×1140mm
1130×720×750mm

Features:

1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.

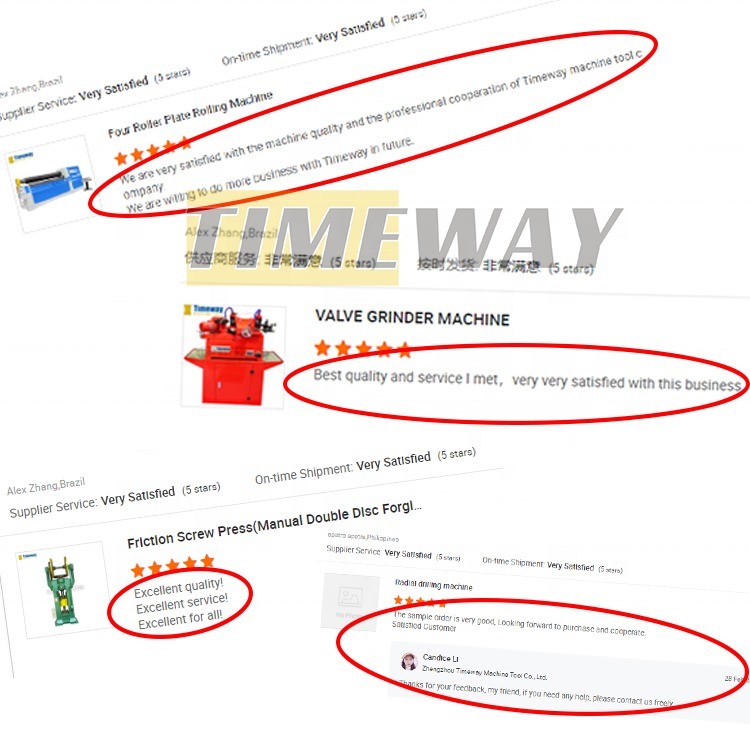

Client feedback
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment

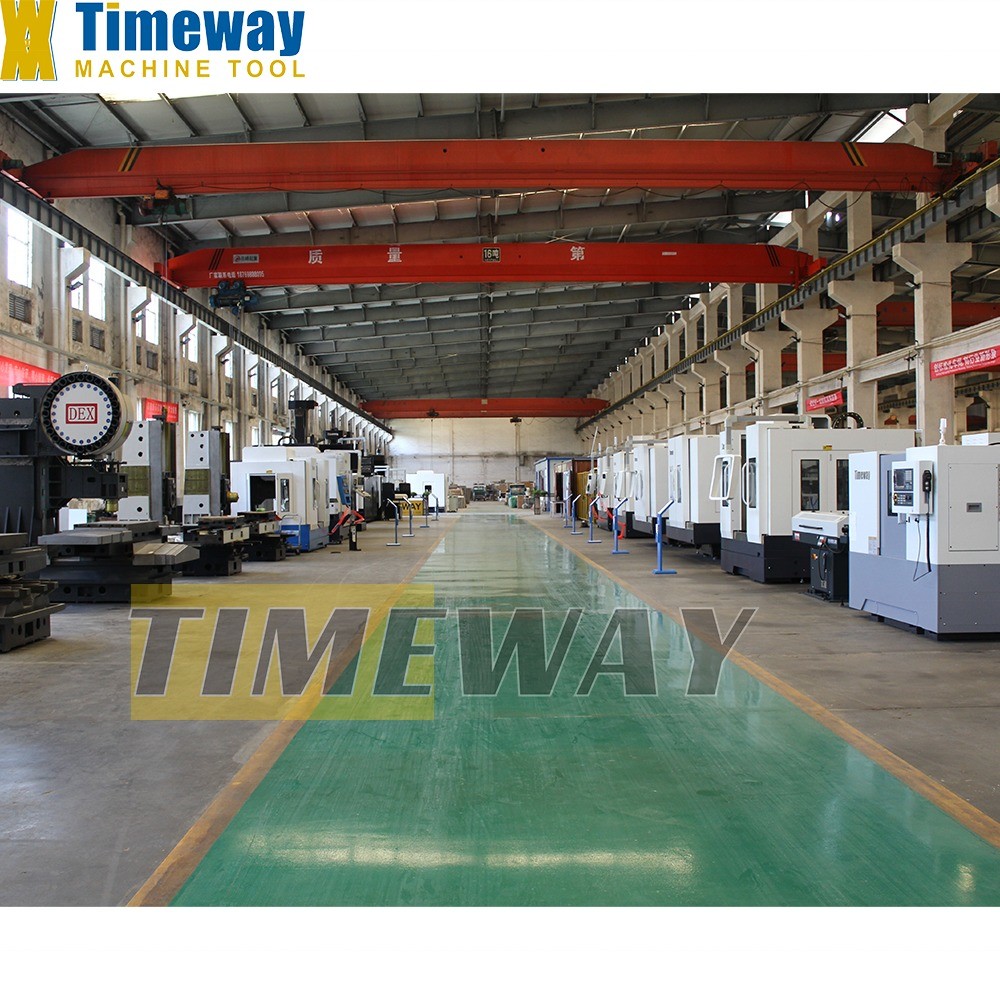

Factory Display：
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Construction Works Brake Lathe Machine C9350 C9350C for Disc and Drum Refurbishment
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
