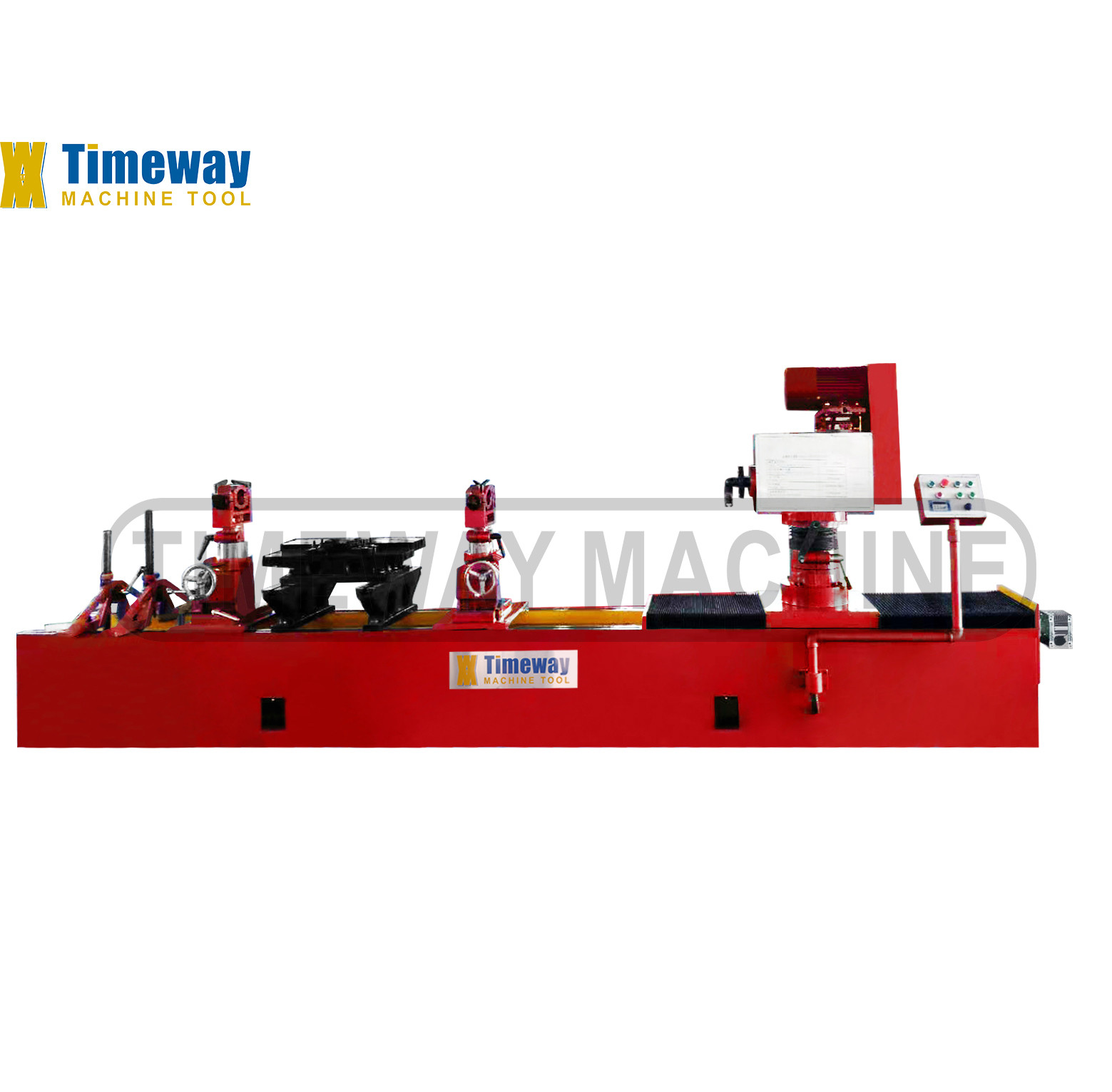

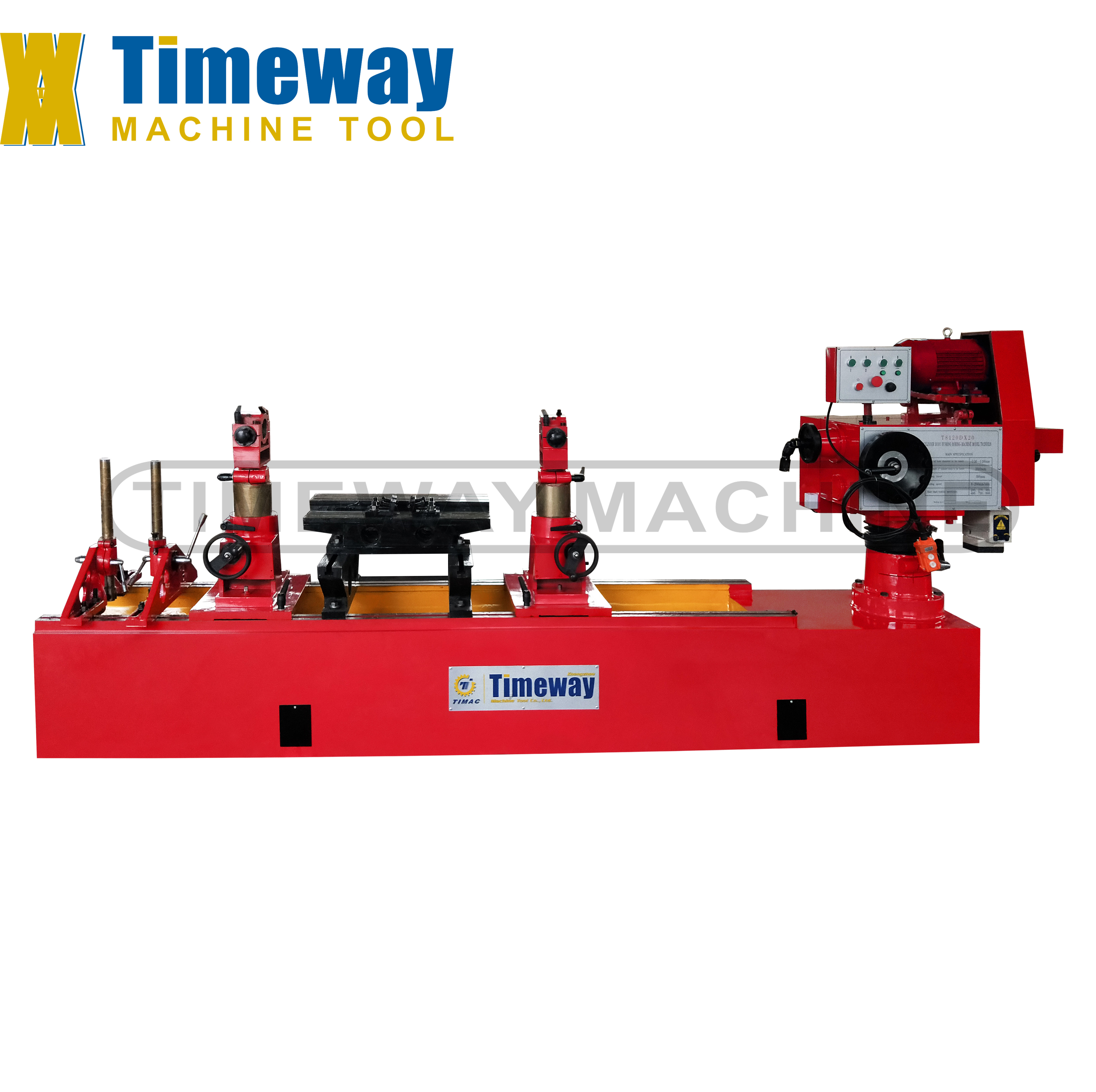

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E
Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E
Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E
Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E
Specifications
Type :
Universal
CNC or Not :
Normal
Condition :
New
Year :
2020
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
as request
Dimension(L*W*H) :
1700x1300x1800mm
Weight (KG) :
2100
Power (kW) :
1.5
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, Thailand, Tajikistan, Uzbekistan, Ukraine, Algeria, Indonesia, Germany
Applicable Industries :
Farms, Manufacturing Plant, Construction works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Engine, Gear, Pressure vessel, Gearbox, PLC, Pump
After-sales Service :
Engineers available to service machinery overseas
machine tool :
Machinery & Industry Equipment
Brand :
TIMAC
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support
Local Service Location :
Philippines, South Korea, Pakistan, Mexico, Chile, Morocco, Nigeria, Spain, Thailand, Kazakhstan, Canada, Russia, Peru
Certification :
CE, ISO
Packaging Details :
wooden case.
Port :
China port.
Supply Ability :
200 Set/Sets per Month
MOQ :
1 set
Price :
$4,120.00/sets 2-3 sets
Description
Model Unit T8120Ex20 T8125Ex25
Diameter of boring hole mm 36-200 22-250
Max.length of cylinder sleeve mm 2000 2500
Max.extending length of spindle mm 300 300
Spindle speed rpm 200-960 (stepless) 200-960 (stepless)
Spindle feed speed - 0-180 (stepless) 0-180 (stepless)
Distance between spindle axis to worktable mm 570-870 570-870
Main Motor power kw 1.5 1.5
Overall Dimension (LxWxH) mm 3910x650x1410 4410x650x1410
Net weight kg 2100 2200
Gross weight kg 2300 2400

Features:

1. This machine is mainly applied to bore and grind bearing holes (including copper quill and connecting-rod tile)on connecting-rod of gasoline and diesel engine in automobile,tractor and other power sources.

2. Customer also can carry out fine boring or grinding process to connecting-rod bearing seat of deformed workpiece, after grinding combining surface, to ecsure the parallism of tow center lines.

3. Equipped with various specialiged fixture, TM8216 can be used to complete fine boring and grinding process to piston pin hole, gas pump bearing hole and valve seat hole etc.

Packaging & Shipping

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E

Company Introduction

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E

Export Cases

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E

Exhibitions

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E

Customers Visited

Revolutionize Your Construction Works with Con-Rod Boring and Grinding Machine T8120E

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
