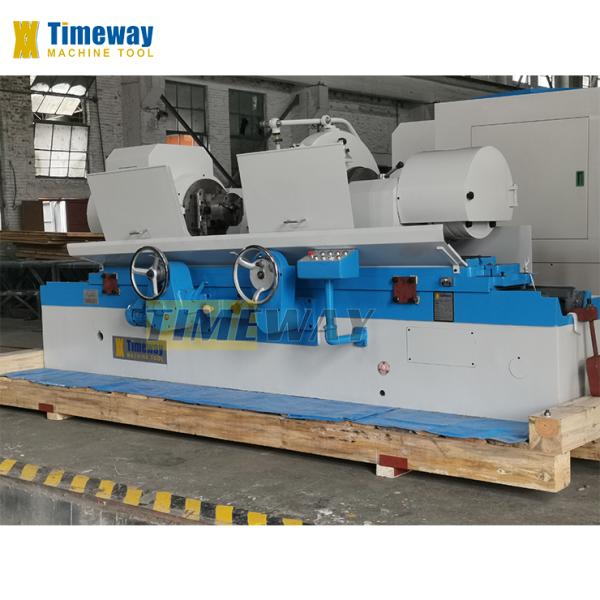

9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
Specifications
Type :
Universal
CNC or Not :
Normal
Condition :
New
Year :
2023
Place of Origin :
China
Brand Name :
Timeway
Voltage :
220V/380V 50Hz
Dimension(L*W*H) :
4166x2037x1584mm
Weight (KG) :
6000
Power (kW) :
9.82kw
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Showroom Location :
India, Viet Nam, Russia
Applicable Industries :
Manufacturing Plant, Construction works
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Max. swing diameter over table :
580
Max. work swing dia. x Max. length :
580*1600
Work dia. ground with steady rest :
30-110
Throw of crankshaft :
110
Max. work length ground: in 3-jaw chuck :
1400
Max. work length ground: between centers :
1600
Max. work weight :
120
Center height :
300
Work speed :
25,45,95
Max. cross movement :
185
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$18,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
Model
Unit
M8260
M8266
MQ8240A
Max. swing diameter over bed
mm
600
660
400
Max. length of workpiece (chucks)
mm
1830
1830
830
Between centers
mm
2000
2000
1000
Max. grinding diameter of crankshaft journal
mm
130
130
130
Min. grinding diameter of crankshaft journal
mm
30
30
30
Max. crankshaft crank radius
mm
110
120
80
Max. workpiece weight
kg
400
500
80
Grinding wheel diameter
mm
900/700
900/700
750
Wheel peripheral speed
m/s
35
35
35
Main motor power
kw
15
15
7.5
Machine weight
kg
11900
11900
5000
Machine dimensions (LxWxH)
mm
6000x2580x1750
6000x2580x1750
4115x2050x1500
Roundness
mm
0.005
0.005
0.005
Cylindricity
mm
0.008
0.008
0.008
Roughness (external/end)
um
Ra0.32/Ra0.8
Ra0.32/Ra0.8
Ra0.32/Ra0.8
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
3-jaw chuck
Wheel adapter
Grinding wheels & wheel extractor
Steady rest
Driving dog
Wheel dresser
Wheel balancing arbor
Vertical aligning stand
Horizontal aligning stand
End dresser
Diamond pen
Digital indicator
Centering device
Wheel balancing stand
Hanging measuring device
Why Choose Us
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
