Specifications
Type :
Universal
CNC or Not :
Normal
Condition :
New
Wheel Size(mm) :
750
Year :
new
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
According to customer's requirement, 220-600V
Dimension(L*W*H) :
4115x2050x1500
Weight (KG) :
5000
Power (kW) :
7.5
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, UAE, Viet Nam, Australia, South Korea, Russia, Canada, United States, Peru, Chile, Pakistan, Ukraine, Brazil, United Kingdom
Applicable Industries :
Construction works
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Color :
Customized Optional
Max. swing dia. over bed :
400mm
Max. length of workpiece(chucks) :
830mm
Between centers :
1000mm
Max. workpiece weight :
80kg
Main motor power :
7.5kw
Machine weight :
5000kg
Roughness :
0.005mm
Cylindricity :
0.008mm
Price :
$22,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
Products Description

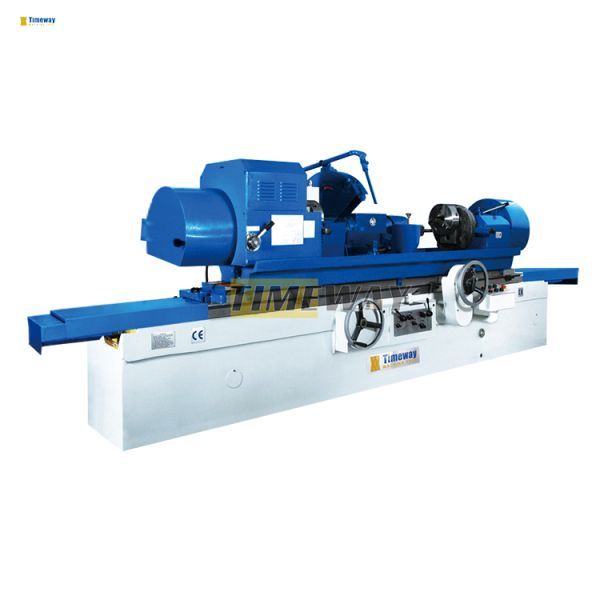

QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
- Crankshaft grinding machine is suitable for grinding cranks of engine crankshaft in automotive, tractor and diesel repair shops, and also can be used for general cylindrical grinding.

- Wheelhead cross rapid feed and table longitudinal movement all are driven by hydraulic.

- The machine tool set a safe interlock, when grinding crankshaft and wheelhead at grinding position, table can longitudinal move by only manual, don't hydraulic driven; when wheelhead at back position, table can longitudinal move by manual and hydrarulic.

- The grinder can realize grinding external cylindrical, table longitudinal feed by hydraulic and feed speed variable; wheelhead manual feed.

- The workpiece is clamped by centers or chucks, driven by the headstock motor, and manually ground.

- Longitudinal movement of table adopts the methods of manual or hydraulic movement.

- Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.

- The worktable and the grinding wheel adopt hydraulic and electric interlocking structure, which can ensure the operation safety regardless of adjustment or grinding due to operational errors.

- The wheelhead is equipped with a reliable protective cover.
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
Specification
Unit
QM-400
QM-600
QM-660
Max. swing dia. over bed
mm
400
600
660
Max. length of workpiece (chucks)
mm
830
1830
1830
Between centers
mm
1000
2000
2000
Max. grinding dia. of crankshaft journal
mm
130
130
130
Min. grinding dia. of crankshaft journal
mm
30
30
30
Max. crankshaft crank radius
mm
80
110
120
Max. workpiece weight
kg
80
400
500
Grinding wheel diameter
m/s

35

35

35
Wheel peripheral speed
rpm

7.5

15

15
Main motor power
kw
100
100
100
Machine weight
kg

5000

11900

11900
Machine dimensions(LxMxH)
mm
4115x2050x1500
6000x2580x1750
6000x2580x1750
Cylindricity
mm
0.008
0.008
0.008
Roughness(external/end)
um
Ra0.32/Ra0.8
Ra0.32/Ra0.8
Ra0.32/Ra0.8
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
· Bridge plate
· Grinding wheel
· Steady rest
· Wheel dresser
· Vertical stand
· Horizontal stand

· End dresser
· Measuring device
· Digital readout
· Center device
· Balancing stand
· Polisher
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
Why Choose Us
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
