Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Specifications
Place of Origin :
China
Brand Name :
Timeway
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Warranty :
1 Year
Key Selling Points :
Competitive Price
Weight (KG) :
1700
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Showroom Location :
Canada, Turkey, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, South Korea, Uzbekistan
Product name :
Cylinder Boring Machine
Model :
B150
After-sales Service Provided :
Online Support
Machine Type :
Vertical Boring Machine
Boring diameter :
31-150 mm
Max. boring depth :
350 mm
Max. milling width :
300 mm
Distance from spindle center to column :
335 mm
Table size :
400x1000 mm
Main motor power :
1.5/1.2 kw
Packaging Details :
Wooden cases(can be fumigated)
Supply Ability :
150 Set/Sets per Month
Price :
$16,380.00/sets 1-2 sets
MOQ :
1 set
Description

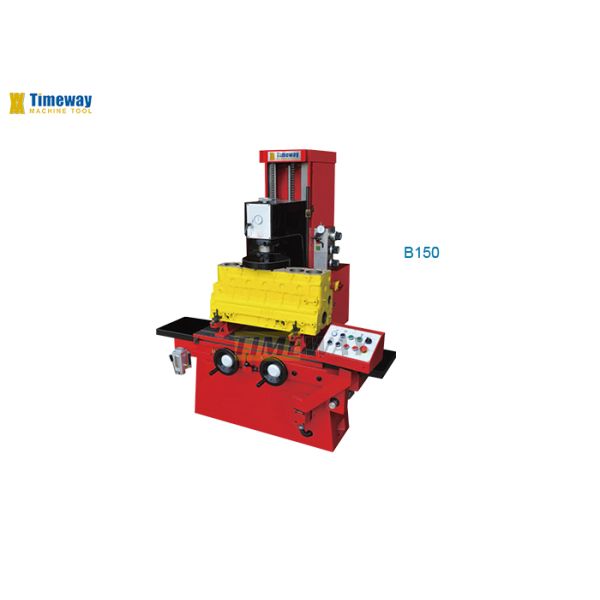

Cylinder Boring Machine B150
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
* B150: boring cylinder hole * BM150: boring cylinder hole & milling cylinder surface
* Precision, fast operation and reliability are the main features of cylinder boring machines. The two models, dimensionally and structurally alike, only difference in the table drive system manual traverse on the B150 and power traverse on the BM150.
Products Description
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry
Specification
Unit
B150
Boring diameter
mm
31-150
Max. boring depth
mm
350
Max. milling width
mm
300
Max. milling area
mm
-
Spindle travel
mm
530
Distance from spindle center to column
mm
335
Table size
mm
400x1000
Table longitudinal travel
mm
830
Table cross travel
mm
60
Spindle speed
rpm
105, 210, 280, 390, 550, 780
Spindle feed speed per revolution
mm/r
0.06, 0.12, 0.18
Spindle rapid feed speed
mm/min
1200
Table feed speed
mm/min
-
Main motor power
kw
1.5/1.2
Spindle lifting motor power
kw
0.09
Table feed motor power
kw
-
Machine dimensions (LxWxH)
mm
2570 x 1175 x1920
Packing dimensions (LxWxH)
mm
1710 x 1450 x2200
N.W/G.W
kg
1700/1950
Max. Boring Depth 350mm B Series Engine Cylinder Boring Machine for Industry

▪ Φ52 Boring spindle ▪ Φ60 Boring spindle ▪ Tool measuring device ▪ Tools holder and boring cutter ▪ Parallel block ▪ Operator manual in English

▪ Fixture For V-engine
▪ Fixture For Motorcycle cylinder
▪ Universal Fixture For V-engine
▪ Universal Fixture For Head
