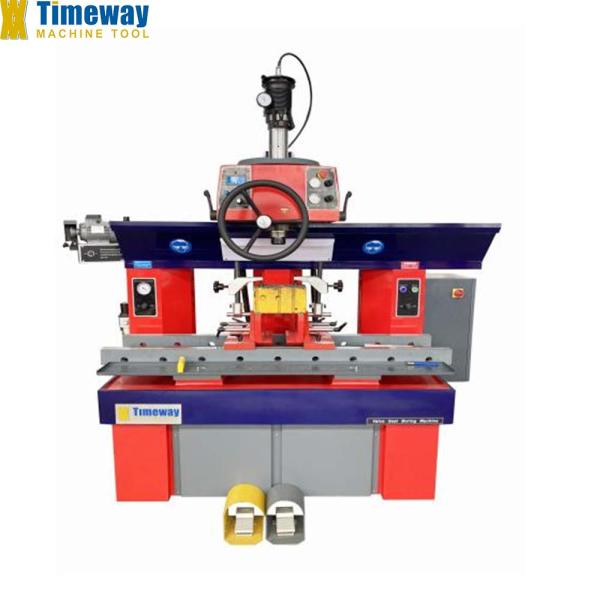

Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Specifications
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Gear
Warranty :
1 Year
Key Selling Points :
Competitive Price
Weight (KG) :
1750
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, Italy, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Mexico, Thailand, Argentina, South Korea, Uzbekistan, Tajikistan, Japan, Australia
Product name :
Valve Seat Boring Machine
Application :
Machine Accessory
Feature :
High Precision
Type of drive system :
Air/Electric
Max. boring dia. :
14-120 mm
Power of spindle :
2.2kw
Spindle speed :
20-1000rpm
Spindle travel :
200mm
Required rated air pressure :
6 Bar/87 PSI
Required max. air flow :
300 L/Min
Price :
$15,600.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Product Description
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Features:
--Valve Seat Boring Machine Model: VS50, VS70,VS90, VS120 with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats.
--Triple air-float patented centering system and powerful spindle with built-in motor.
--Designed for the valve seats from the smallest to the bigger diameter.
--This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 14mm to 120mm.
--To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Specification
SPECIFICATIN
VS50
VS70
VS90
VS120
Type of drive system
Air / Electric
Air / Electric
Air / Electric
Air / Electric
Max. length of cylinder head
unlimited
unlimited
unlimited
unlimited
Max. width of cylinder head
500 mm
500 mm
500 mm
500 mm
Max. height of cylinder head
450 mm
450 mm
450 mm
450 mm
Clamper rotary angle
45° / -15°
45° / -15°
45° / -15°
45° / -15°
Max. boring dia.
16 – 50 mm
14 – 70 mm
14 – 90 mm
14 – 120 mm
Work head longitudinal floating travel
900 mm
930 mm
1000 mm
1300 mm
Work head cross floating travel
40 mm
40 mm
40 mm
40 mm
Sphere – cylinder travel
9 mm
9 mm
9 mm
9 mm
Power of spindle
1.5 kw
1.8 kw
2.2 kw
2.2 kw
Spindle speed
100-1200rpm
20-1000rpm
20-1000rpm
20-1000rpm
Spindle travel
200mm
200mm
200mm
200mm
Max. spindle incination
5.5°
5.5°
5.5°
5.5°
Electric supply
380V/50HZ/3PH or 220V/60HZ/3PH
380V/50HZ/3PH or 220V/60HZ/3PH
Required rated air pressure
6 Bar / 87 PSI
6 Bar / 87 PSI
6 Bar / 87 PSI
6 Bar / 87 PSI
Required max. air flow
300 L / Min
300 L / Min
300 L / Min
300 L / Min
N.W.
1260kg
1550kg
1680kg
1750kg
Machine dimensions( LxWxH)
1450x1050x2170mm
1750x1050x2170mm
1750x1150x2200mm
2060x1150x2200mm
Client feedback
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Factory Display：
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
