3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
Specifications
Table Travel (X) (mm) :
1100 mm
Table Travel (Y) (mm) :
850 mm
Table Travel (Z) (mm) :
250 mm
Number of Axes :
2
Travel (W-axis) (mm) :
200 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Gearbox, Pressure vessel
No. of Spindles :
Twin
Range of Spindle Speed(r.p.m) :
840 r.p.m
Spindle Motor Power(kW) :
3
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC, TIMEWAY
Voltage :
220/380V
Dimension(L*W*H) :
2210x1600x2340mm
Weight (T) :
3.8 T
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
Canada, Turkey, Italy, Peru, Chile, UAE, Algeria, Romania
Product name :
Vertical Boring Machine
Brand :
TIMAC
Max. boring diameter :
200mm
Max. boring depth :
500mm
Spindle travel :
710mm
Table longitudinal travel :
900mm
Table cross travel :
100mm
N.W./G.W. :
3300/3800kg
Packaging Details :
WOODEN CASE/PLYWOOD CASE
Port :
CHINA PORT
Supply Ability :
500 Set/Sets per Month
Price :
$19,500.00/sets 1-2 sets
MOQ :
1 set
Description

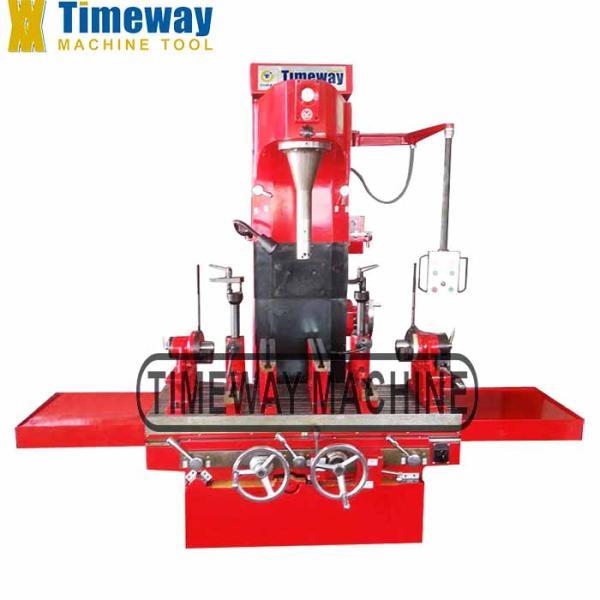

Vertical Boring Machine

The B200B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.

The BM200C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling, reaming.

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

Parameter

Model B200B BM200C
Max. boring diameter Φ200 mm Φ200 mm
Max. boring depth 500 mm 500 mm
Milling cutter head diamenter - 250 mm
Max. milling area (L×W) - 850×250 mm
Spindle speed range 53-840 r/min
Spindle feed range 0.05-0.20 mm/r
Spindle travel 710mm
Distance from spindle axis to carriage vertical plane 315mm
Table longitudinal travel 900mm 1100 mm
Table longitudinal feed speed - 54,108 mm/min
Table longitudinal quick move speed - 1500 mm/min
Table cross travel 100 mm
Boring dimension accuracy IT7
Milling dimension accuracy - IT8
Roundness 0.005
Cylindricity 0.01/300
Boring surface roughness Ra1.6
Milling surface roughness - Ra1.6-3.2
Overall dimensions (L×W×H) 2210×1600×2340 mm 2610×1600×2350 mm
Packing dimensions (L×W×H) 1850×1840×2230 mm
N.W./G.W. 3300/3800 kg 3600/4000 kg

Packaging & Shipping

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

Company Introduction

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

Export Cases

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

Exhibitions

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

Customers Visited

3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
