Specifications
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty :
1 Year
Key Selling Points :
High-accuracy
Weight (KG) :
600
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Russia, Morocco, UAE, Romania
Brand :
TIAMC
Weight :
600 kg
Product name :
Block Pressure Tester
Style :
Fashion
Machine Type :
cylinder head pressure test
Name :
cylinder head pressure testing machine
Type :
pressure test machine
key selling print :
competitive price
color :
Customer Choose
Key word :
cylinder head pressure tester machine
Packaging Details :
wooden case / plywood case
Port :
China port
Supply Ability :
300 Set/Sets per Month
Price :
$5,060.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

Pressure Tester

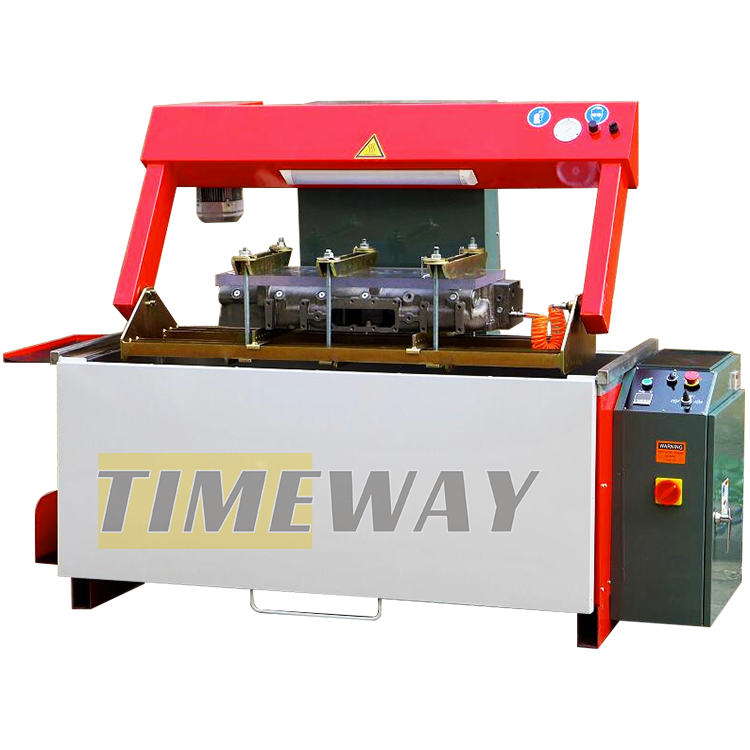

The TPT1600 test bench is designed to test the pressure of cylinder head and cylinder block coolant circuits.
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology

Feature：

* Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
* Quick and easy clamping system allowing tests at a pressure of the 4 to 5 bar.
* 360° electric powered roll-over fixture. 360°
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control. Low voltage:24 V operating control.
* Electronic adjustable thermostat.
* Heating programmer daily or weekly.
Specification
Model
Unit
TPT1600
TPT1600L
TPT1700XL
Length
mm/inch
1250/49
1350/53.15
1350/53.15
Width
mm/inch
400/15.74
425/16.73
460/18.11
Height
mm/inch
300/11.81
300/11.81
410/16.14
Height elements
kw
2×4.5
2×4.5
2×4.5
Hydraulic hoist
kw
0.75
0.75
0.75
Gear-motor
kw
0.25
0.25
0.25
Rotationalspeed
Tr/min
4
4
4
Up and down travel time
mm/inch in 10 sec
600/23.62
600/23.62
620/24.41
Thermostat
ºC
0-90
0-90
0-90
Power supply
3×220V-AC-60Hz /
3×380V-AC-50Hz
3×220V-AC-60Hz /
3×380V-AC-50Hz
3×220V-AC-60Hz /
3×380V-AC-50Hz
Net weight
kg/1bs
600/1324
600/1324
650/1434
Length
mm/inch
2000/78.75
2100/82.68
2100/82.68
Width
mm/inch
1050/41.34
1050/41.34
1140/44.88
Height
mm/inch
1700/66.93
1700/67.00
1775/69.83
Client feedback
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Factory Display：
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
