500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
500mm Travel Vertical Boring Milling Machine for Precise Drilling
Specifications
Table Size (mm) :
500x1250
Table Travel (X) (mm) :
1500 mm
Table Travel (Y) (mm) :
200 mm
Table Travel (Z) (mm) :
350 mm
Number of Axes :
2
Travel (W-axis) (mm) :
500 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Range of Spindle Speed(r.p.m) :
120 r.p.m
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Place of Origin :
China
Voltage :
220v/380v
Weight (T) :
3.8 T
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Showroom Location :
Mexico, Russia, Spain, Thailand, Chile, Algeria, Romania
Product name :
Vertical Boring Milling Machine
Style :
Fashion
Max. drilling & reaming diameter :
30mm
Packaging Details :
WOODEN CASE/PLYWOOD CASE
Port :
CHINA PORT
Supply Ability :
500 Set/Sets per Month
Price :
$27,500.00/sets 1-2 sets
MOQ :
1 set
Description

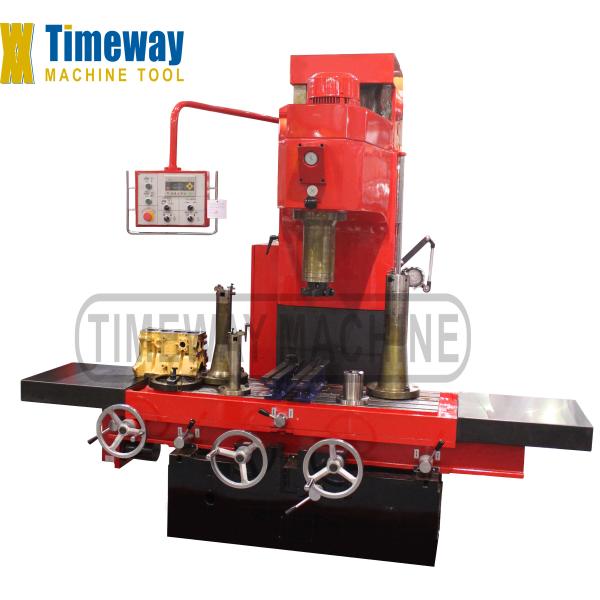

Vertical Boring Milling Machine

500mm Travel Vertical Boring Milling Machine for Precise Drilling500mm Travel Vertical Boring Milling Machine for Precise Drilling500mm Travel Vertical Boring Milling Machine for Precise Drilling

This serial model of Vertical Boring Milling Machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring, surface milling of other workpieces.

Model

TX170A

TX200A

TX250A

Max. boring diameter

Φ170 mm

Φ200 mm

Φ250 mm

Max. boring depth

400 mm

500 mm

500 mm

Max. milling area

400x1000 mm

Max. drilling & reaming diameter

Φ30 mm

Spindle speed

120-860 r/min

Feeding of the spindle

14-900 mm/min

Rapid moving speed of the spindle

1000 mm/min

Spindle travel

700 mm

Distance between spindle end face and table

0-700 mm

Distance between spindle axis and carriage vertical plane

375 mm

Feed of work table longitudinal

32-1350 mm/min

Rapid moving speed of the table longitudinal travel

32-1350 mm/min

Max longitudinal travel of working table

1500 mm

Max cross travel of the working table

200 mm

Working table size (W×L)

500×1250 mm

500×1500 mm

Main motor

5.5 Kw

Processing roughness

Boring

Ra 2.5

Milling

Ra 3.2

Overall dimensions (L×W×H)

2600×1630×2300 mm

Packing dimensions (L×W×H)

2250×1900×2280 mm

N.W./G.W.

3300/3600 kg

3500/3800 kg

Packaging & Shipping

500mm Travel Vertical Boring Milling Machine for Precise Drilling

Company Introduction

500mm Travel Vertical Boring Milling Machine for Precise Drilling

Export Cases

500mm Travel Vertical Boring Milling Machine for Precise Drilling

Exhibitions

500mm Travel Vertical Boring Milling Machine for Precise Drilling

Customers Visited

500mm Travel Vertical Boring Milling Machine for Precise Drilling

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
