Specifications
Table Size (mm) :
Other
Table Travel (X) (mm) :
180 mm
Table Travel (Y) (mm) :
380 mm
Table Travel (Z) (mm) :
0 mm
Number of Axes :
2
Travel (W-axis) (mm) :
320 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Range of Spindle Speed(r.p.m) :
1000 r.p.m
Spindle Motor Power(kW) :
1.1
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Voltage :
220V/380V
Dimension(L*W*H) :
1400x930x2095mm
Weight (T) :
1.3 T
Warranty :
1 Year
Key Selling Points :
Energy saving
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
Kenya, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan
Product name :
vertical fine boring machine
Boring dia. :
39-180 mm
Style :
Fashion
Max. boring depth :
380 mm
Spindle feed :
0.09 mm/r
Machine weight :
1350 kg
After-sales Service Provided :
Online support
After Warranty Service :
Video technical support
Local Service Location :
United States
Certification :
ISO CE
Packaging Details :
Plywood case
Port :
China port
Supply Ability :
200 Set/Sets per Month
Price :
$7,880.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

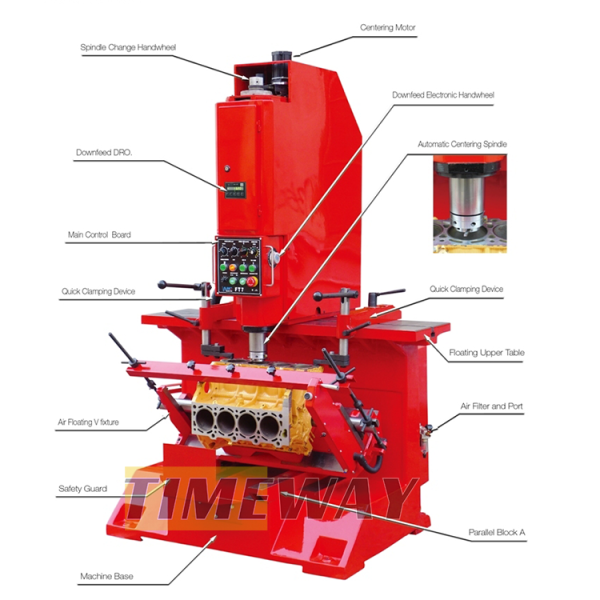

Fine Boring Machine

* To introduce: This machine is mainly used for boring engine's cylinder of automobile and tractor to retreat it. It is also applicable for boring cylinder of V engine, and other mechanical part's holes such as cylinder sleeve of single cylinder, if some suitable fixtures are equipped.
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring

Feature

* Mainly used for repairing automobile and tractor cylinders. * The spindle of FT7 can be moved freely above the floating table, quickly move to the top of the cylinder you will work with. * 4-point automatic centering system, make your work fast and precision. * Various of the tool holder fit this machine work from 39-180mm. * Together with the air floating V- Fixture make this machine available to work with 60° and 45° V-type cylinder.
Specification
Model
Unit
FT7
Boring diameter
mm
39-180
Max. boring depth
mm
380
Spindle speed
rpm
50-1000 (stepless)
Spindle feed speed
mm/min
15-60 (stepless)
Spindle rapid feed speed
mm/min
100-960 (stepless)
Main motor power
kw
1.1
Feed motor power
kw
0.4
Positioning motor power
kw
0.15
Working pressure
Mpa
0.6≤P≤1
Machine dimensions (LxWxH)
mm
1400x930x2095
Machine weight
kg
1350
Centering range of centering rack
mm
39-54, 53-82, 81-155, 130-200
Spindle 38mm
mm
39-53 (optional)
Spindle 52mm
mm
53-82
Spindle 80mm
mm
81-155
Spindle 120mm
mm
121-180 (optional)
Client feedback
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Factory Display：
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
