Specifications
Type :
VERTICAL
Max. Length of Workpiece (mm) :
1600
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
8000
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
1030 mm
Travel (Z Axis)(mm) :
1000 mm
Positioning Accuracy (mm) :
±0.002
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
China
Dimension(L*W*H) :
5510*3925*4600mm
Brand Name :
Timac/Timeway
Model Number :
VLK1600E
Voltage :
380V/420V/440V
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
15000
Warranty :
1 Year, 1-year
Key Selling Points :
Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, Long Service Life, Easy to Operate, Flexible Manufacturing, Digital
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
2 - 200 r.p.m
Travel (Y Axis)(mm) :
1600 mm
Spindle Taper :
ISO40, BT40, BT50
Cutting torque :
17.5 N.m
Rapid Feed Speed(mm/min) :
0.1 - 2000 mm/min
Feed Speed(mm/min) :
0.1 - 500 mm/min
Min. Time of Tool Change(s) :
0.7
CNC or Not :
CNC Lathe Machine
Product name :
Single Column CNC Vertical Lathe Mechine
Product type :
Vertical CNC Machine
Model :
VLK1600E
Max.swing diameter :
1600mm
Max. turning diameter :
1600mm
Max. height :
1400mm
loading capacity :
8000kg
Main motor power :
37kw
Price :
$12,000.00/pieces 1-2 pieces
MOQ :
1 set
Description

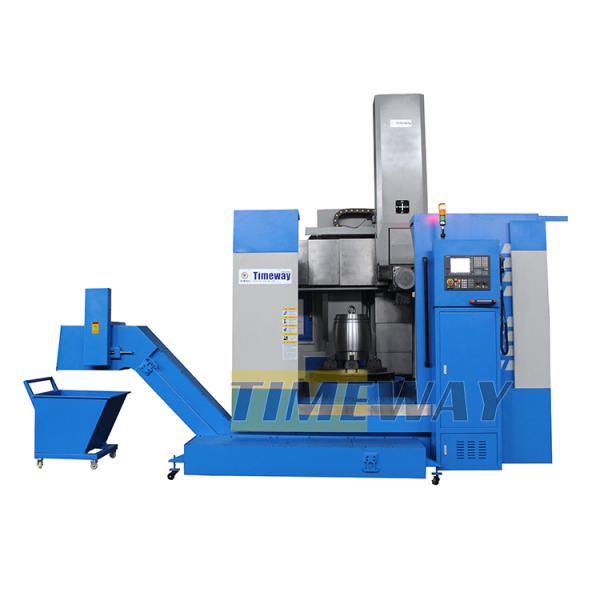

Products Description
Single Column CNC Vertical Lathe
VLK800E VLK1250E VLK1600E VLK2000E

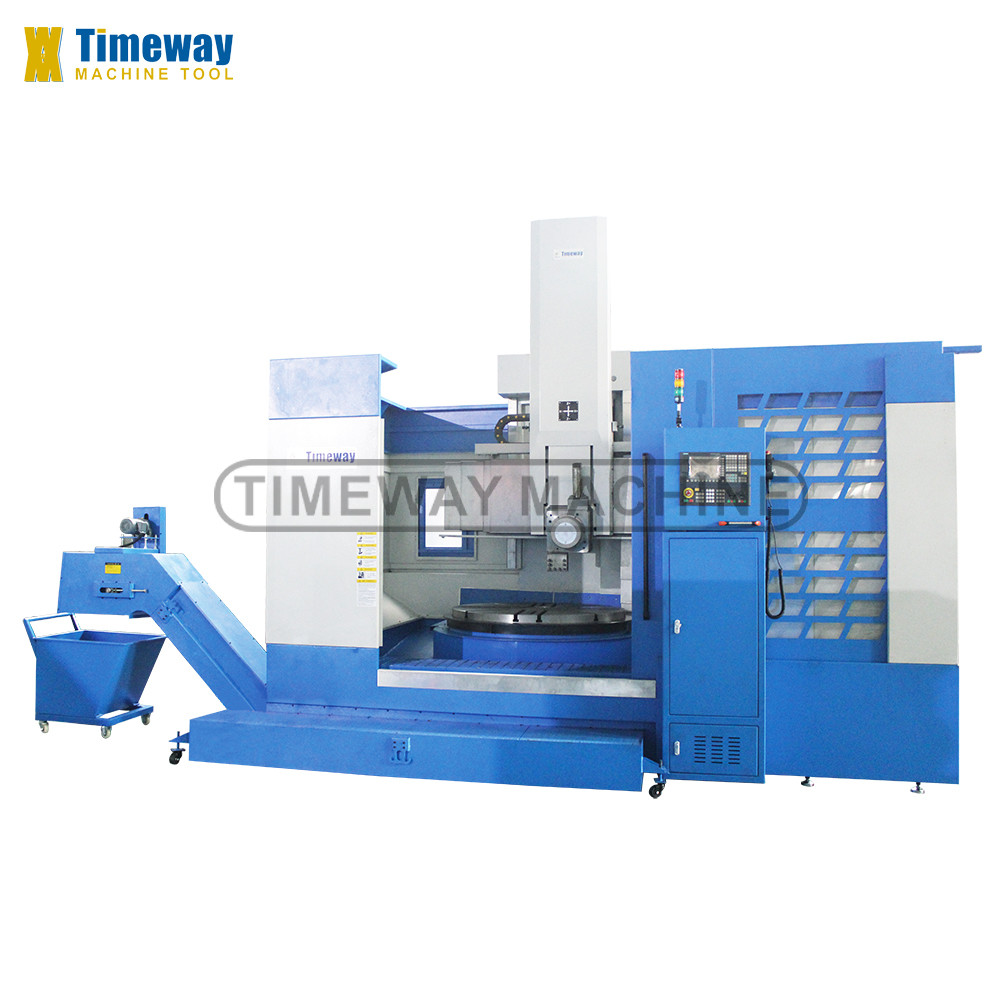

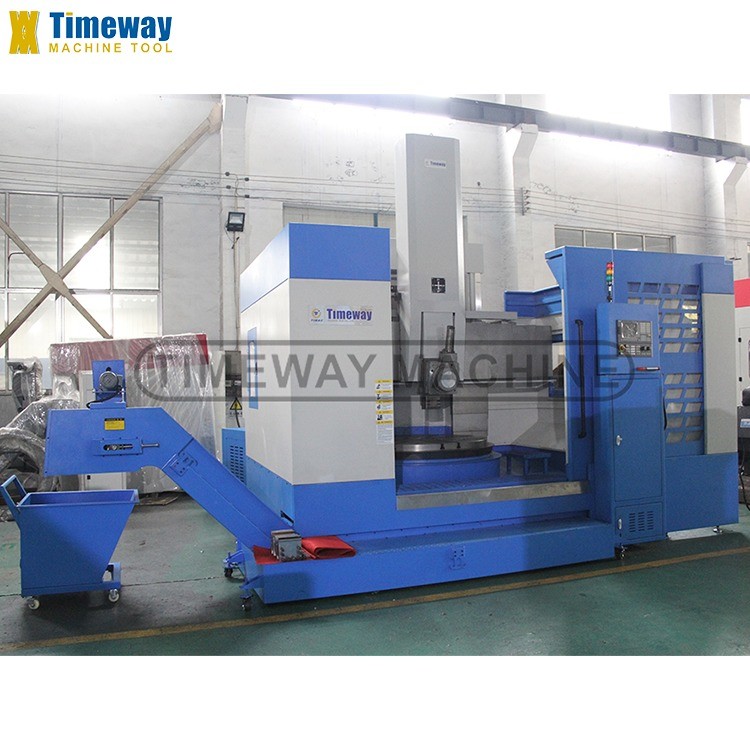

High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Machine Summary
* The machine is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability.
* The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.
Accessories
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
* Automatic lubrication system
* Full eclosed shield
* Electrical cabinet with air condition
* Precise oil cooler
* SIEMENS 808D
* Automatic chip removal(side removal)
* SIEMENS 828D
* FANUC 0i-TF
* special fixture
Specification
Specifications
Unit
VLK800E
VLK1250E
VLK1600E
VLK2000E
Max. swing diameter
mm
950
1250
1600
2000
Max. turning diameter
mm
800
1250
1600
2000
Max. height of workpiece
mm
800
1000
1000
1250
Max. weight of workpiece
kg
2000
5000
8000
12000
Main motor power
kw
22
22
30
37
Worktable diameter
mm
800
1010
1400
1800
Max. torque of worktable
KN.m
10
17.5
25
32
Worktable speed range
rpm
2-320
1.25-200
1-160
4-125
Number of tool station
pcs
4
4
4
4
Tool shank section of external turning tool
mm
32x40
32x40
32x40
32x40
Drive type
-
Electric
Electric
Electric
Electric
X-axis ball screw size (dia. x screw pitch)
mm
50x10
50x10
50x10
50x10
Z-axis ball screw size (dia. x screw pitch)
mm
50x10
50x10
50x10
50x10
X-axis travel
mm
-20~550
-20~800
-20~1030
-20~1150
Z-axis travel
mm
650
650
800
800
Feed range(X/Z)
mm
0.1-500
0.1-500
0.1-500
0.1-500
Rapid feed speed
mm/min
2000
2000
2000
2000
CNC system
-
SIEMENS 808D
SIEMENS 808D
SIEMENS 808D
SIEMENS 808D
Servo motor torque(X/Z)
N.m
11/11
11/11
15/11
15/11
Power capacity
Kva
30
37
45
52
Machine net weight
kg
8500
11000
14500
18500
Machine dimension (LxWxH)
cm
430x238x429
478x257x440
563x301x466
580x368x494
Chip conveyor
-
Chain type
Chain type
Chain type
Chain type
Standard
-
Automatic lubrication system, Full closed guard, air conditioner, Oil cooler
Optional
-
SIEMENS 828D, FANUC 0i-TF, special fixture
Machine Details


1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.

High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

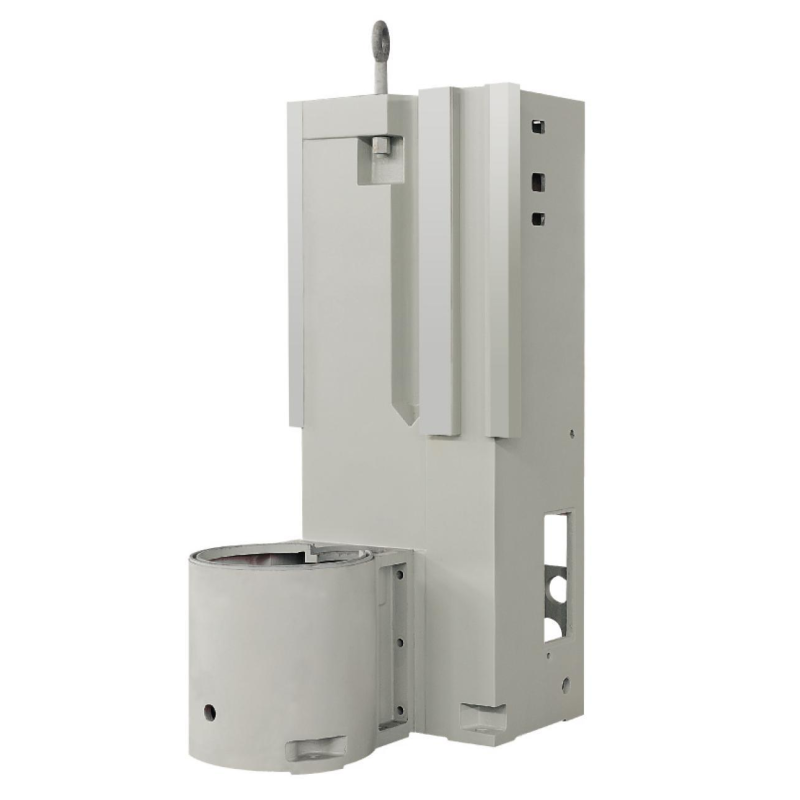

Column

The column adopts the optimization design of
box-type structure and reasonable layout stiffener,
so as to realize the good thermal stability, high
strength and high rigidity. The column guideway
adopts grinding after quenching, to improve wear
resistance and prolong service life. The guideways
adopt stainless steel sealing cover for protection
and reduce the corrosion rate.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

Worktable Base

The worktable base adopts high strength and high
rigid cast iron material, to improve stability and
absorb vibration. Unique thermal symmetric
structure, overcome the spindle temperature rise
effect on machining accuracy.
The spindle is equipped with spindle encoder, to
realize constant linear speed cutting.

High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

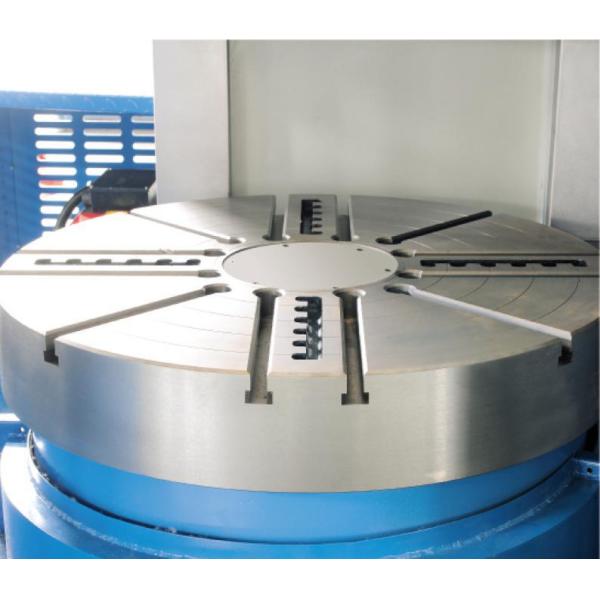

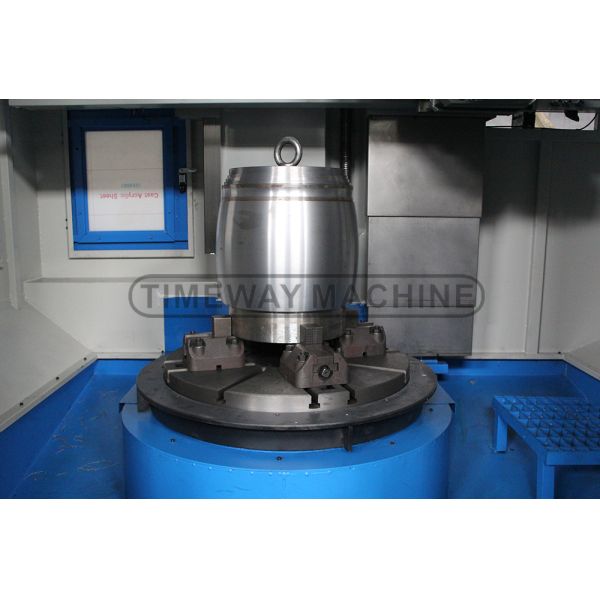

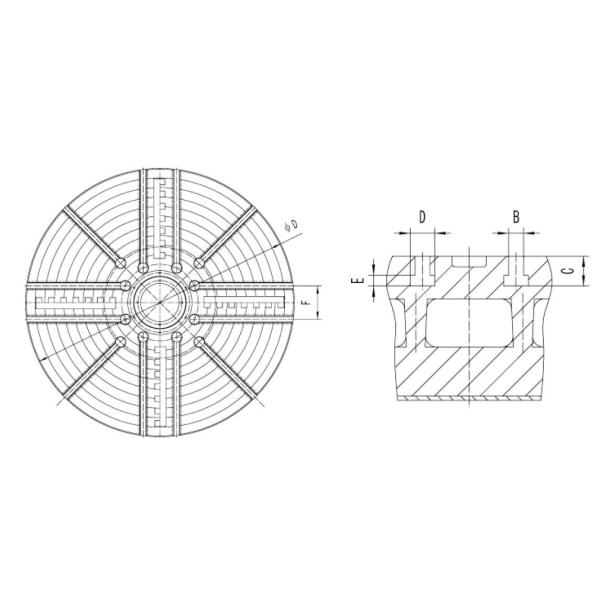

Worktable

The worktable adopts high strength and high rigid cast iron material, to improve stability and absorb vibration.
Worktable and worktable base and motor separation,
relying on the V-type belt drive, max. limit reduces
the vibration of the motor heat directly affect the
machining accuracy.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

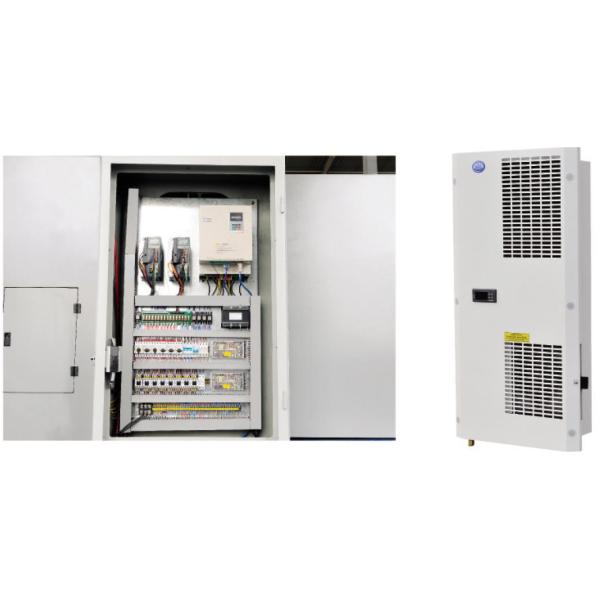

Electrical Cabinet

Electrical cabinet placed directly within the column, so the structure is more compact, save space. Beautiful appearance, wire marking clear and complete, wiring and tidy; The connection of the electrical cabinet to bed adopt the special cable connection.
Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

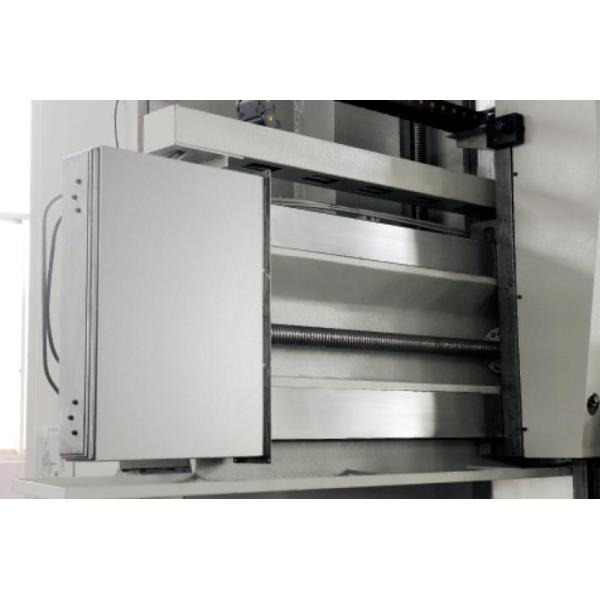

Beam

The beam guideway has very high wear resistance after
quenching and grinding, so as to guarantee long-term stability and high processing accuracy.
Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient.
Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

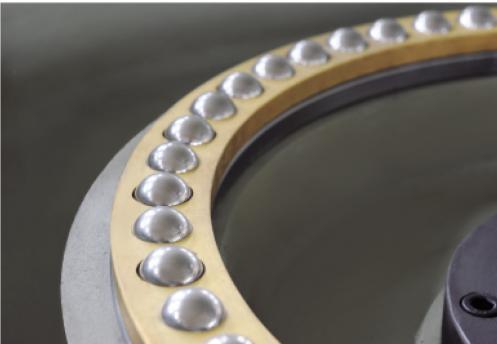

Spindle Unit

Worktable uses integrated, high rigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

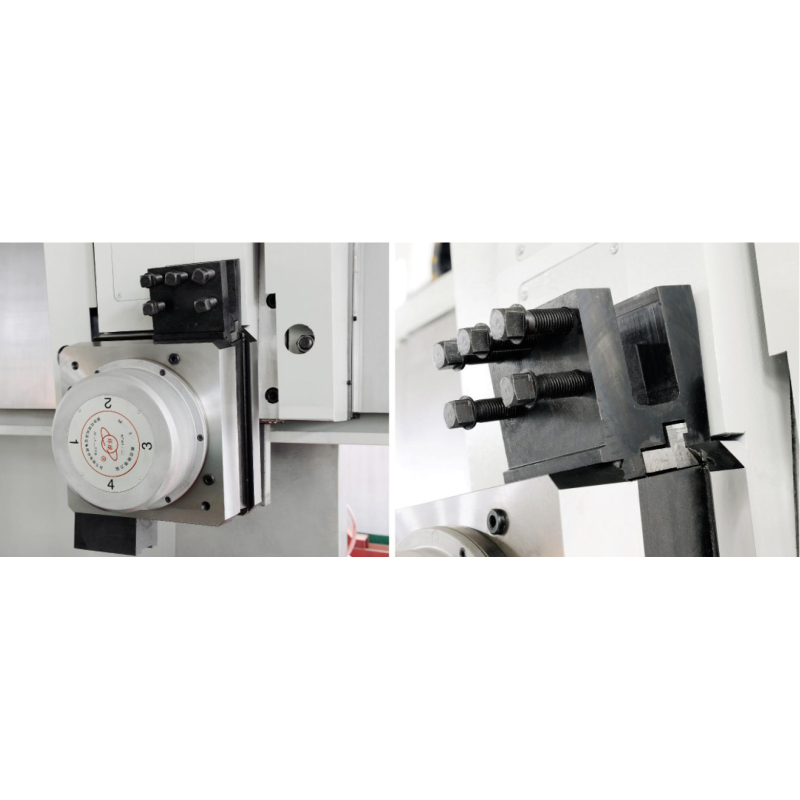

Four station electrical tool-post
High positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder,more accurate positioning, greater clamping force.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

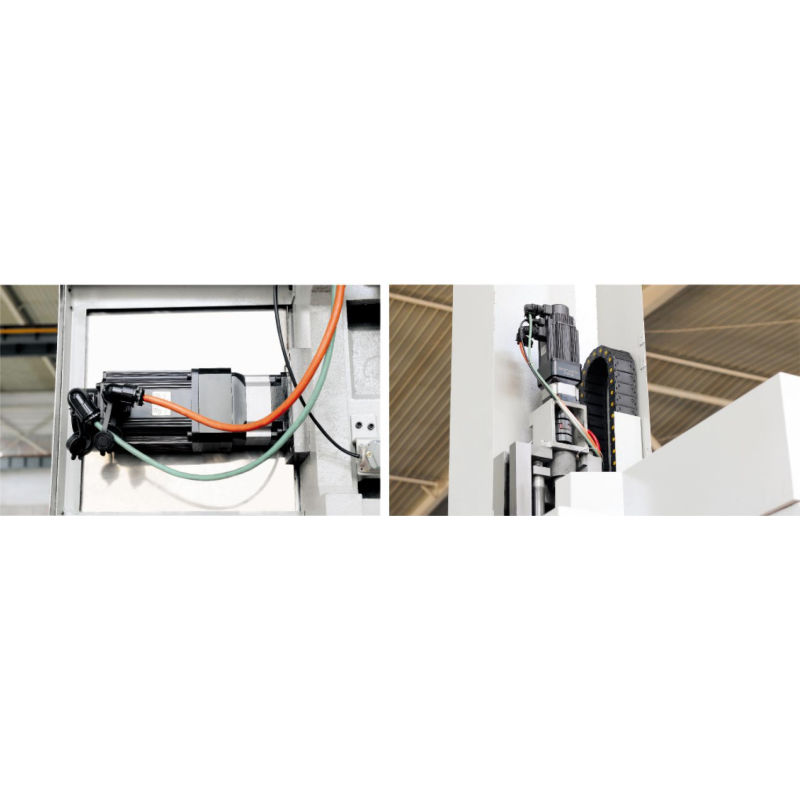

Feed Unit
Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
===================================

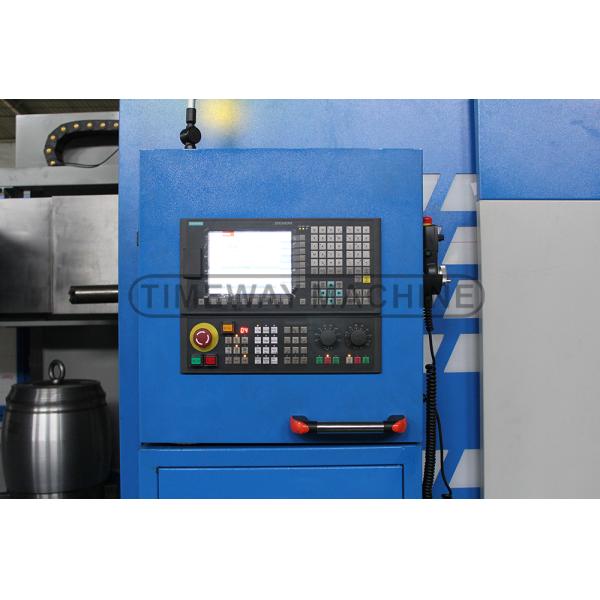

>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
===================================

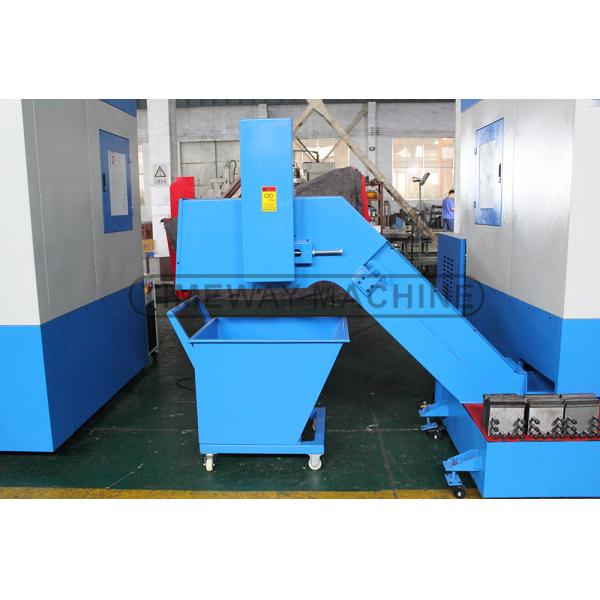

>> According to special requirements, the whole machine cover, chip conveyor.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

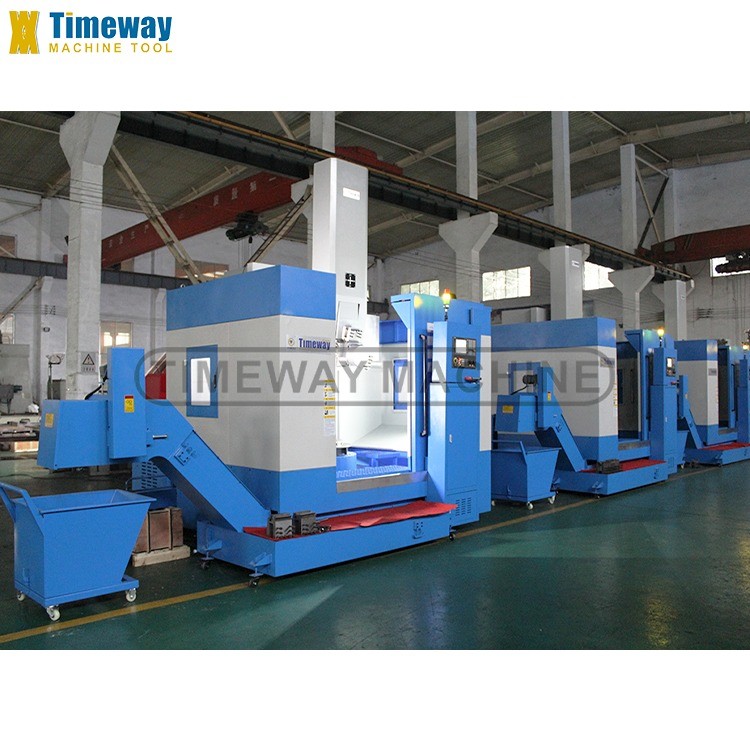

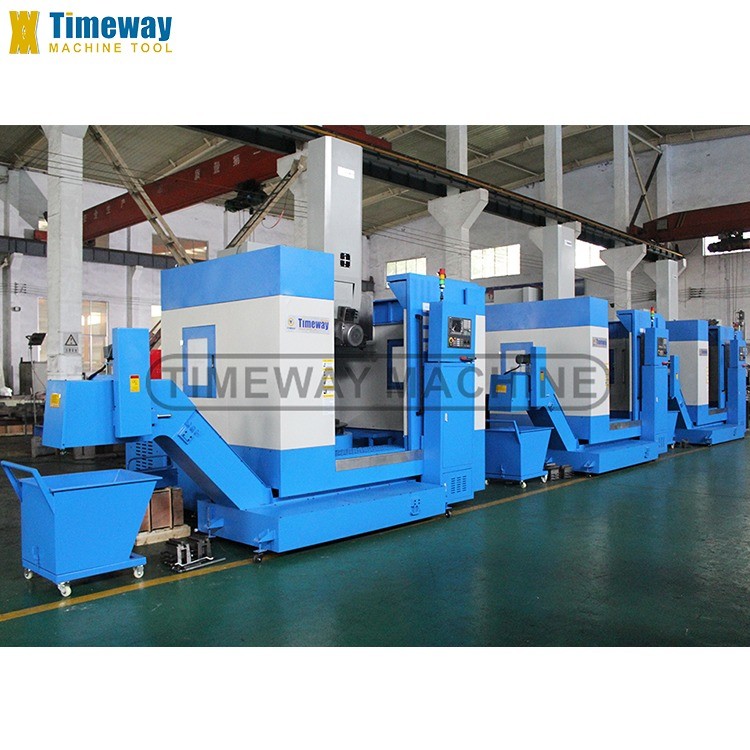

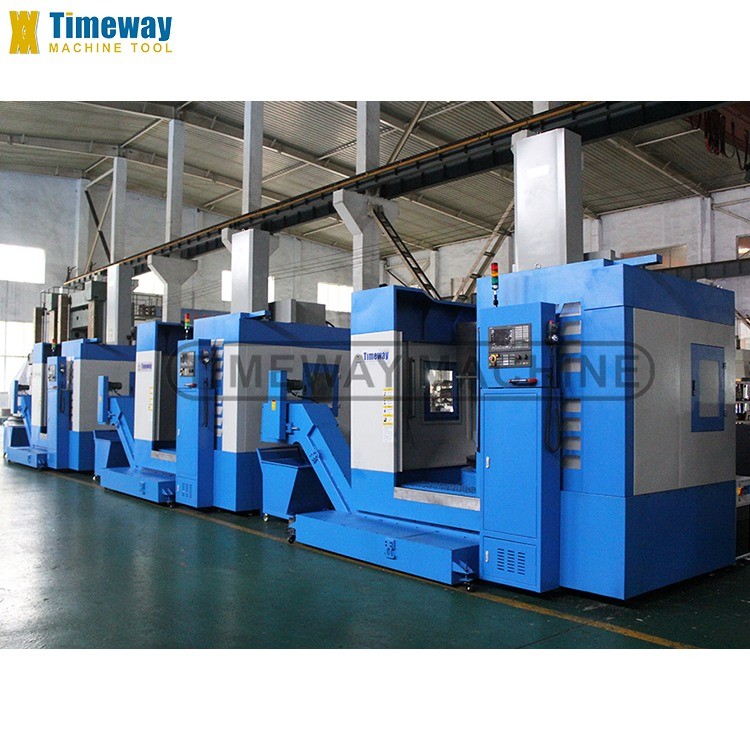

Factory Display：
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
