Specifications
Type :
VERTICAL
Max. Length of Workpiece (mm) :
1250
Machining Capacity :
Medium Duty
Width of bed (mm) :
1010 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
800 mm
Travel (Z Axis)(mm) :
650 mm
Place of Origin :
Henan, China
Dimension(L*W*H) :
5200*3250*4380
Brand Name :
Timeway/TIMAC
Model Number :
VLK1250E
CNC Control System :
Siemens
Tool Post Stations :
4
Weight (KG) :
12000
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
CNC Vertical Lathe
Machine Type :
Vertical Lathe
After-sales Service Provided :
1 Year
Model :
VLK1250E
Color :
Customers' Demands
Max. Swing Diameter :
1250mm
Max. turning diameter :
1250mm
Max. height of workpiece :
1000mm
Max. weight of workpiece :
5000kg
Main motor power :
30kw
Condition :
New
Toolpost Brand :
Hydex
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Food & Beverage Shops
Showroom Location :
France, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Russia, Kenya, South Korea, Algeria, Nigeria
Core Components :
Bearing, Motor, Pump, Gear, PLC, Engine
Max. Spindle Speed (r.p.m) :
250 r.p.m
Max. Turned Length (mm) :
1250
Marketing Type :
Hot Product 2022
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$152,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

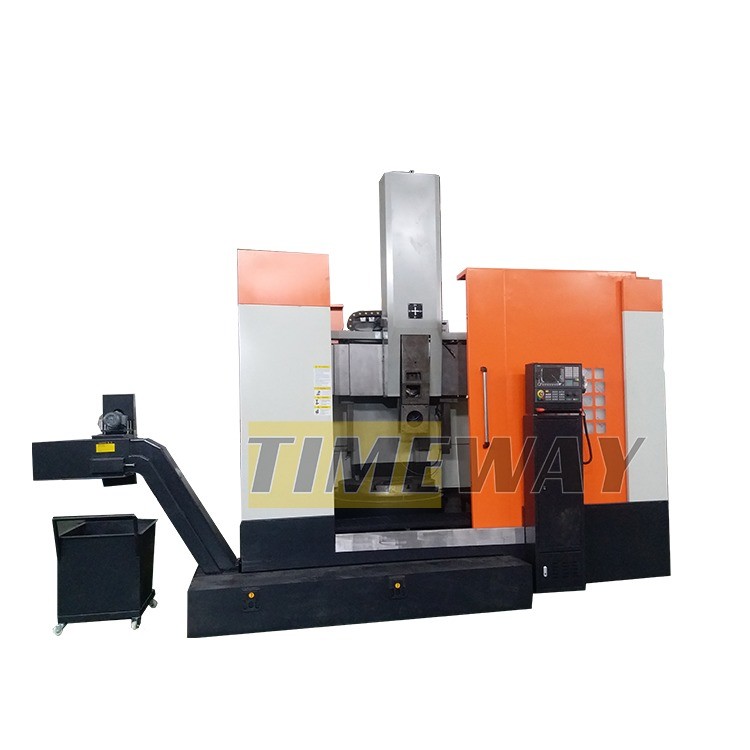

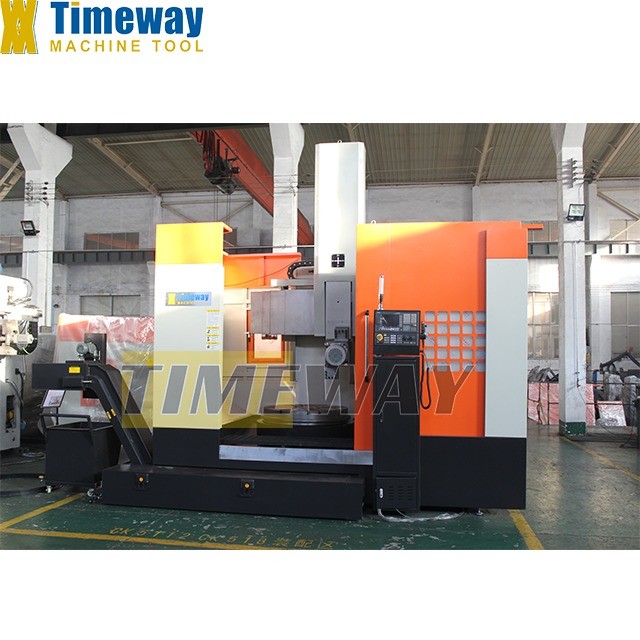

CNC Single Column Vertical Lathe
Vertical CNC Lathe Machine with 1250mm Max. Turning Diameter and 0mm Spindle Bore
Features:
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
3. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving.
Specification
Specifications
Unit
VLK800E
VLK1250E
VLK1600E
VLK2000E
Capacity
Max. swing diameter
mm
950
1250
1600
2000
Max. cutting diameter
mm
800
1250
1600
2000
Max. height of workpiece
mm
800
1000
1000
1250
Max. weight of workpiece
kg
2000
5000
8000
12000
Worktable
Main motor power
kw
22
22
30
37

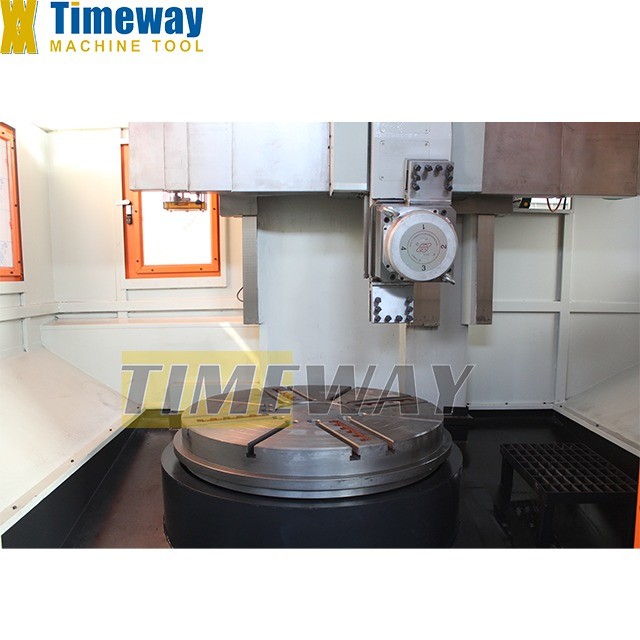

Worktable diameter
mm
800
1010
1400
1800
Max. torque of worktable
KN.m
10
17.5
25
32
Worktable speed range (stepless)
rpm
2-320
1.25-200
1-160
4-125
Tool
Number of tool station
pcs.
4
4
4
4
Tool shank section of external turning tool
mm
32x40
32x40
32x40
32x40
Drive type
-
Electric
Electric
Electric
Electric
X/Z-axis
X-axis ball screw size (dia. x screw pitch)
mm
50x10
50x10
50x10
50x10
Z-axis ball screw size (dia. x screw pitch)
mm
50x10
50x10
50x10
50x10
X-axis travel
mm
-20~550
-20~800
-20~1030
-20~1150
Z-axis travel
mm
650
650
800
800
Feed range(X/Z)
mm
0.1-500
0.1-500
0.1-500
0.1-500
Rapid feed speed
mm/min
2000
2000
2000
2000
Others

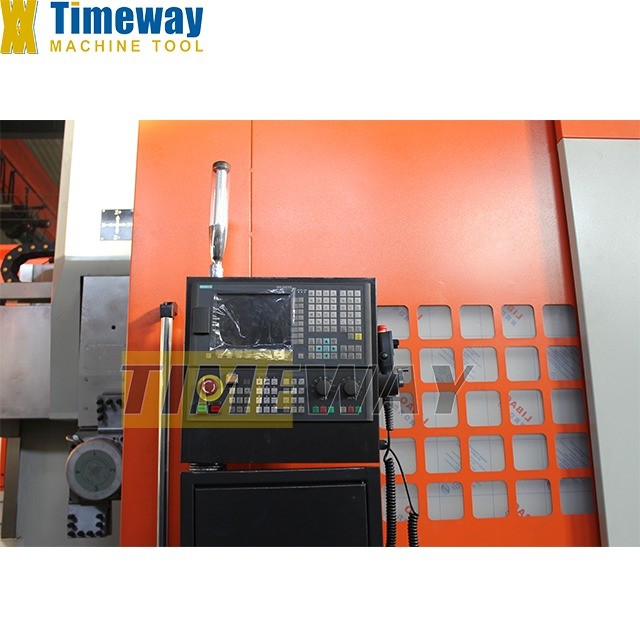

CNC system
-
SIEMENS
SIEMENS
SIEMENS
SIEMENS
Servo motor torque(X/Z)
N.m
10
10
10
10
Power capacity
Kva
30
37
45
52
Machine net weight
kg
8500
11000
14500
18500
Machine dimension (LxWxH)
cm
430x238x429
478x257x440
563x301x466
580x368x494
Accessories

Standard accessories:

Automatic lubrication system
Full closed guard
Air conditioner
Oil cooler

Optional accessories:

FANUC 0i-TF
Special fixture
SIEMENS 828D
Company Profile
Vertical CNC Lathe Machine with 1250mm Max. Turning Diameter and 0mm Spindle Bore

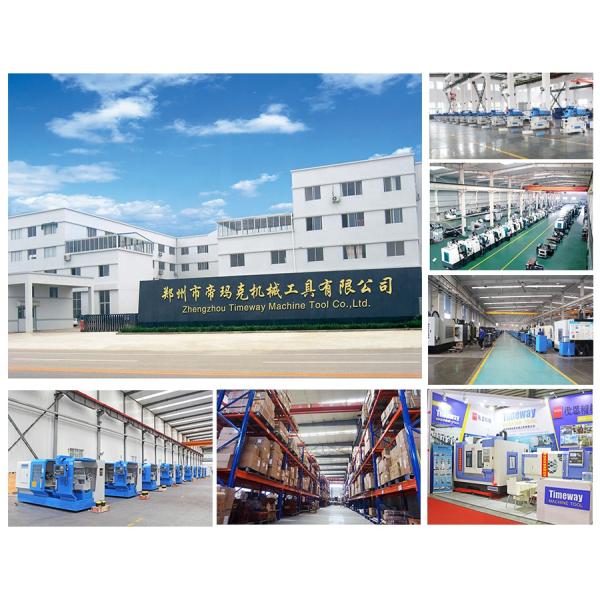

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Vertical CNC Lathe Machine with 1250mm Max. Turning Diameter and 0mm Spindle Bore

Our company has advanced production testing equipment, first-class R & D, production, sales and service teams, and behave the own production and acceptance standard higher than the national standard to ensure that each machine delivered by us can make customer satisfaction and help customer create the greatest benefits.
Client feedback
Vertical CNC Lathe Machine with 1250mm Max. Turning Diameter and 0mm Spindle Bore
Adhering to the "quality products, first-class service, sustainable development" concept, adhere to the "low-key life,high-profil work" spirit of enterprise, look forward to sincere cooperation and work together with the friends from domestic and abroad to create a better future for all.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
