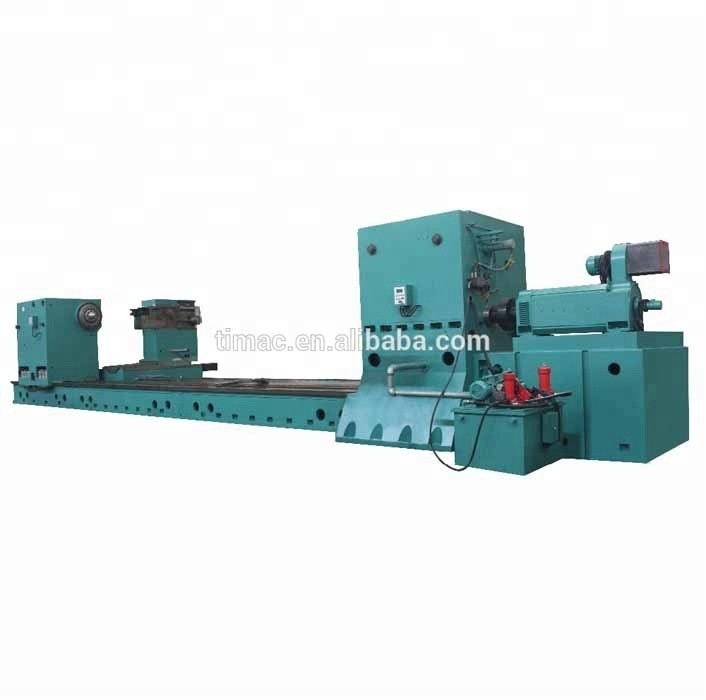

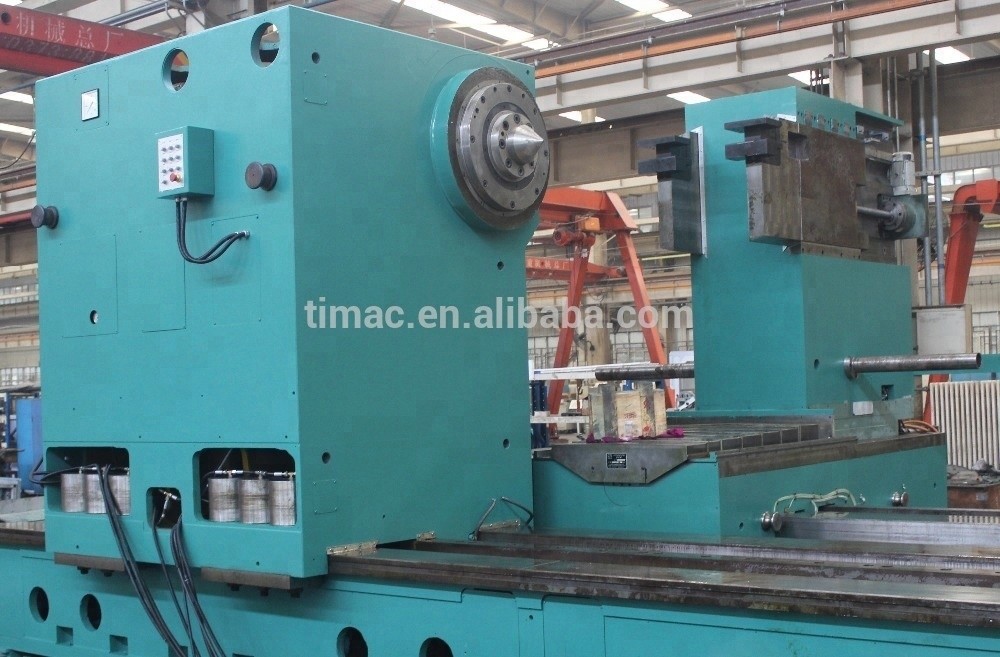

80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
20000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
80000
Width of bed (mm) :
2050 mm
Spindle Motor Power(kW) :
125
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
1300 mm
Travel (Z Axis)(mm) :
20000 mm
Positioning Accuracy (mm) :
0.02
Repeatability (X/Y/Z) (mm) :
0.01
Place of Origin :
Henan, China
Dimension(L*W*H) :
As actual
Brand Name :
TIMAC TIMEWAY
Model Number :
AK-2500H/2
Voltage :
380v 50hz
CNC Control System :
FANUC
Tool Post Stations :
Special tool holder
Weight (KG) :
120000
Warranty :
1 Year
Key Selling Points :
High Rigidity
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Max. workpiece length :
20000mm
After-sales Service Provided :
Engineers available to service machinery overseas
Machine Type :
CNC Heavy Duty Lathe
Color :
Customized Option
Max. swing over tool-post :
2000mm
Bed guideway type :
Four slide guideways
Chuck size :
2000mm
CNC system :
FAUNC or SIEMENS
Max. Swing Diameter (mm) :
2500
Condition :
New
Toolpost Brand :
Other
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Algeria, Uzbekistan, Australia
Year :
latest day
Max. Spindle Speed (r.p.m) :
100 r.p.m
Spindle Bore(mm) :
other
Max. Turned Length (mm) :
20000
Marketing Type :
Special Use Machine Tool
Core Components :
Bearing, Motor, Pump, Gear, Pressure vessel, Gearbox, CNC system
Packaging Details :
In plywood cases.
Port :
China port.
Supply Ability :
5 Set/Sets per Year
Price :
$500,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

CNC Horizontal Heavy Duty Lathe

This series of machines is CNC heavy-duty horizontal lathe suitable for rough machining and finish machining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools in facing, external cylindrical turning, taper cutting and curved shape.
Various types of steady rests, roll chock stand, grinding attachment and milling attachment are available as option according to customer's choice.

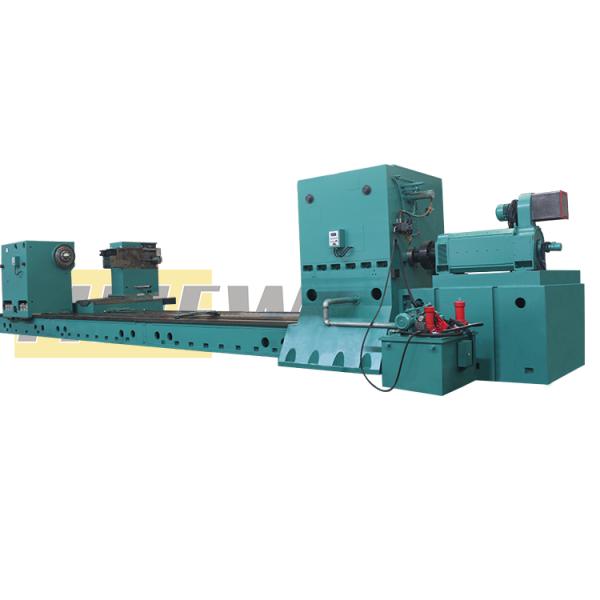

80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls

Feature：

1.Machine bed has three guideways or four guideways on one-piece casting, and induction hardened to guarantee high accuracy, big load capacity and long life, Carriage guideways are fully protected with metal plate splash guards.

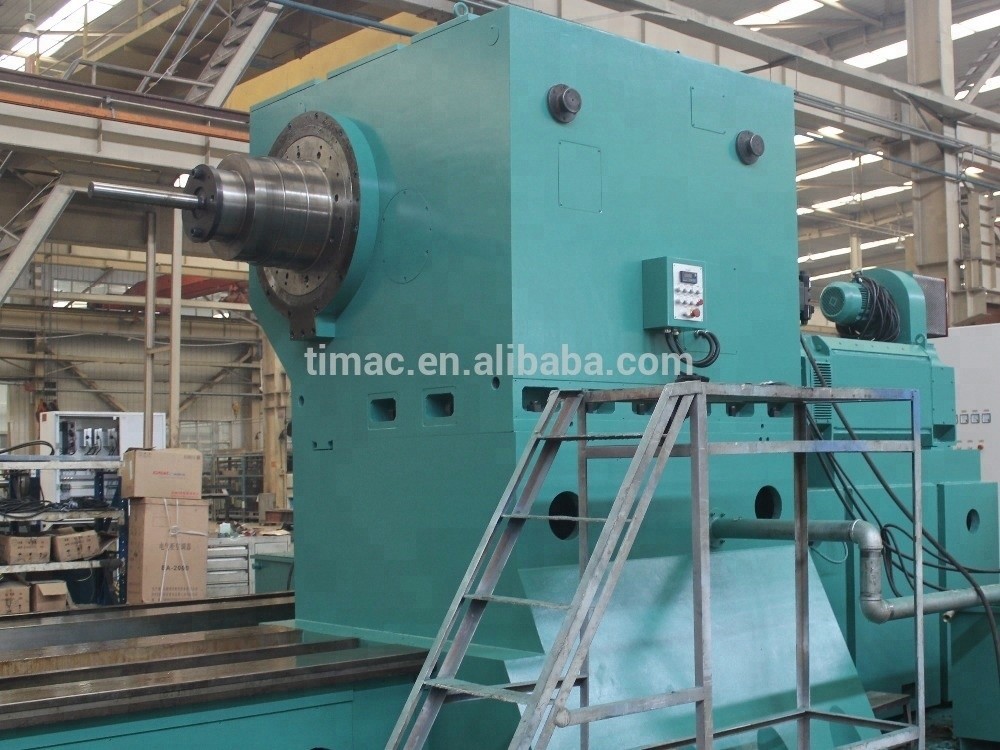

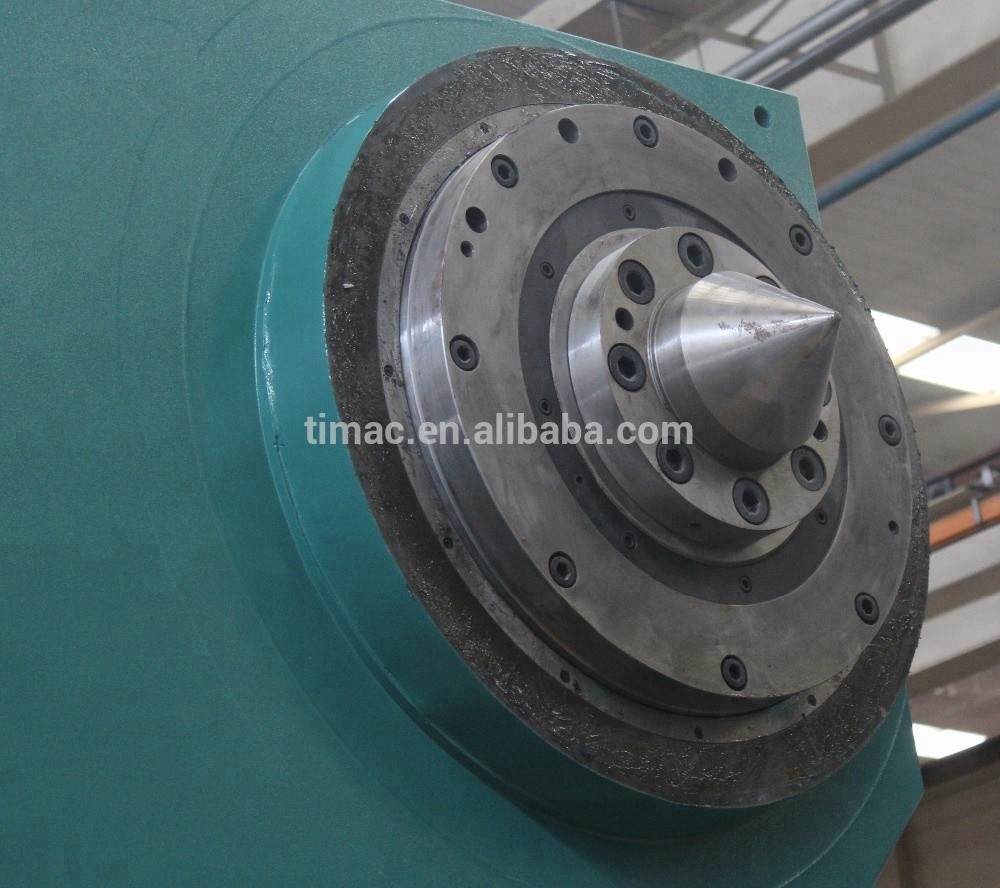

2.Main spindle is supported by imported high precision, radial backlash adjustable double row cylindrical roller bearings in optimal distance considering supporting distance and chuck diameter to get the best accuracy and stiffness.
Specification
Specifications
Units
AK-1800H/2
AK-2000H/2
AK-2200H/2
AK-2500H/2
Max. swing over bed
mm
1800
2000
2200
2500
Max. swing over tool post
mm
1400
1600
1800
2000
Max. length or workpiece
m
5-20
5-20
5-20
5-20
Max. weight of workpiece between centers
t
40/63/80
40/63/80
40/63/80
40/63/80
Max. torque of face plate
kN.m
90/100
90/100
90/100
90/100
Width of bed
mm
2050(Four guide)
2050(Four guide)
2050(Four guide)
2050(Four guide)
Total cutting capacity
kg
8000/9000
8000/9000
8000/9000
9000/12500/16000

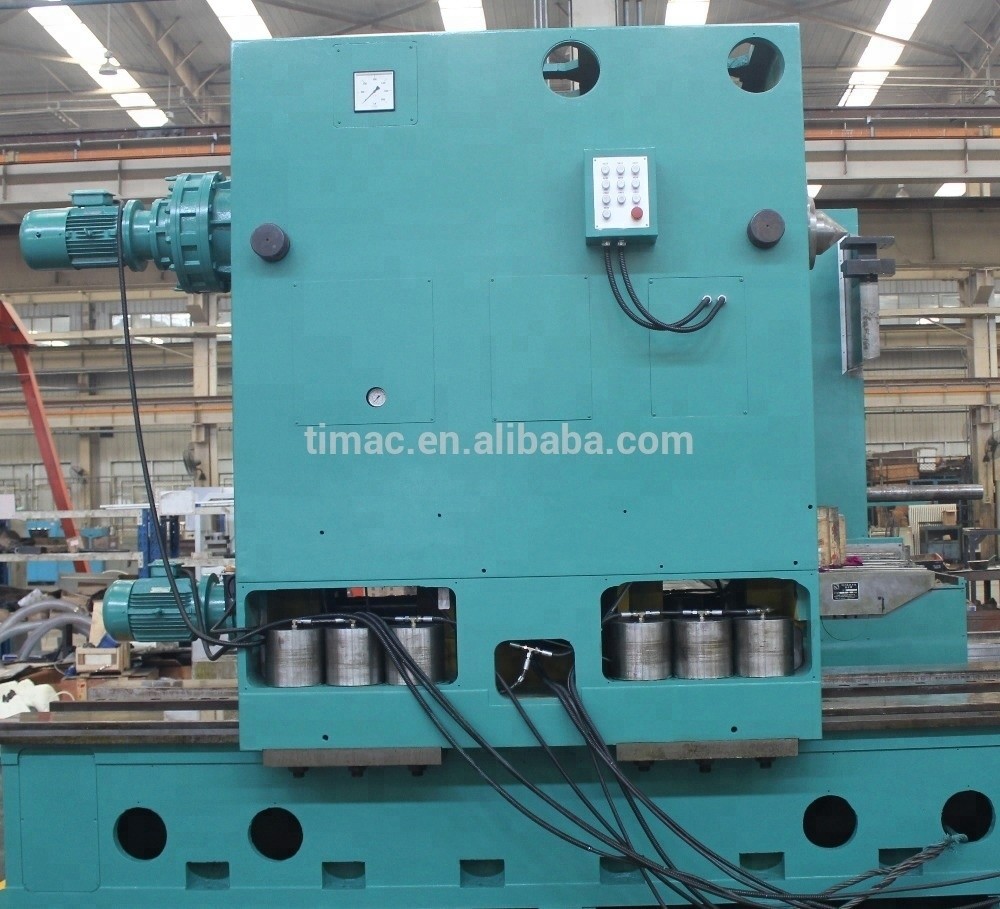

Diameter of tailstock sleeve
mm
400/500/560
400/500/560
400/500/560
400/500/560

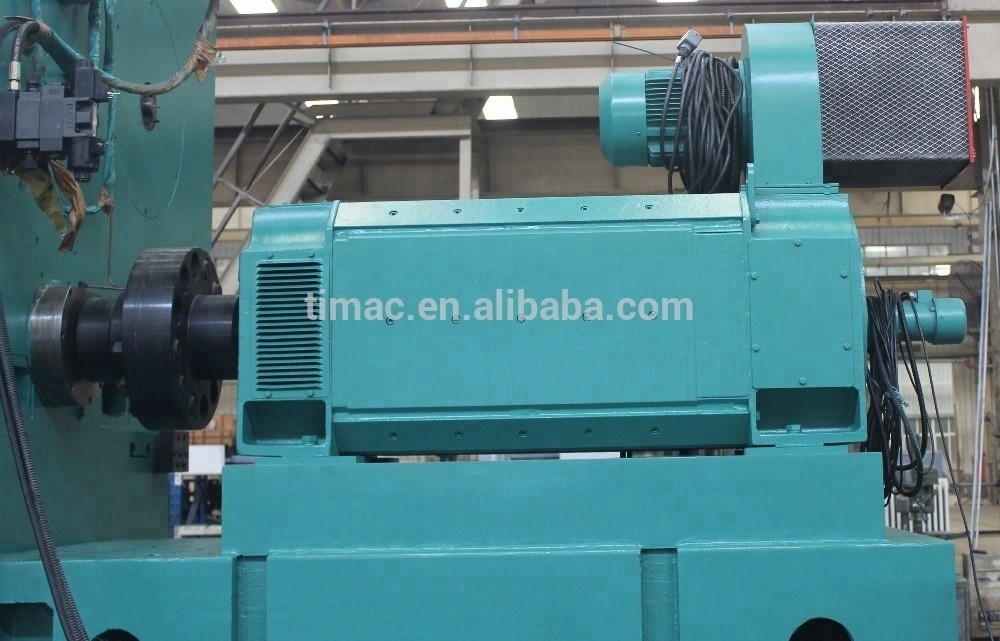

Power of main motor
kw
DC 90/110/125
DC 90/110/125
DC 90/110/125
DC 90/110/125
Client feedback
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Factory Display：
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
