Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
optional
Structure :
Flat Bed Lathe
Machining Capacity :
Medium Duty
Max. Weight of Workpiece(kg) :
8000
Width of bed (mm) :
100 mm
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
570 mm
Travel (Z Axis)(mm) :
1000 mm
Positioning Accuracy (mm) :
0.01
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
Henan, China
Dimension(L*W*H) :
4300*2350*2150
Brand Name :
Timeway
Model Number :
AK-1000B
Voltage :
Customer's Requirement
CNC Control System :
GSK
Tool Post Stations :
8, 4
Weight (KG) :
9800
Warranty :
1.5 years
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
5 - 400 r.p.m
Travel (Y Axis)(mm) :
1000 mm
Spindle Taper :
ISO40, BT40
Cutting torque :
146 N.m
Rapid Feed Speed(mm/min) :
3000 - 6000 mm/min
Feed Speed(mm/min) :
1250 - 2450 mm/min
Min. Time of Tool Change(s) :
0.7
CNC or Not :
CNC
Machine Type :
Flat Bed CNC Lathe
Product name :
CNC Lathe Mechine
Name :
High Precision CNC Lathe Machine
Keyword :
Automatic CNC Lathe Machine
Function :
Machining Metal
Product type :
Cnc Horizontal Turning Lathe Machine
Precision :
High Precision Machine
Application :
Material Processing
Color :
Customers' Requirement
Price :
$36,584.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

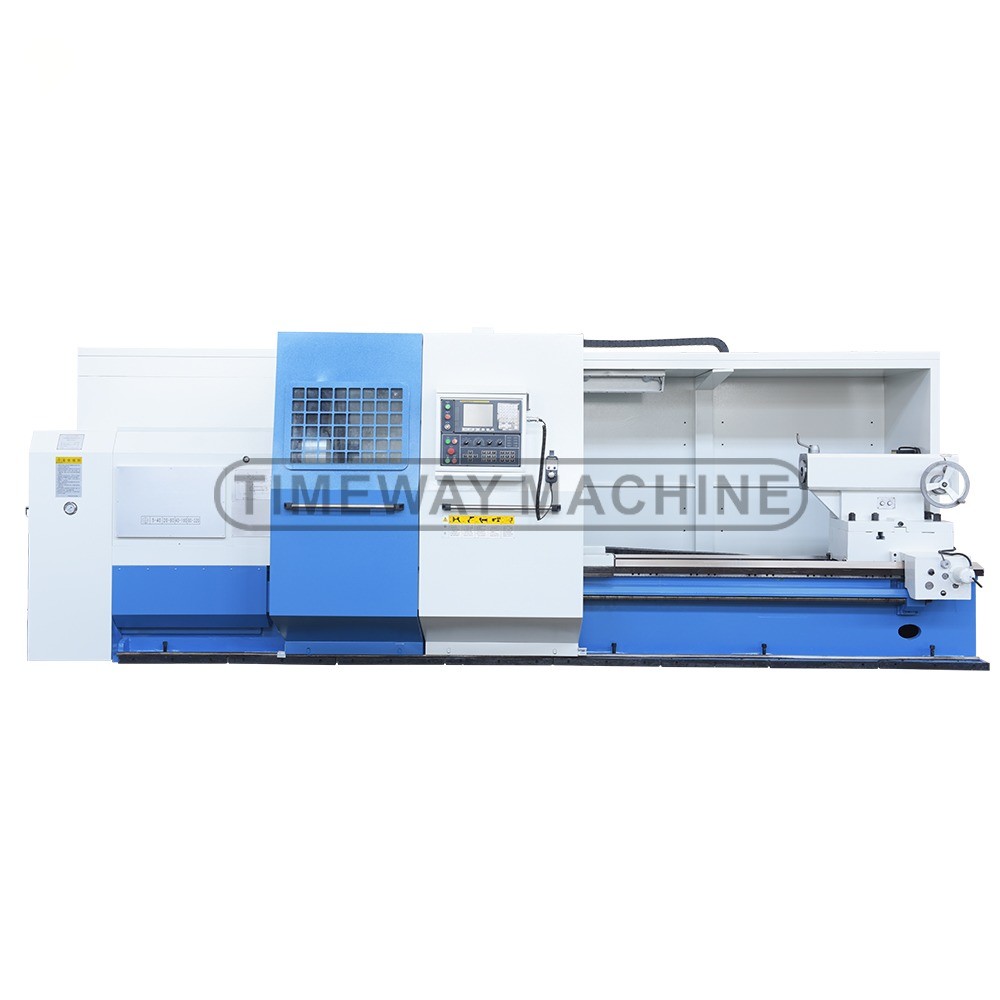

Heavy Duty Horizontal CNC Lathe

Horizontal CNC Lathe Machine with Competitive and Customer Requirements
* Longitudinal and cross feeds are effected by ball leadscrews.

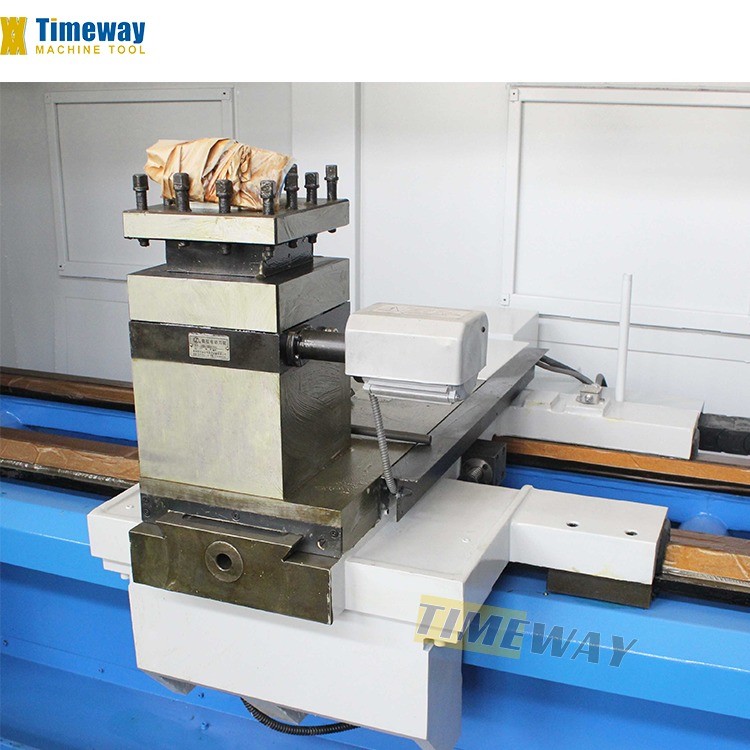

* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.

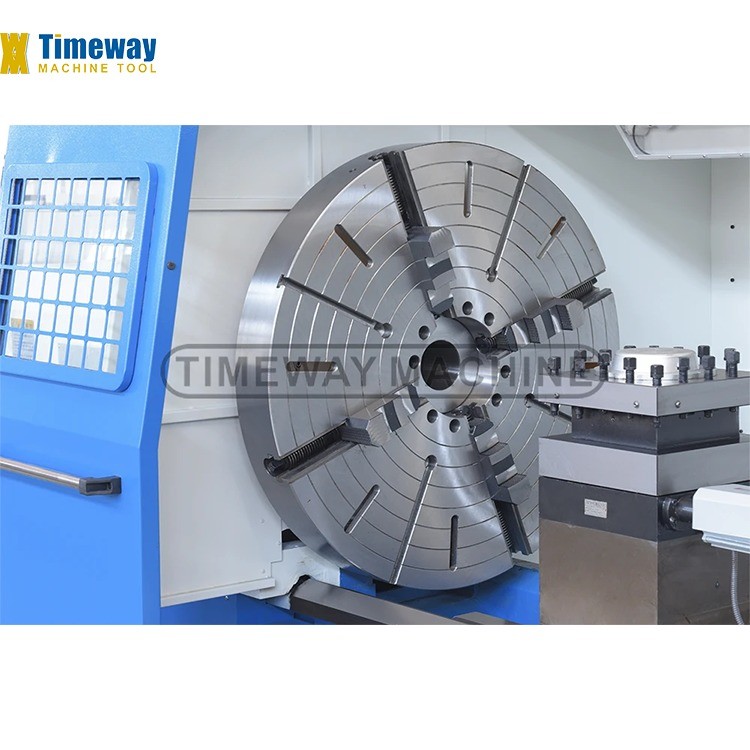

* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
Specification
Specification
Unit
AK-1000B
AK-1250B
AK-1400B
AK-1600B
Max. swing over bed
mm
1000
1250
1400
1640
Max.. swing over cross slide
mm
630
880
1030
1250
Distance between centers
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-
Max. turning length
mm
730/1300/1800/2800/3800/4800/5800/7800/9800/11800/-
Bed width
mm
755
755
755
755
Loading capacity
kg
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
Spindle nose
mm
A2-15
A2-15
A2-15
A2-15
Spindle bore
mm
130
130
130
130
Spindle taper
-
Metric 140
Metric 140
Metric 140
Metric 140
Spindle speed (Hydraulic 4steps, stepless)
rpm
5-320
5-320
5-320
5-320
Center height
mm
500
625
700
820
Chuck size (4-jaw)
mm
1000
1000
1000
1000
X/Z-axis min. feed unit
mm
0.001/0.001
0.001/0.001
0.001/0.001
0.001/0.001
X/Z-axis rapid feed speed
mm/min
3000/5000
3000/5000
3000/5000
3000/5000
Cross travel (X)
mm
570
570
690
630
Tool post type
-
V4/V6/V8
V4/V6/V8
V4/V6/V8
V4/V6/V8
Tool change time
s
2.6
2.6
2.6
2.6
Turret repeat positioning accuracy
mm
0.01
0.01
0.01
0.01
Tool section size
mm
40x40
40x40
40x40
40x40
Tailstock quill diameter
mm
160
160
160
160
Tailstock quill travel
mm
300
300
300
300
Tailstock quill taper
-
MT6
MT6
MT6
MT6
CNC system
-
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
Working accuracy
-
IT6-IT7
IT6-IT7
IT6-IT7
IT6-IT7
Surface roughness
µm
Ra1.6
Ra1.6
Ra1.6
Ra1.6

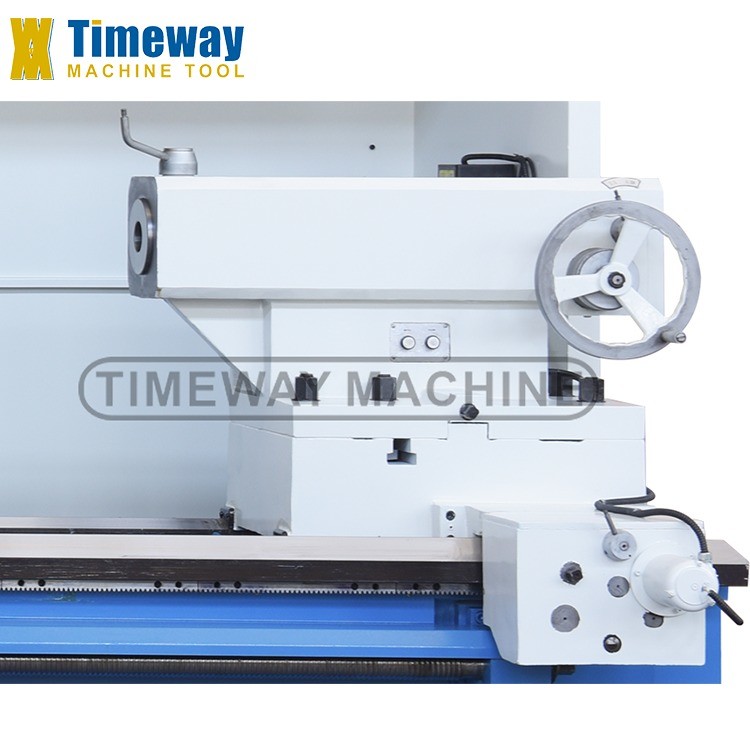

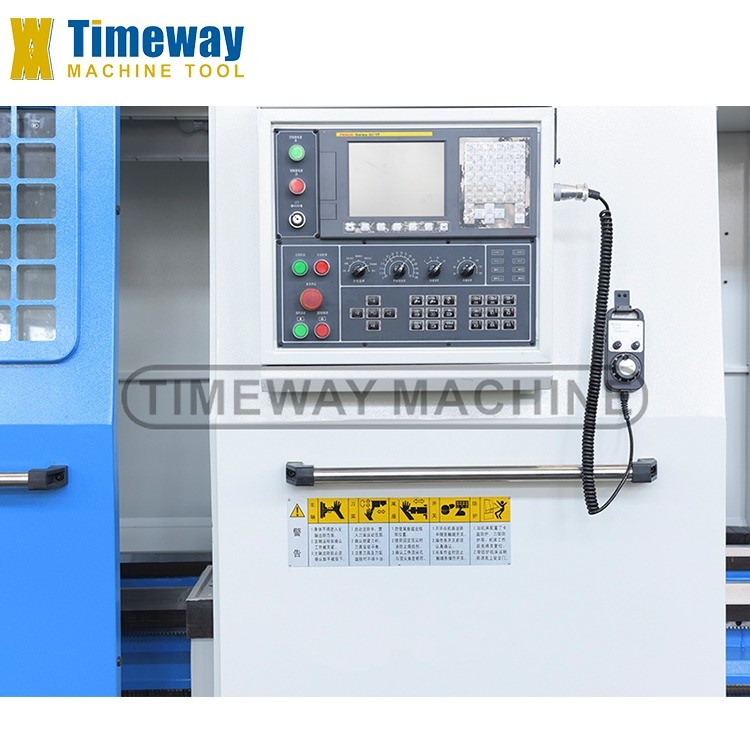

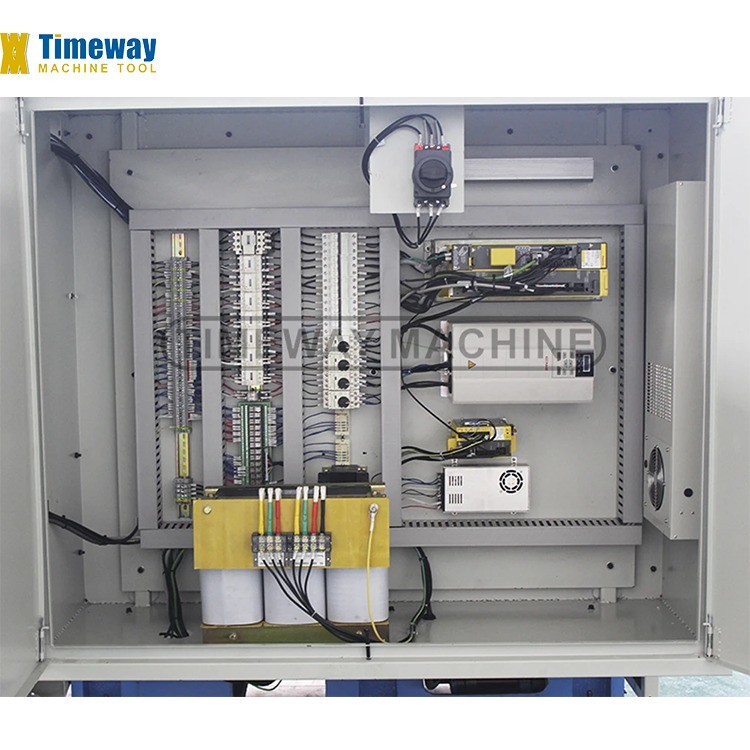

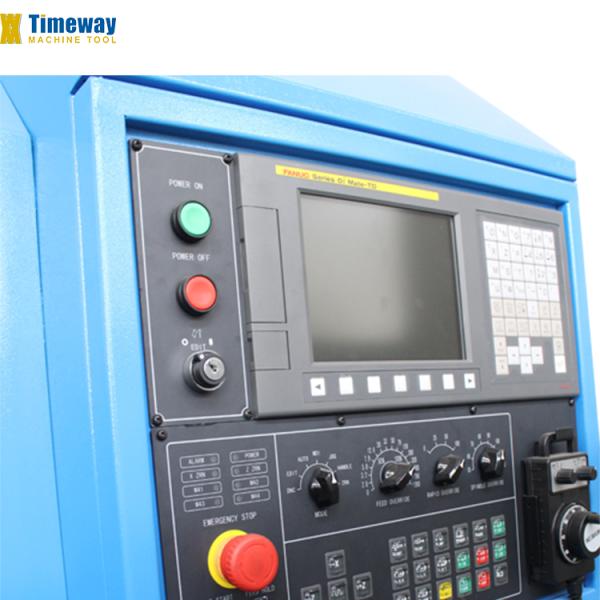

Detailed Images
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Company Profile
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
Horizontal CNC Lathe Machine with Competitive and Customer Requirements
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
