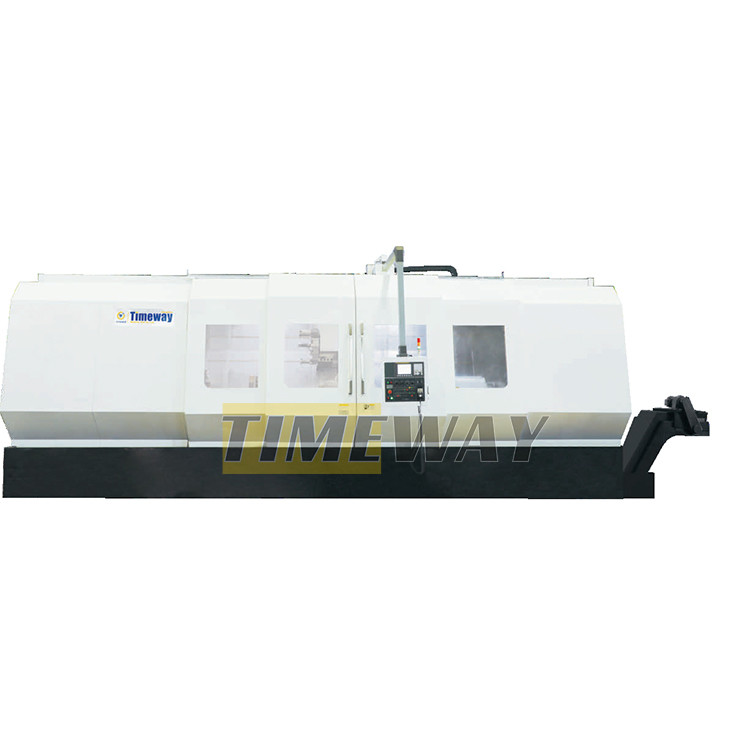

Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
200 mm
Spindle Motor Power(kW) :
22/30
No. of Spindles :
2
Number of Axes :
2
Travel (X Axis)(mm) :
210 mm
Travel (Z Axis)(mm) :
530 mm
Place of Origin :
China
Dimension(L*W*H) :
2875xx1500x1500
Brand Name :
timeway
Model Number :
AK-35
Voltage :
220V/380V
CNC Control System :
FANUC
Tool Post Stations :
6
Weight (KG) :
3500
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max.swing over bed :
660mm
Max. turning diameter :
550mm
Max. length of workpiece :
3000mm
Cross travel (X) :
305mm
Longitudinal travel (Z) :
855mm
X/Z-axis feed speed :
1260mm/min
Main motor power :
30kw
Condition :
New
Showroom Location :
Italy, France, Peru, Thailand
Year :
new
Max. Spindle Speed (r.p.m) :
660 r.p.m
Spindle Bore(mm) :
92
Max. Turned Length (mm) :
2920
Applicable Industries :
Manufacturing Plant, Other
Marketing Type :
New Product 2023
Core Components :
Motor, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$20,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Slant bed CNC lathe
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Technical Parameter
Parameter
Unit
A-25
AK-35
Max.swing over bed
mm
520
660
Max. turning diameter
mm
420
550
Max. length of workpiece
mm
625/1000/1500/2000/3000
890/1640/2000/3000
Max. turning length
mm
530/905/1405/1905/2905
780/1530/1890/2890
Cross travel (X)
mm
230
305
Longitudinal travel (Z)
mm
590/965/1465/1965/2965
855/1605/1965/2965
X-axis rapid feed speed
m/min
12
12
Z-axis rapid feed speed
m/min
15
15
X/Z-axis feed speed
mm/min
1260
1260
Spindle speed range
rpm
35-3500
25-2500
Spindle nose
-
A2-8
A2-8
Spindle bore
mm
87
92
Hydraulic chuck size
inch
10"
12"
Front bearing inner diameter
mm
130
160
Tool post type
-
H12
H12
Tool section size (turning)
mm
25x25
25x25
Tool section size (boring)
mm
40
50
Tool change time
sec
0.3
1
Tailstock travel
mm
490/865/1365/1865/2865
706/1456/1816/2816
Tailstock quill diameter
mm
85
110
Tailstock quill taper
-
MT5
MT5
Tailstock quill travel
mm
80
100
Main motor power
kw
15/18.5
22/30
Total power
kw
30
46
Working accuracy
mm
IT6
IT6
Roughness
µm
Ra0.8
Ra0.8
Bed structure
-
45°
45°
Machine length
mm
3000/3380/4550/4960/6160
3620/4725/5825/7000
Machine width & height
mm
1545x1950
1820x2130
Machine weight
tons
5/5.5/6.5/7.5/8.5
8/10/11.5/15.5
Standard accessories: Optional accessories:
FANUC
Hydraulic chuck
Hydraulic turret
Hydraulic tailstock
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals
SIEMENS CNC system
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor

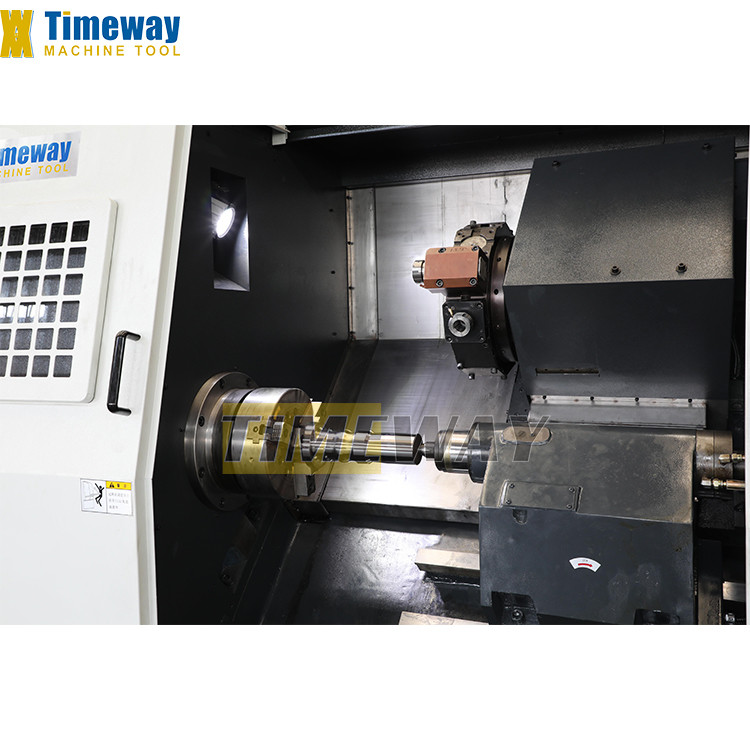

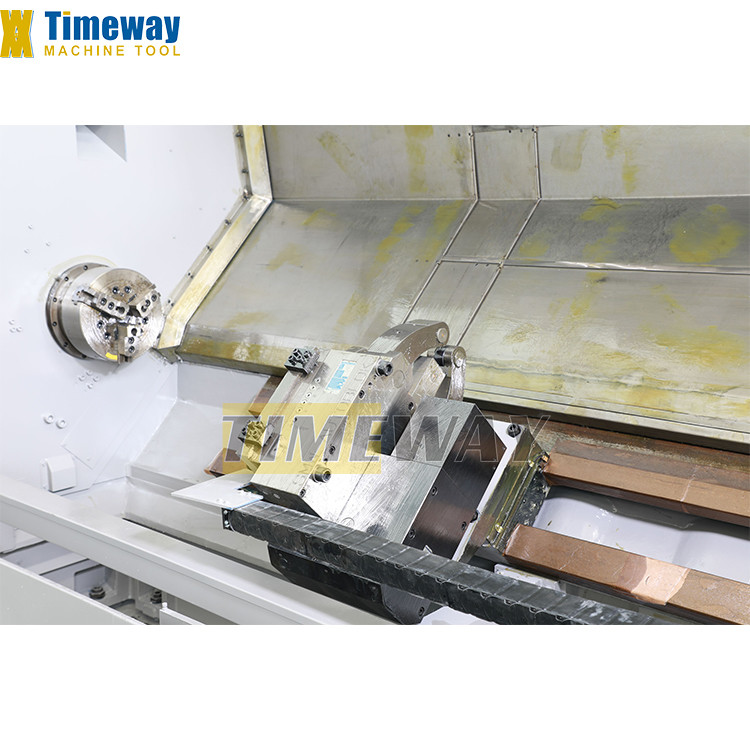

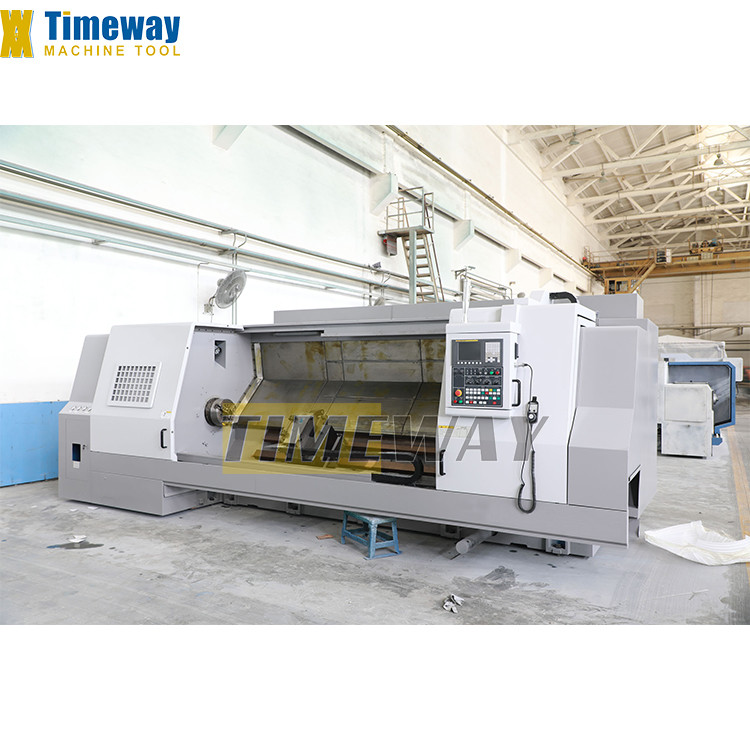

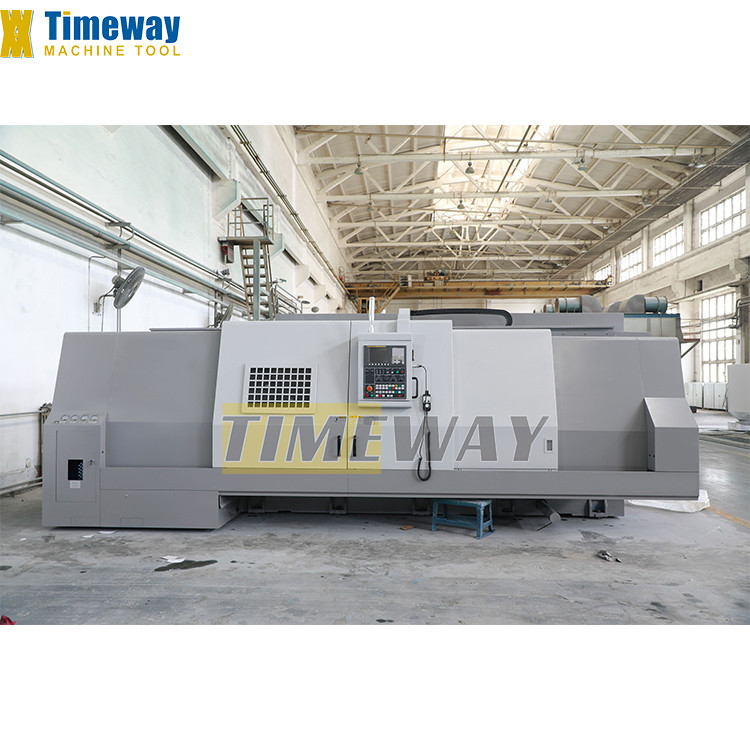

Detail Images
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Our Team
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Why Choose Us
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
