Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
2000 mm
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
390 mm
Spindle Motor Power(kW) :
7.5/10
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
320 mm
Travel (Z Axis)(mm) :
365 mm
Positioning Accuracy (mm) :
0.001 mm
Repeatability (X/Y/Z) (mm) :
0.005
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
CK-660
Voltage :
220/380V
CNC Control System :
FANUC
Tool Post Stations :
8, 6
Weight (KG) :
2100
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Not Available
Warranty of core components :
1 Year
CNC or Not :
CNC
Automatic Grade :
Automatic
After-sales Service Provided :
Online support
CNC Lathe :
Economical Flat bed CNC Lathe
Certification :
CE ISO
Max. Swing Diameter (mm) :
660
Steps of spindle speed :
Variable
Rapid feed for axis Z :
10 m/min
Main motor power :
11/15 k W
Machine weight :
2100kg
Condition :
New
Spindle Bore(mm) :
105
Showroom Location :
Italy, France, Germany, Viet Nam, Philippines, Brazil
Core Components :
Bearing, Motor, Pump, Engine
Year :
new
Max. Spindle Speed (r.p.m) :
1600 r.p.m
Max. Turned Length (mm) :
430
Applicable Industries :
Manufacturing Plant, Other
Marketing Type :
New Product
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
50 Set/Sets per Month
Price :
$16,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

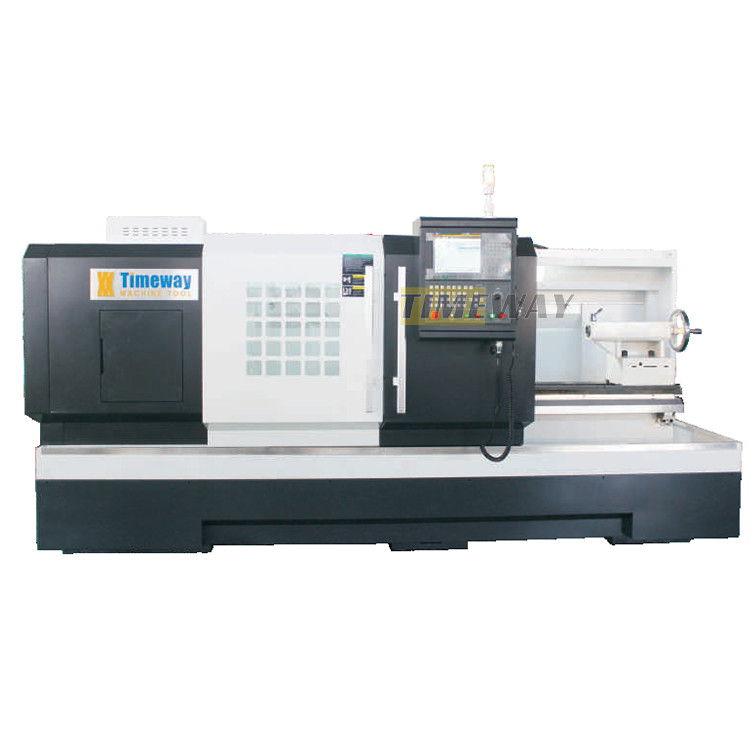

Flat bed CNC lathe
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Technical Parameter
Specifications
Units
CK-500
CK-660
Max.swing over bed
mm
Φ530
Φ660
Max.swing over carriage
mm
Φ310
Φ430
Width of bed
mm
405
405
Max.length of workpiece
mm
750/1000/1500/2000/3000
Max.turning length
mm
650/900/1300/1900/2900
Max.weight between center
-
A2-8
D8
Spindle nose
mm
Φ80
Φ105
Spindle bore
mm
MT7
Metric113
Steps of spindle speed (Manual)
-
4 steps (variable)
4 steps (variable)
Range of spindle speed
rpm
27-1630
27-1630
Rapid feed for Z-axis
m/min
10
10
Rapid feed for X-axis
m/min
8
8
Max.travel of Z-axis
mm
720/970/1470/1970/2970
Max.travel of X-axis
mm
300
365
Min.input
mm
0.001
0.001
Tool post stations
-
V4/V6
V4/V6
Tool cross section
mm
32x32
32x32
External diameter of tailstock sleeve
mm
Φ75
Φ75
Taper of bore of tailstock sleeve
-
MT5
MT5
Max.traverse of tailstock sleeve
mm
150
150
Power of main motor
kw
7.5
11
Power of cooling pump
kw
0.09
0.09
Overall dimensions(L x W x H)
mm
2250/2500/3000/3500/4500x1250x1580
Machine weight
kg
2700/3000/3600/4100/4700
2800/3100/3700/4300/5300
Standard accessories: Optional accessories:
FANUC
Manual 3-jaw chuck
4-tation electric tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals
SIEMENS CNC system
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor

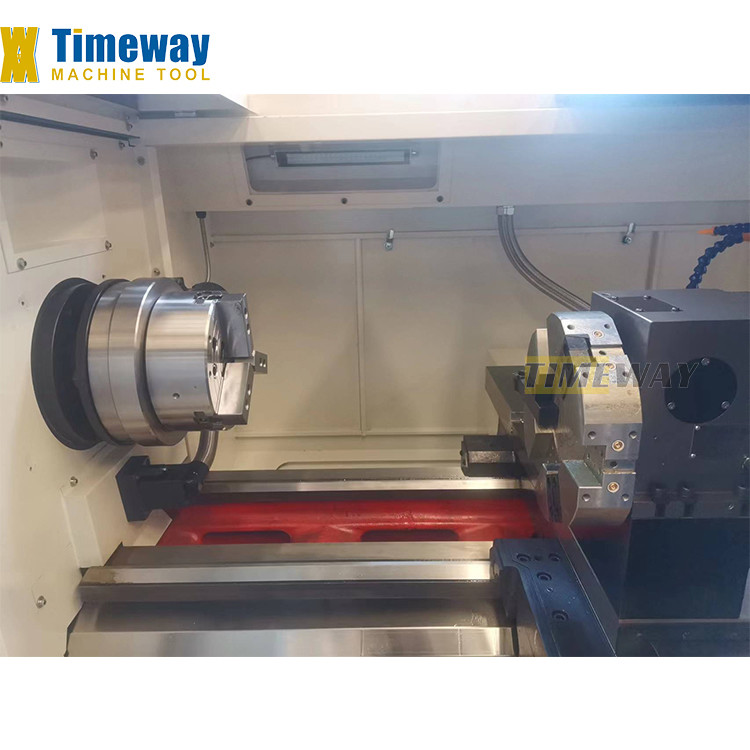

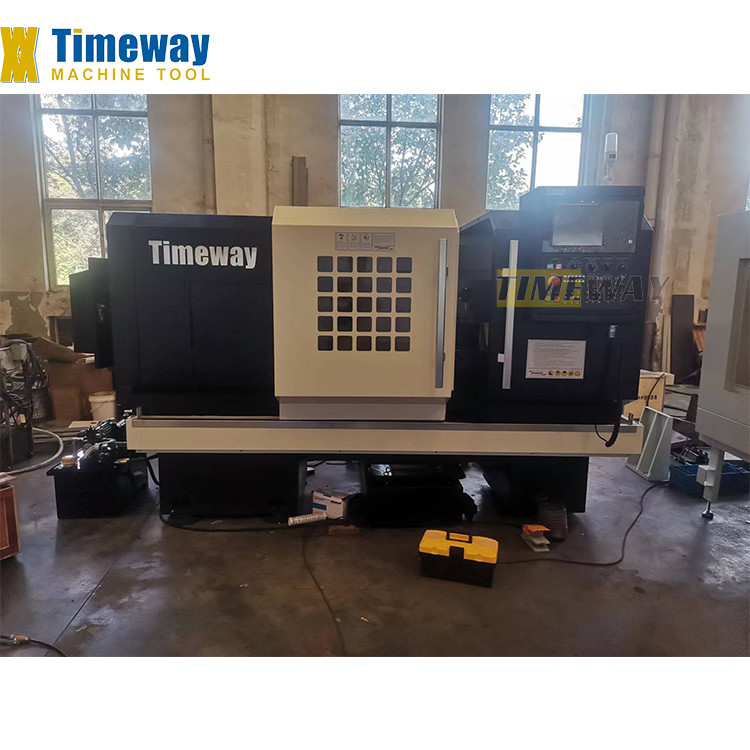

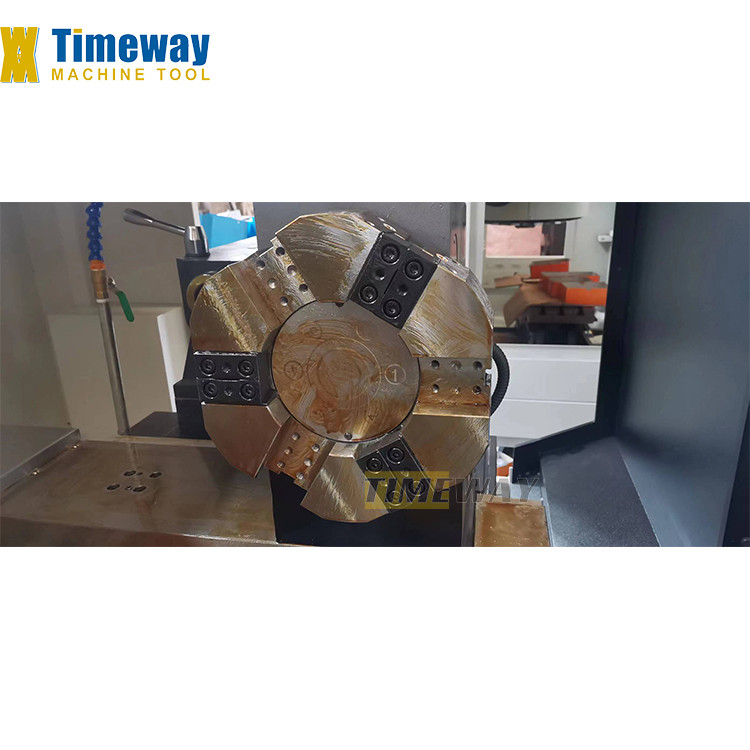

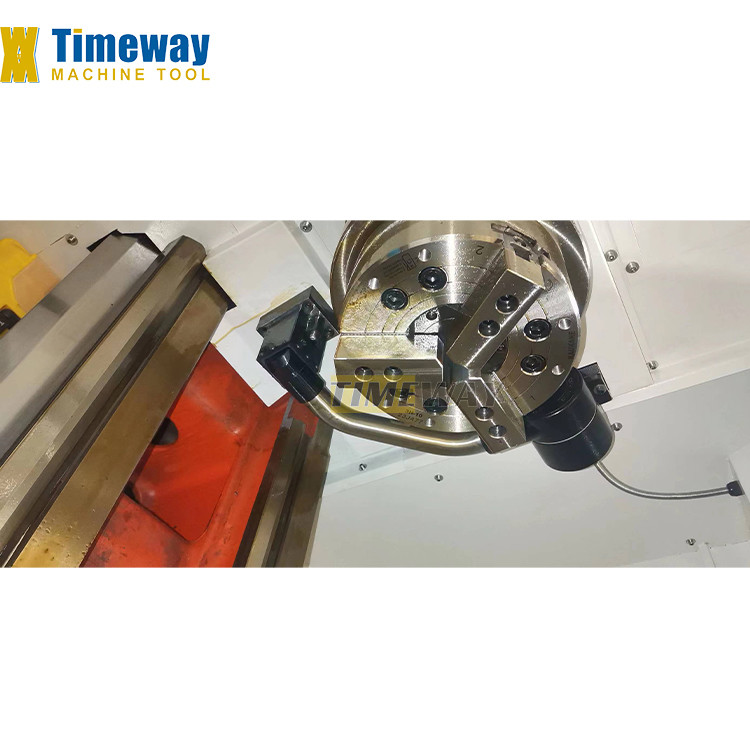

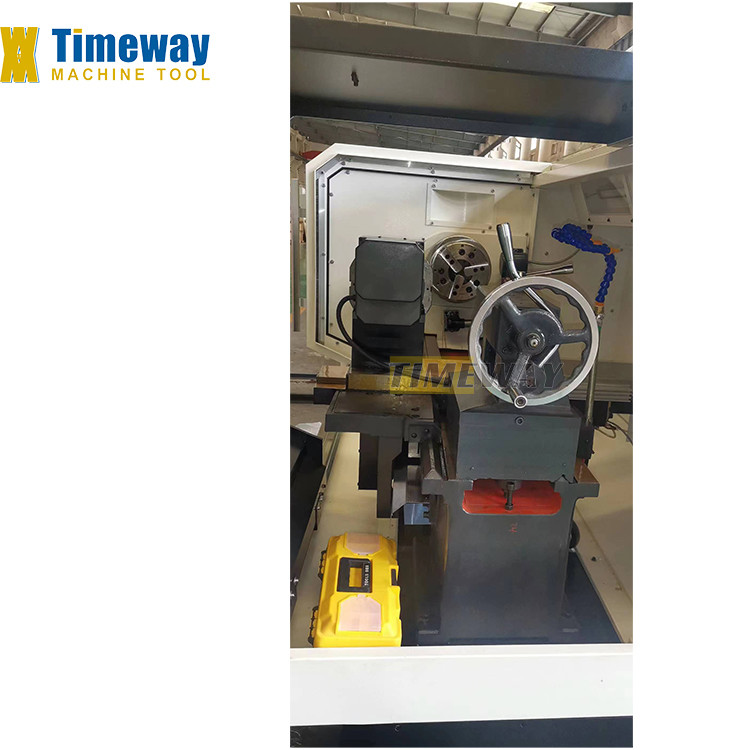

Detail Images
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Our Team
Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Why Choose Us
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
