Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
0 mm
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
210 mm
Travel (Z Axis)(mm) :
530 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
Henan, China
Dimension(L*W*H) :
2875*1500*1500mm
Brand Name :
Timeway
Model Number :
AK-35
Voltage :
220V/380V
CNC Control System :
FANUC
Tool Post Stations :
6
Weight (KG) :
3500
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
25 - 2500 r.p.m
Travel (Y Axis)(mm) :
0 mm
Spindle Taper :
BT40
Cutting torque :
0 N.m
Rapid Feed Speed(mm/min) :
12000 - 15000 mm/min
Feed Speed(mm/min) :
0 - 1260 mm/min
Min. Time of Tool Change(s) :
0.7
Max.swing over bed :
660mm
Max. turning diameter :
550mm
Max. length of workpiece :
890/1640/2000/3000mm
Max. turning length :
780/1530/1890/2890mm
Cross travel (X) :
305mm
Longitudinal travel (Z) :
855/1605/1965/2965mm
X-axis rapid feed speed :
12m/min
Z-axis rapid feed speed :
15m/min
X/Z-axis feed speed :
1260mm/min
Spindle speed range :
25-2500rpm
Price :
$20,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

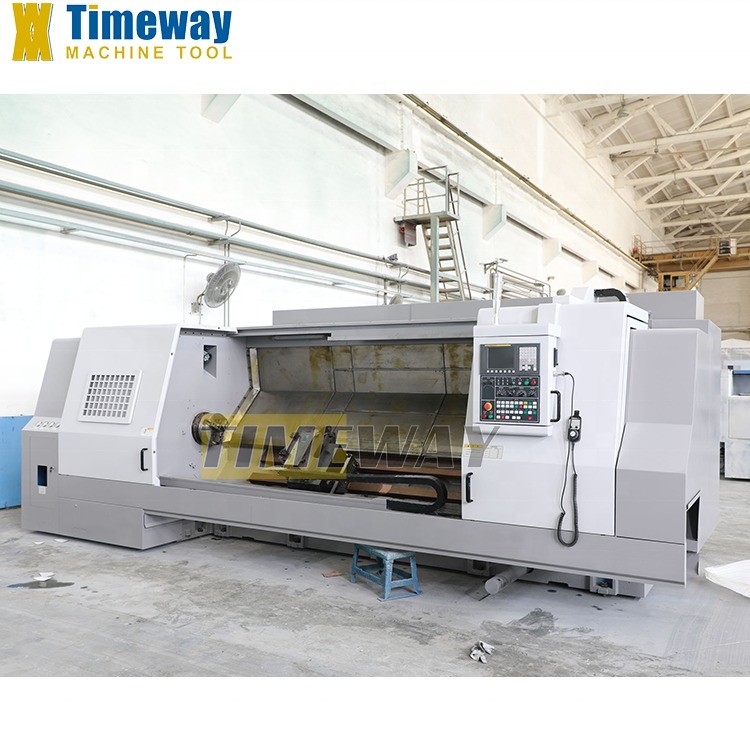

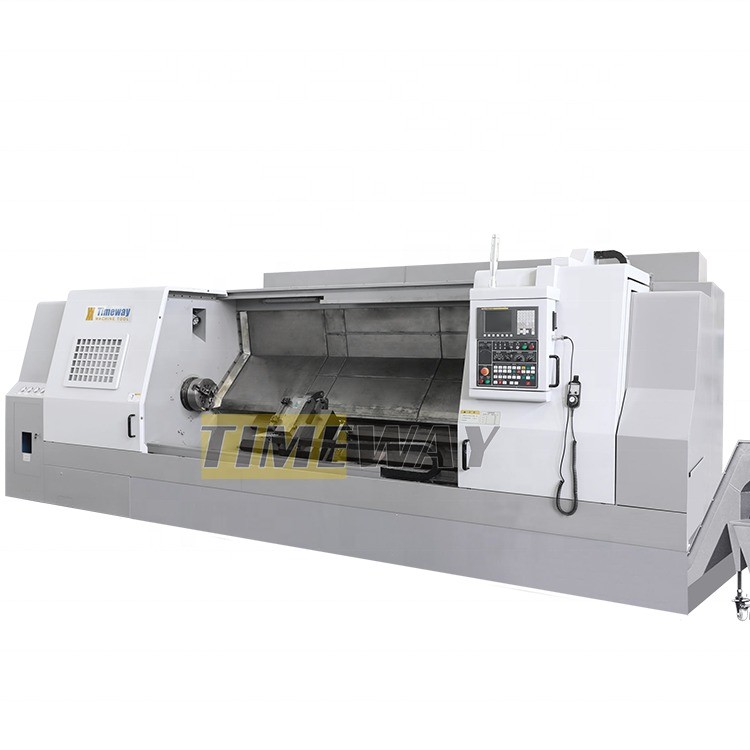

Slant Bed CNC Lathe
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length

Features:

1.The bed adopts the box-shaped structure, one-piece moulding casting technology, and 45-degree slant.
2.The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions.
3.Main motor uses FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise.
4.High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces.
5.X/Z-axis transmission system uses high-precision ball screw driven by FANUC AC motor directly, there are no belt and gear drive,avoided the backlash and vibration generated.
Specification
Specifications
Unit
AK-35
Max.swing over bed
mm
660
Max. turning diameter
mm
550
Max. length of workpiece
mm
890/1640/2000/3000
Max. turning length
mm
780/1530/1890/2890
Cross travel (X)
mm
305
Longitudinal travel (Z)
mm
855/1605/1965/2965
X-axis rapid feed speed
m/min
12
Z-axis rapid feed speed
m/min
15
X/Z-axis feed speed
mm/min
1260
Spindle speed range
rpm
25-2500
Spindle nose
-
A2-8
Spindle bore
mm
92
Hydraulic chuck size
inch
12"
Front bearing inner diameter
mm
160
Tool post type
-
H12
Tool section size (turning)
mm
25x25
Tool section size (boring)
mm
50
Tool change time
sec
17
Tailstock travel
mm
06/1456/1816/2816
Tailstock quill diameter
mm
110
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
100
Main motor power
kw
22/30
Total power
kw
46
Working accuracy
mm
IT6
Roughness
µm
Ra0.8
Bed structure
-
45°
CNC system
-
FANUC or SIEMENS
Machine length
mm
3620/4725/5825/7000
Machine width & height
mm
1820x2130
Machine weight
tons
8/10/11.5/15.5
Accessories

Standard accessories:

FANUC CNC system
Hydraulic chuck
Hydraulic turret
Hydraulic tailstock
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals

Optional accessories:

SIEMENS CNC system
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor
Our Team
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length

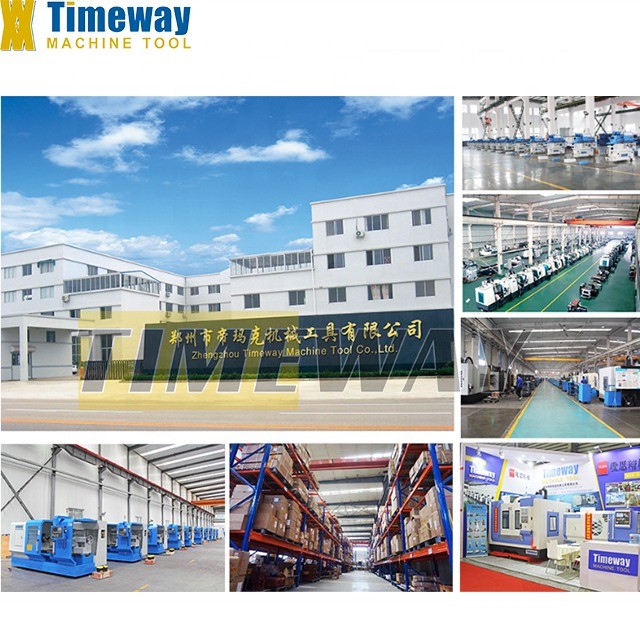

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Why Choose Us
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
This is a picture of clients visiting our company when we hold exhibitions around the world.
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
This is the picture of the packaging in our factory! You can see our package is standardized and centralized , then they will be shipped to your designated place.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
