Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
750
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Max. Weight of Workpiece(kg) :
4000
Width of bed (mm) :
200 mm
Spindle Motor Power(kW) :
22
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
400 mm
Travel (Z Axis)(mm) :
860 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
Henan, China
Dimension(L*W*H) :
3700*2200*2200
Brand Name :
Timeway
Model Number :
CK-63
Voltage :
220V/380V,50HZ
CNC Control System :
FANUC
Tool Post Stations :
12, 8
Weight (KG) :
5500
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Slant Bed CNC Lathe
Product name :
CNC Lathe Mechine
Keyword :
Cnc Metal Lathe Machine
Function :
Metal Turning
Precision :
High Precision Machine
Max. Swing Diameter :
660mm
Max. turning length :
750
Color :
Customer Optional
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Retail
Showroom Location :
Egypt, Brazil, Russia
Marketing Type :
Hot Product 2019
Core Components :
Bearing, Motor
Year :
2023
Max. Spindle Speed (r.p.m) :
1500 r.p.m
Spindle Bore(mm) :
112
Max. Turned Length (mm) :
750
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$48,800.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

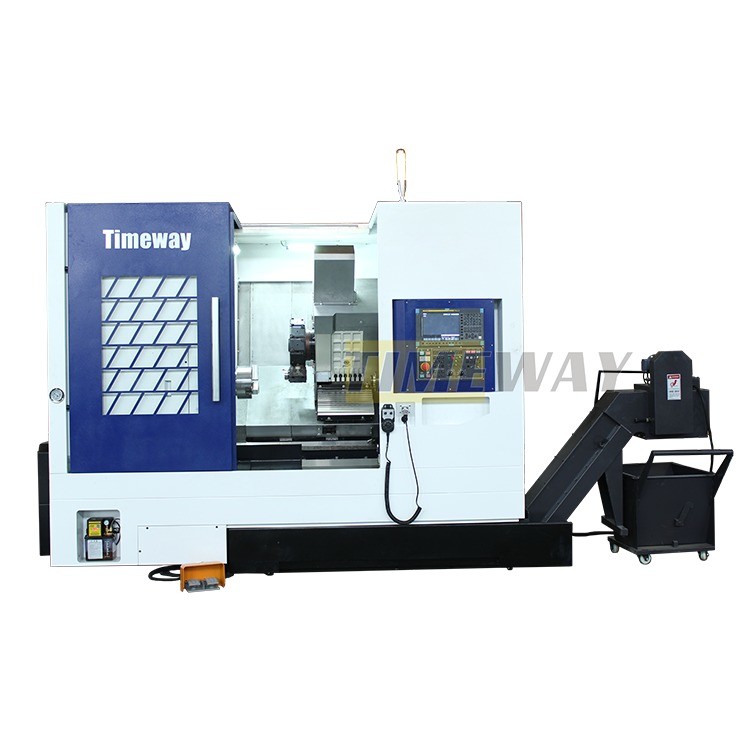

Slant Bed CNC Lathe

2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
Features:

- The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.

- It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
Specification
Specification
Unit
CK-50
CK-63
Max. swing over bed
mm
570
570
Max. swing over cross slide
mm
320
320
Standard turning diameter
mm
250
250
Max. turning diameter
mm
360
360
Max. turning length
mm
450/750/1350/2000/3000
450/750/1350/2000/3000
Max. diameter of bar
mm
74
74
Spindle speed
rpm
2000
2000
Spindle nose
-
A2-8
A2-8
Spindle bore
mm
86
86
Chuck size
mm
250
250
Cross travel (X)
mm
250
250
Longitudinal travel (Z)
mm
600/1000/1500/2150/3150
600/1000/1500/2150/3150
X/Z-axis rapid feed speed
m/min
20/16
20/16
Hydraulic tool post type
-
100-8T
100-8T
Tool section size
mm
25x25/Φ40
25x25/Φ40
Tailstock quill diameter
mm
75/110
75/110
Tailstock quill travel
mm
100
100
Tailstock quill taper
-
MT4/MT5
MT4/MT5
Bed structure
-
45° Integral bed
45° Integral bed
Guideway type
-
Linear/Sliding
Linear/Sliding
Working accuracy
mm
IT6
IT6
X-axis repositioning accuracy
mm
0.006
0.006
Z-axis repositioning accuracy
mm
0.008/0.01/0.013/0.017/0.021
0.008/0.01/0.013/0.017/0.021
Roughness
um
Ra1.6
Ra1.6
Main motor power
kw
11/15
11/15
Power supply
kva
35
35
Machine dimensions (LxWxH)
mm
2900/3100/4300/4950/5600x1800x1800
3700/4400/5900x2200x2200
Machine weight
kg
3100/3600/4600/5300/6900
5500/6000/7300

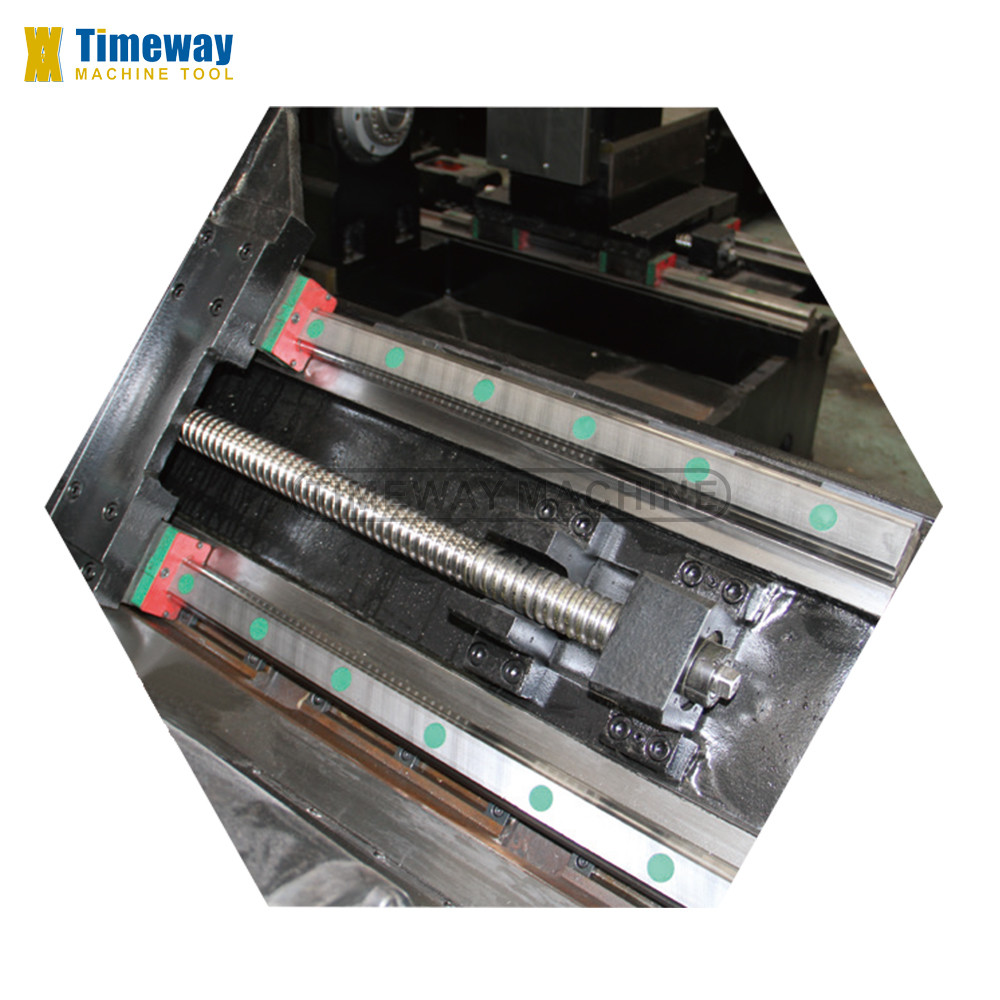

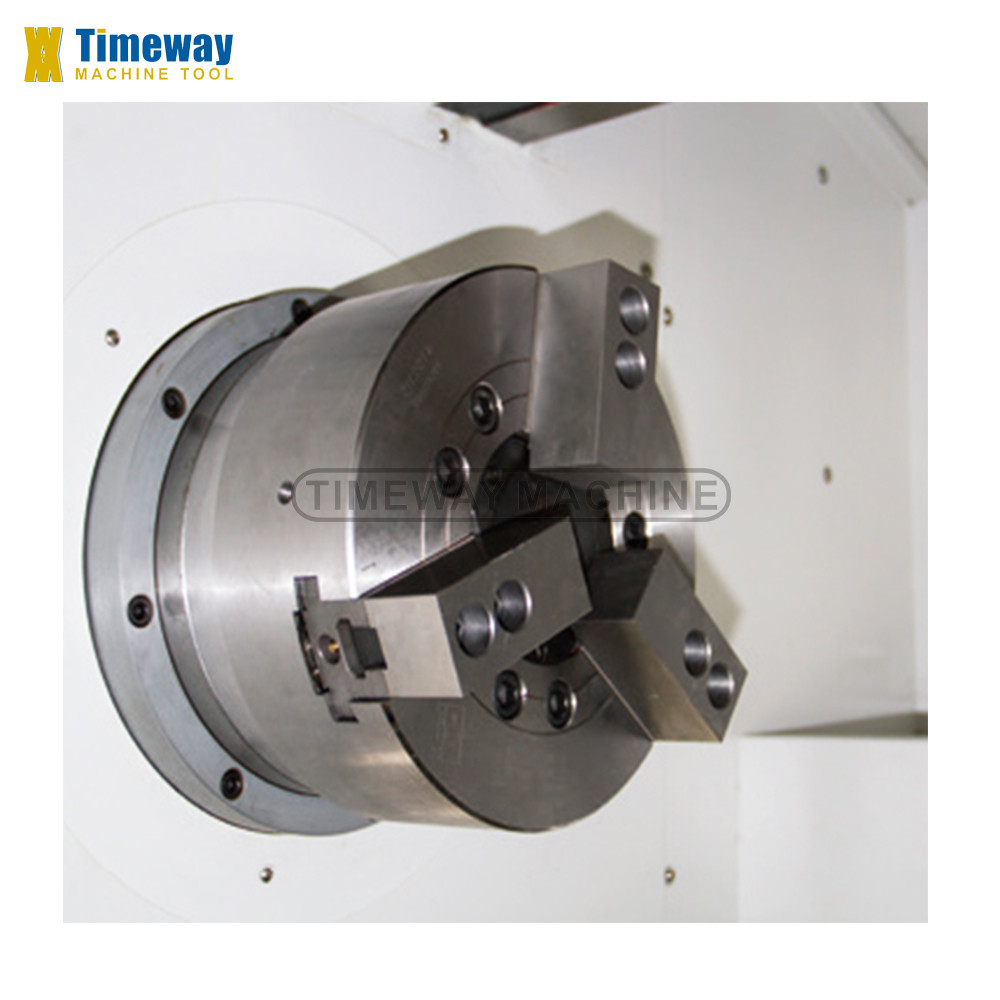

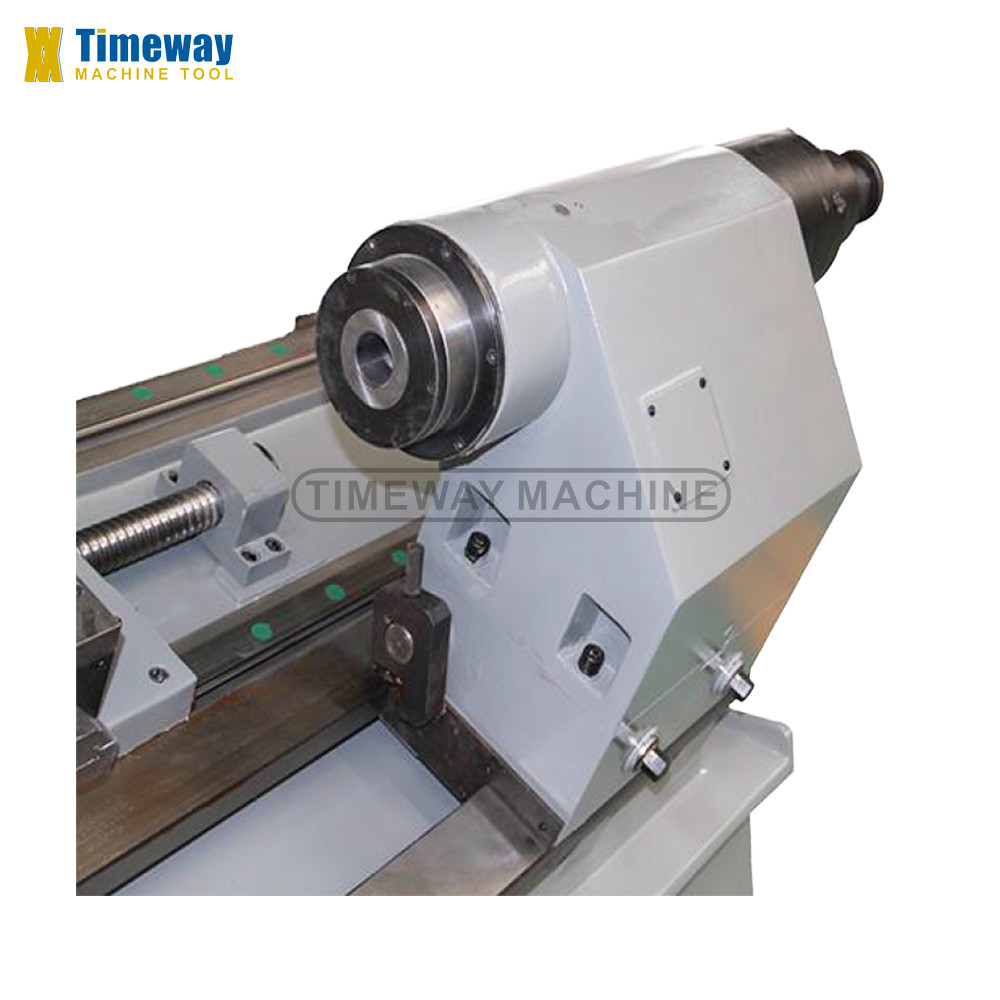

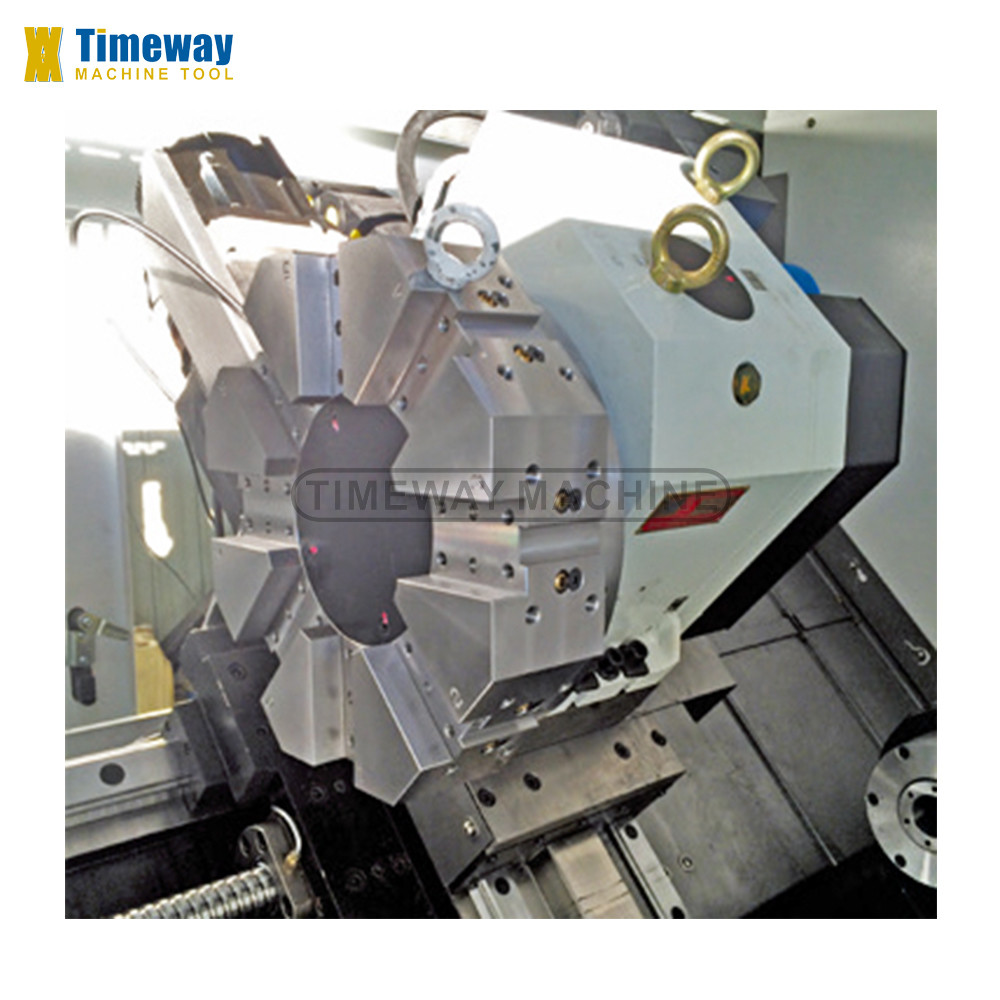

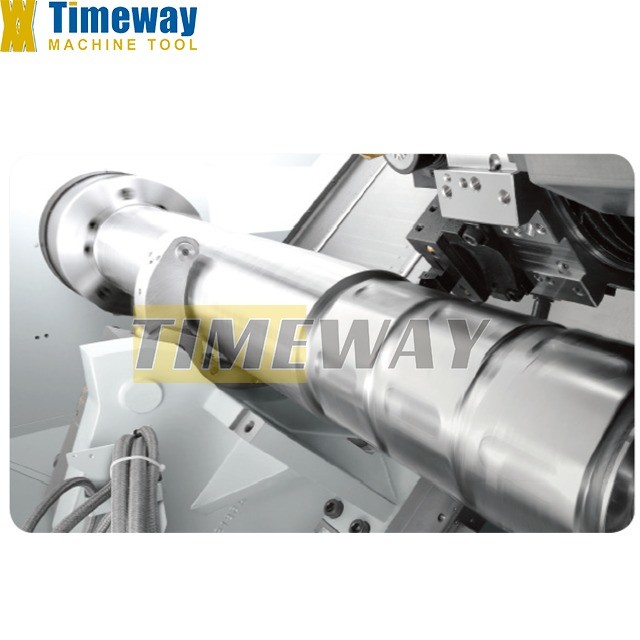

Detailed Images
2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
