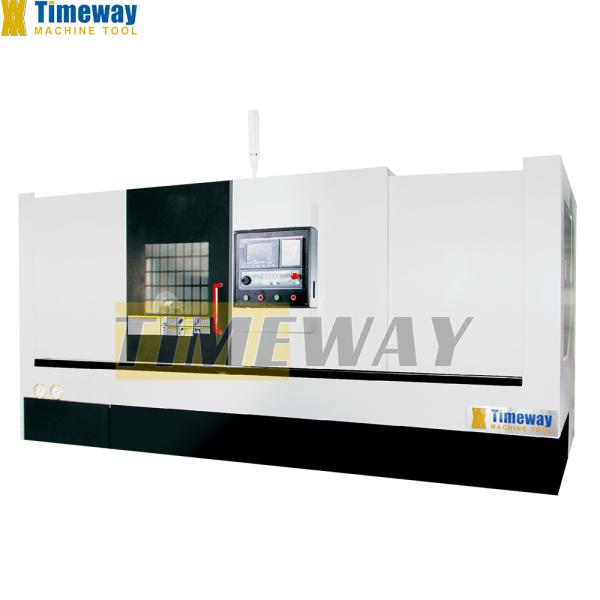

CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
800
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Max. Weight of Workpiece(kg) :
2000
Width of bed (mm) :
640mm
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
400 mm
Travel (Z Axis)(mm) :
750 mm
Positioning Accuracy (mm) :
±0.002
Repeatability (X/Y/Z) (mm) :
±0.012
Place of Origin :
Henan, China
Dimension(L*W*H) :
3800x2200x2200mm
Brand Name :
TIMEWAY
Model Number :
CK-80
Tool Post Stations :
12, 8
Weight (KG) :
5800
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
0 - 1500 r.p.m
Travel (Y Axis)(mm) :
640 mm
Spindle Taper :
other
Cutting torque :
120 N.m
Rapid Feed Speed(mm/min) :
0 - 1600 mm/min
Feed Speed(mm/min) :
0 - 1200 mm/min
Min. Time of Tool Change(s) :
0.7
CNC or Not :
CNC
Machine Type :
Slant Lathe Machine
Control system :
FANUC CNC System
Precision :
High Precision Machine
Spindle speed :
1500rpm
Max. turning diamater :
660mm
Max.swing over bed :
800mm
Max. swing over cross slide :
640mm
Main motor power :
7.5kw
Color :
Customer Optional
Price :
$35,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Product Description
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis

STANDARD ACCESSORIES:

FANUC CNC system
Hydraulic chuck
8/12-station tool turret
Hydraulic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals(English)

OPTIONAL ACCESSORIES:

GSK
SIEMENS CNC system
Air conditioner
Tool setter
Chain type chip conveyor
Specification
SPECIFICATION
UNIT
CK-80
Max. swing over bed
mm
800
Max. swing over cross slide
mm
640
Standard turning diameter
mm
460
Max. turning diameter
mm
660
Max. turning length
mm
750/1500/3000
Max. diameter of bar
mm
90
Spindle speed
rpm
1500
Spindle nose
-
A2-11
Spindle bore
mm
112
Chuck size
mm
380
Cross travel (X)
mm
400
Longitudinal travel (Z)
mm
860/1640/3200
X/Z-axis rapid feed speed
m/min
12/16 (sliding: 12/12)
Hydraulic cool post type
-
125-12T
Tool section size
mm
25x25/Φ40
Tailstock quill diameter
mm
150
Tailstock quill travel
mm
150
Tailstock quill taper
-
MT5, rotary
Bed structure
-
30° Integral bed
Guideway type
-
Linear/Sliding
Working accuracy
mm
IT6
X-axis repositioning accuracy
mm
0.008
Z-axis repositioning accuracy
mm
0.01/0.013
Roughness
um
Ra1.6
Main motor power
kw
22
Power supply
kva
50
Machine dimensions (LxWxH)
mm
3800/4400/5900x2200x2200
Machine weight
kg
5800/6500/7800
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Factory Display：
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
