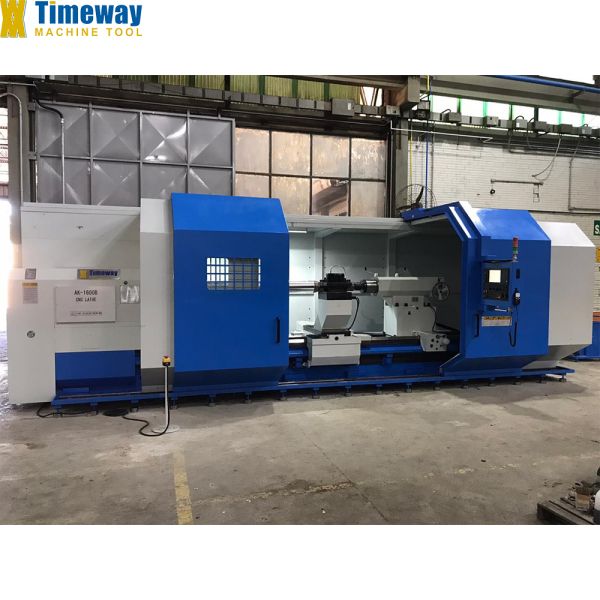

Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
11800
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1250 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
630 mm
Travel (Z Axis)(mm) :
1250 mm
Positioning Accuracy (mm) :
±0.03
Repeatability (X/Y/Z) (mm) :
±0.01
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
AK-1600B
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
16600
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Lathe Machine CNC
Function :
Machining Metal
Precision :
High Precision Machine
Color :
Customer Optional
Max.swing over bed :
1640mm
Max. swing over cross slide :
1250mm
Bed width :
755mm
Loading capacity :
6000 (opt:8000)kg
Processing :
Metal Working Lathe Machine
Spindle Bore(mm) :
130
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location :
Egypt, Canada, Italy, France, Germany, Viet Nam, India, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Japan, Australia
Core Components :
Motor, Gear, Engine
Max. Spindle Speed (r.p.m) :
320 r.p.m
Marketing Type :
New Product 2024
Price :
$34,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Product Description
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B

STANDARD ACCESSORIES:

FANUC/GSK/SIEMENS CNC system
4-jaw chuck,
4-station electric tool-post,
Work lamp
Cooling system
Manual pulse generator (MPG)
Dead centers
Oil gun
Pilot lamp
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)

OPTIONAL ACCESSORIES:

6/8-station tool-post,
Steady rest
Follow rest
Semi-closed guard
Live centers
Air conditioner
Chip conveyor
Full guard

Specification
SPECIFICATION
UNIT
AK-1600B
Max. swing over bed
mm
1640
Max.. swing over cross slide
mm
1250
Distance between centers
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-
Max. turning length
mm
730/1300/1800/2800/3800/4800/5800/7800/9800/11800-
Bed width
mm
755
Loading capacity
kg
6000 (opt:8000)
Spindle nose
-
A2-15
Spindle bore
mm
130
Spindle taper
-
Metric 140
Spindle speed (Hydraulic 4steps, stepless)
rpm
5-320
Center height
mm
820
Chuck size (4-jaw)
mm
1000
X/Z-axis min. feed unit
mm
0.001/0.001
X/Z-axis rapid feed speed
mm/min
3000/5000
Cross travel (X)
mm
630
Tool post type
-
V4/V6/V8
Tool change time
s
2.6
Turret repeat positioning accuracy
mm
0.01
Tool section size
mm
40x40
Tailstock quill diameter
mm
160
Tailstock quill travel
mm
300
Tailstock quill taper
-
MT6
CNC system
-
FANUC/GSK/SIEMENS
Working accuracy
-
IT6-IT7
Surface roughness
um
Ra1.6
Main motor power
kw
30
Machine weight
kg
9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/-
Machine length
mm
4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/-
Machine width
mm
2780
Machine height
mm
2600
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Factory Display：
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Metal Processing Simplified Heavy Duty Flat Bed CNC Horizontal Lathe Machine AK-1600B
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
