Specifications
Max. Length of Workpiece (mm) :
9850
Range of Spindle Speed(r.p.m) :
6 - 800 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
550
Type :
Horizontal
Spindle Motor Power(kW) :
11
Place of Origin :
China
Brand Name :
Timac
Model Number :
AL940B/AL800B
Voltage :
220V/380V
Dimension(L*W*H) :
12275x1430x1690
Weight (KG) :
3000 KG
Warranty :
1 Year
Key Selling Points :
Multifunctional
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. swing over bed :
800mm
Max. swing over cross slide :
520mm
Distance between centers :
8000mm
Max. turning length :
7850mm
Max. swing over gap (optional) :
1000mm
Gap length (optional) :
300mm
Bed width :
550mm
Loading capacity :
2000kg
Spindle nose :
c11
Spindle bore :
100mm
Condition :
New
Spindle Bore(mm) :
100
Applicable Industries :
Machinery Repair Shops
Showroom Location :
Egypt, Turkey, France, India, Morocco, Algeria, South Africa, Uzbekistan, Australia
Core Components :
Gearbox
Max. Turned Length (mm) :
9850 mm
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$30,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

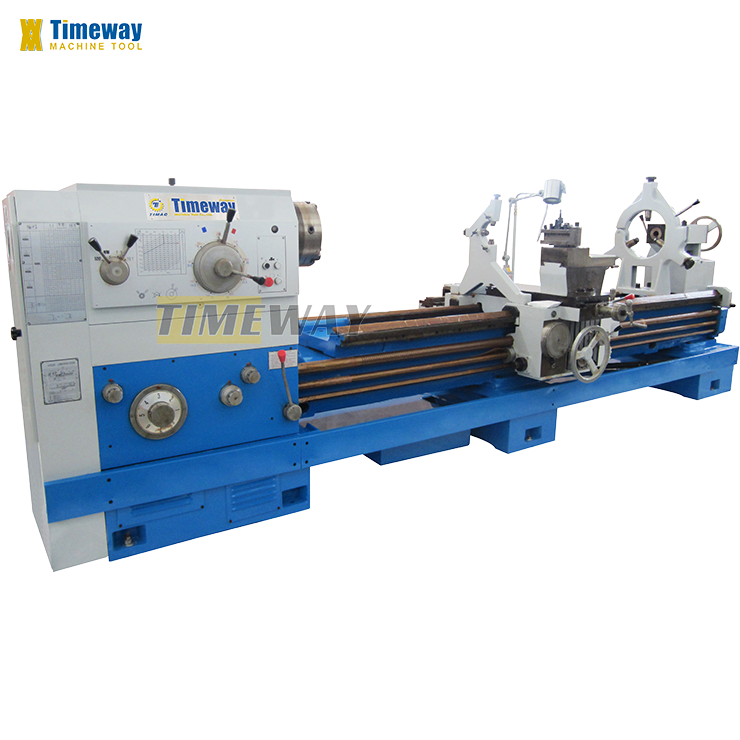

3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
Features:
1.This series lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts.
They can process all kinds of commonly used metric, inch, modulus and diametrical threads, and can cut oil grooves and key ways.
2.Solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting.
3.It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous
metals.
4.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts
an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is
adopted, and the dynamic
characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed
crawling.
5.The spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation
uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil
bath cycle. The front end
of spindle adopts a three-support structure of a two-row angular contact ball bearing, improving accuracy and increasing rigidity.
The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has
the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain
relatively stable accuracy during long term operation.
6.High torsion-resistant flat bed, high-quality cast iron carefully manufactured, and the rail surface induction quenching
precision treatment, by the sticky PTFE conductive rails and precision scraping by hand.
7.Spindle standard through the hole for the Ф100mm large hole; Large speed range with 18 speeds for machining a wide variety of
workpieces.
8.Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the loading capacity can
be up to 2000kg
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
SPECIFICATION
UNIT
AL-800B
AL-940B
Max. swing over bed
mm
800
940
Max. swing over cross slide
mm
520
660
Distance between centers
mm
750/1000/1500/2000/3000/4000/5000/6000/8000/10000/-
750/1000/1500/2000/3000/4000/5000/6000/8000/10000/-
Max. turning length
mm
600/850/1350/1850/2850/3850/4850/5850/7850/9850/-
600/850/1350/1850/2850/3850/4850/5850/7850/9850/-
Max. swing over gap (optional)
mm
1000
1140
Gap length (optional)
mm
300
300
Bed width
mm
550
550
Loading capacity
kg
2000
2000
Spindle nose
C11
C11
Spindle bore
mm
100
100
Spindle taper
Metric 120
Metric 120
Spindle speed range
rpm
6-800
6-800
Spindle speed step
steps
18
18
Longitudinal feed range
mm/r
0.1-24.32(64)
0.1-24.32 (64)
Cross feed range
mm/r
0.05-12.16 (64)
0.05-12.16 (64)
Leadscrew pitch
mm
12
12
Metric threads range (kinds)
mm
1-240 (50)
1-240 (50)
Inch threads range (kinds)
TPI
14-1(26)
14-1 （26)
Module threads range (kinds)
mm
0.5-120 (53)
0.5-120(53)
Diametrical threads range (kinds)
DP
28-1(24)
28-1 (24)
Rapid feed speed
mm/min
4000
4000
Cross slide travel
mm
540
570
Top slide travel
mm
200
200
Tool section size
mm
32×32
32x32
Tailstock quill diameter
mm
100
100
Tailstock quill travel
mm
250
250
Tailstock quill taper
MT5
MT5
Main motor power
kw
11
11
Machine length
mm
2958/3275/3725/4225/5225/6275/7355/8355/10275/12275/-
2958/3275/3725/4225/5225/6275/7355/8355/10275/12275/-
Machine width
mm
1473
1430
Machinè height
mm
1622
1690
Why Choose Us
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
3000 KG High Speed Special Horizontal Lathe Machine for Industry Machinery 2022 Style
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
