Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Specifications
Max. Length of Workpiece (mm) :
1000
Range of Spindle Speed(r.p.m) :
45 - 1800 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
1.5
Place of Origin :
Henan, China
Brand Name :
Timac
Model Number :
T-1440B
Voltage :
380v 50hz
Dimension(L*W*H) :
1940*760*1520mm
Weight (KG) :
750 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Center height :
178mm
Max.swing over bed :
356mm
Max.swing over cross slide :
220mm
Max.swing in gap :
506mm
Distance between centers :
1000mm
Spindle nose :
D4
Spindle bore :
38mm
Packing dimension :
1940*760*1520mm
Main motor :
1.5kw
Spindle bore taper :
M.T.#3
Condition :
New
Spindle Bore(mm) :
38
Applicable Industries :
Manufacturing Plant, Retail, Construction works
Showroom Location :
France, Germany, Viet Nam, Peru, Saudi Arabia
Core Components :
Bearing, Pump, Gear, Motor, Other, Engine
Max. Turned Length (mm) :
1000 mm
Year :
2022
Price :
$5,990.00/sets 1-2 sets
MOQ :
1 set
Description
Features:
1) Precision ground and supersonic frequency hardened bed ways.
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work
5) Easy operating gear box has various feeds and thread cutting function
Product Description

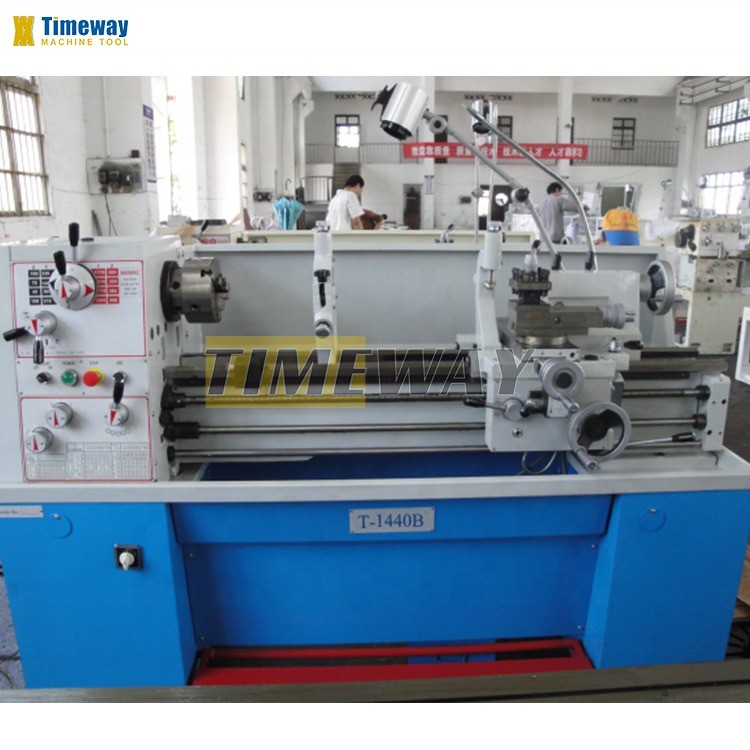

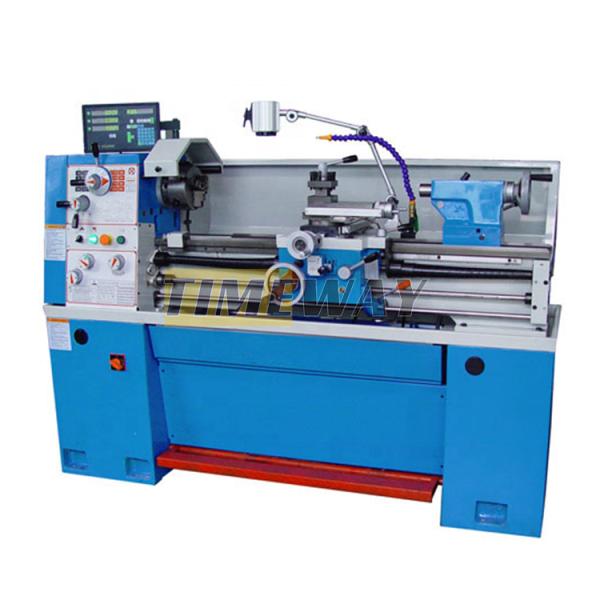

Engine lathe machine T-1440B
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Specification
Specification
Unit
T-1440B
Max.swing over bed
mm
356
Max.swing in gap
mm
506
Longitudinal feed range
mm/rev
0.043-0.653
Cross feed range
mm/rev
0.015-0.220

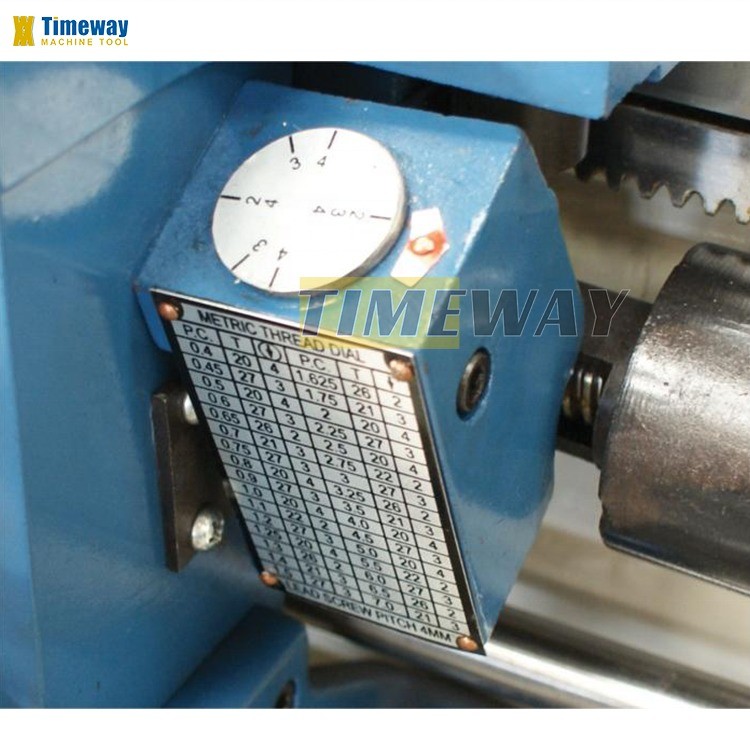

Metric Threads
mm
0.4-7
Inch threads
TPI
4-112
Max.swing over cross slide
mm
220
Spindle nose
-
D4
Spindle bore
mm
38
Spindle bore taper
-
M.T.#3

Standard accessories：

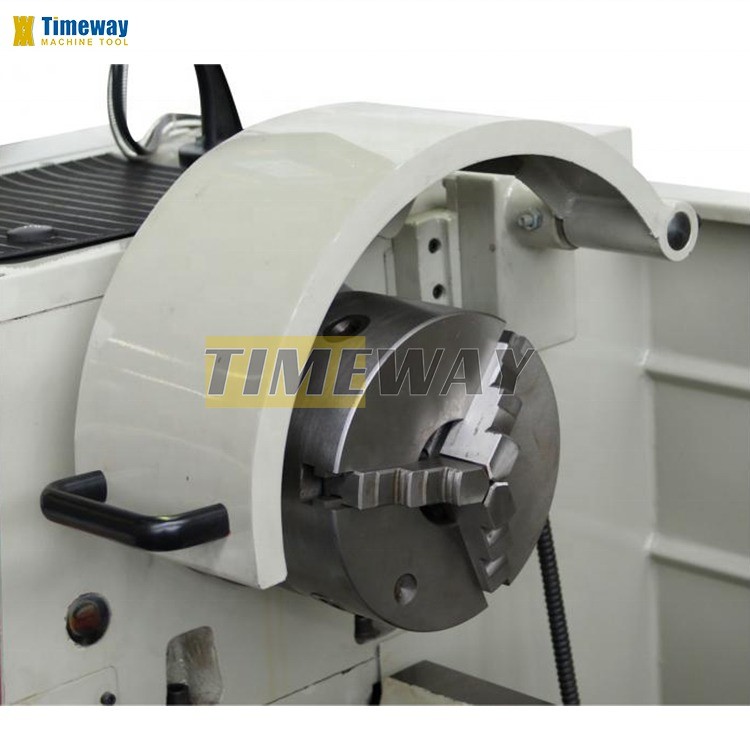

3 jaw chuck,
changing gears
dead centers
reductions sleeve
oil gun
coolant system
working light.

Optional accessories：

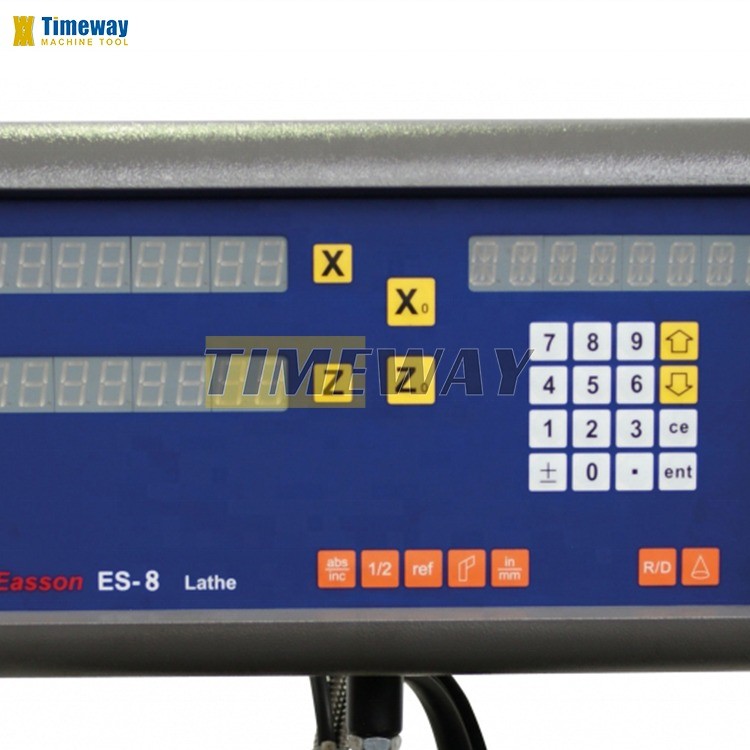

digital readout system(DRO)
quick change tool post & holders
taper turning attachment.
Packing & Delivery
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm

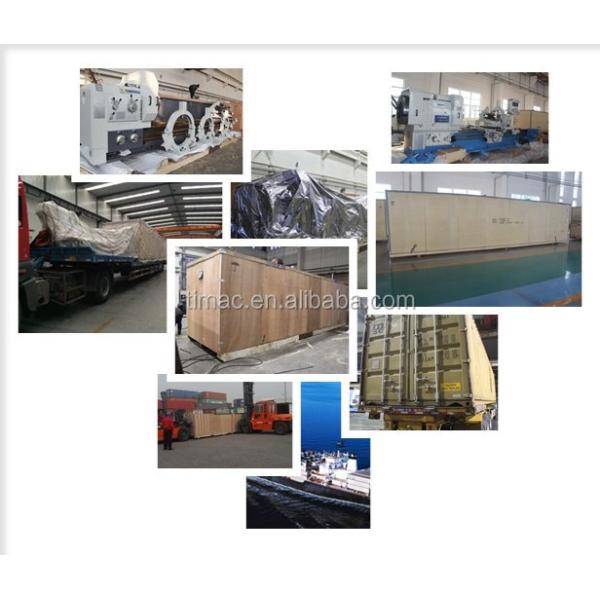

This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition&Training
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Metal Lathe Machine with Max. Swing over Bed 356mm and Max. Length of Workpiece 1000mm
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
