Specifications
Max. Length of Workpiece (mm) :
11800
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
400mm
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
China
Brand Name :
Timac
Model Number :
AL1400C
Voltage :
220V/380V
Dimension(L*W*H) :
15100x2150x1950mm
Weight (KG) :
8000 KG
Warranty :
1 Year
Key Selling Points :
Multifunctional
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Swing over bed :
1400mm
Swing over carriage :
1010mm
Max. length of workpiece :
11800mm
Max. turning length :
3800mm
Bed width :
970m
Max. cutting force :
45000N
Spindle nose :
A2-15
Spindle bore :
130mm
Taper hole of spindle :
Metric140
Range of spindle speeds :
foreward:3.15-315, reversal:3.5-291
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Canada, Brazil, Saudi Arabia, Pakistan, Sri Lanka, Romania, South Africa, Ukraine, Nigeria, Uzbekistan
Core Components :
Bearing, Pump, Gear
Max. Turned Length (mm) :
11800 mm
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$85,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Products Description

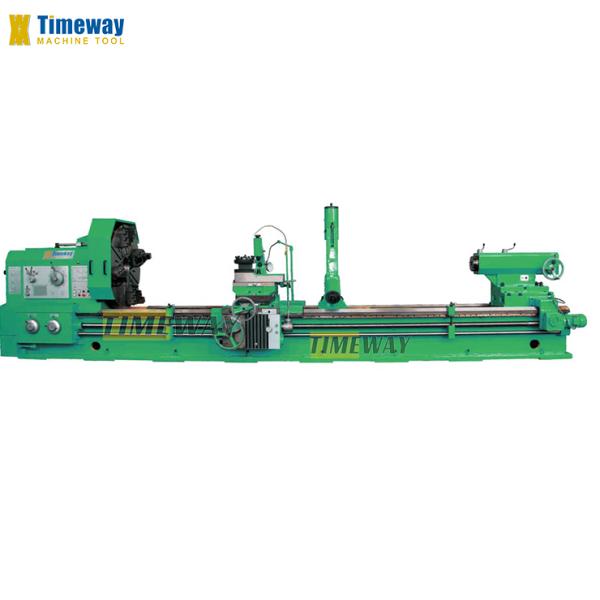

heavy duty horizontal lathe
Features:
1.This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
It can turn outer
circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and
external threads, such as metric, inch, modulus and diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the
measuring length of 300mm.
3.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts
an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is
adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the
occurrence of low-speed
crawling.
4.The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal
deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated
with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-row angular contact ball
bearing. Improve accuracy and increase rigidity.
5.The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle
has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain
relatively stable accuracy during long-term operation.
6.High rigidity one piece type with 970mm bed span, which ensures the machine has strong stability and high precision.
7.Spindle standard through hole diameter is Ф130mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of
spindle is better.
8.The machine can be used to cut the short conical surface by the top tool post, and the long conical
surface can be turned by the top tool post and the longitudinal feed together.
9.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range
of 3.15-315rpm with 33 speeds. The machine standard is equipped with electric moving tailstock, reduce operator labor intensity
and improve work efficiency.
11.The lathe standard loading capacity is 10000kg; Optional can be 12000kg

Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Machinery Repair Shops Manual Horizontal Heavy Duty Lathe Machine Prices for Industry
Specifications
Unit
AL-1400C
Swing over bed
mm
1400
Swing over carriage
mm
1010
Max. length of workpiece
mm
3000/4000/5000/6000/8000/10000/12000
Max. turning length
mm
2800/3800/4800/5800/7800/9800/11800
Span of guideway
mm
970
Max. cutting force
N
45000
Max. weight of workpiece
kg
10000
Dia. of spindle hole
mm
130
Taper hole of spindle
-
metric 140
Range of spindle speeds
r/min
foreward: 3.15-315, reversal：3.5-291
No. of spindle speeds
steps
foreward:21, reversal：12
Longitudinal and cross
kinds
56
Range of feed motion
mm/r
longitudinal:0.1-12, Cross:0.05-6, top tool-post：0.025-3
No. and range of metric thread
mm
1-120 (44)
No. and range of inch thread
TPI
28-1/4 (31)
No. and range of module thread
MP
0.5-60 (45)
No. and range of dia. thread
DP
1/2-56 (38)
Max. travel of cross slide
mm
650
Max. travel of top slide
mm
300
Section of tool shank
mm
45x45
Tool post swing range
°
±90
Rapid of tool post
mm/min
longitudinal: 1870, Cross: 3740, top tool-post: 935
Dia. of tailstock quill
mm
220
Travel of tailstock quill
mm
300
Taper hole of tailstock quill
-
MT6
Main motor power
kw
22
Length
mm
6020/7020/8020/9020/11020/13020/15020
Width
mm
1995
Height
mm
2325
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
4-jaw heavy independent chuck,
Steady rest (over 3M length),
Follow rest,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Electric moving tailstock,
Grinding attachment
