Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
16 - 1600 r.p.m
Machining Capacity :
Medium Duty
Width of bed (mm) :
360
Type :
Horizontal
Spindle Motor Power(kW) :
4/5.5
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
FL-500A FL-500F
Voltage :
As Customers' Requirement
Dimension(L*W*H) :
as model
Weight (KG) :
1750 KG
Warranty :
1 Year
Key Selling Points :
Energy saving
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
normal
Automatic Grade :
manual
After-sales Service Provided :
Engineers available to service machinery overseas
Lathe machine :
Gap bed lathe machine
Max. Swing Diameter :
500mm
Weight :
as model
Power(W) :
4kw/5.5kw
Spindle taper :
Morse No. 6
Spindle nose :
C6
Max. swing in gap :
660mm
Condition :
New
Spindle Bore(mm) :
52
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail
Showroom Location :
Canada, United States, Italy, Germany, Mexico, South Africa, Australia
Core Components :
Bearing, Gear, Motor, Engine
Max. Turned Length (mm) :
1500 mm
Year :
2020
Packaging Details :
Wooden case (can be fumigated)
Supply Ability :
500 Set/Sets per Month
Price :
$35,000.00/sets 1-2 sets
MOQ :
1 set
Description

Precision Gap Bed Lathe Machine

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Product Description

Feature:

  • Powerful precision gearhead lathes with cost effective;
  • Need not change any gears you can turn all the metric and inch thread indicating in chart;
  • Three points support for spindle;
  • Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

Technical Parameter:

Specification Unit FL-360A FL-400A FL-500A FL-600A
FL-360F FL-400F FL-500F FL-600F
Max. swing over bed mm 360 400 500 600
Max. swing over cross slide mm 190 230 330 430
Max. swing in gap mm 520 560 660 760
Center distance mm 750, 1000, 1500, 2000
Bed width mm 360
Spindle hole mm 52 (optional: 82)
Spindle nose ISO-C6
Spindle taper Morse No. 6
Spindle speeds rpm A: 40-1400 (9 Steps), F: 16-1600 (12 Steps)
Metric threads range mm A: 0.25-14mm (19 Steps), F: 0.25-7mm (17Kinds)
Inch threads range T.P.I A: 2-40TPI, F: 0.25-7mm (17Kinds)
Module threads range M.P A: 0.5-3.5mm (11 Kinds), F: 0.25-3.5mm (12 Kinds)
Diametric threads range D.P A: ---, F: 0.25-3.5mm (12 Kinds)
Longitudinal feed range mm/rev 0.0832-4.66
Cross feed range mm/rev 0.048-2.69
Max. travel of top slide mm 95
Max. travel of cross slide mm 180 200 250 250
Max. size of tool (W x H) mm 20 x 20
Tailstock sleeve diameter mm 65
Tailstock sleeve taper Morse No. 4
Tailstock sleeve travel mm 140
Main motor kw 4 5.5 5.5 7.5
Net weight / Gross weight
750mm kg 1350/1750 1400/1800 1500/1900 1600/2000
1000mm kg 1450/1850 1500/1900 1600/2200 1700/2100
1500mm kg 1600/2000 1650/2050 1750/2150 1900/2300
2000mm kg 1750/2150 1800/2200 1900/2300 2050/2450
Packing size(LxWxH) mm 2250, 2450, 2950, 3450 x 1150 x 1750

Standard accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, follow rest, changing gears, dead center, reduction sleeve,

oil gun, Chasing dial indicator, centers, Coolant system, Working light, Foot brake system, Operation manual(English edition).

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

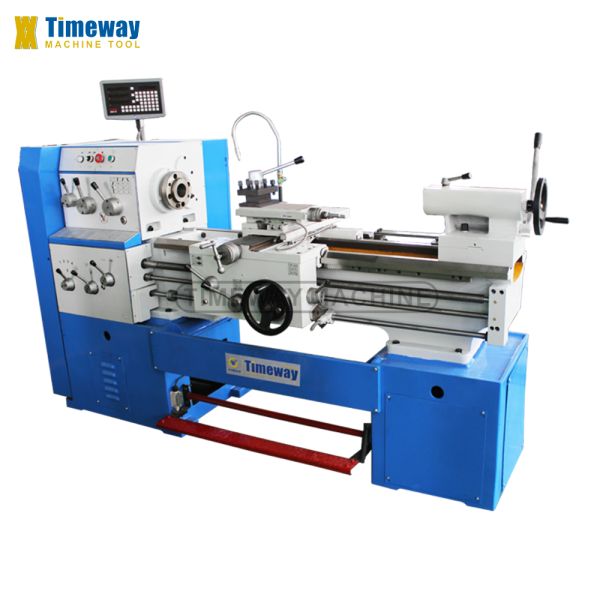

FL-400A & FL-400F

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Factory photos:

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Company Information

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Team&Certification

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Exhibition&Training

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

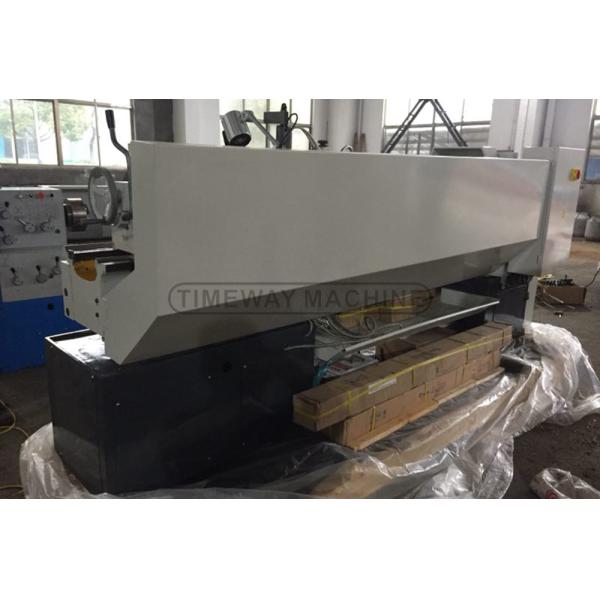

Package&Transport

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Customer Visited

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Export Cases

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
