Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
45 - 1800 r.p.m
Machining Capacity :
Medium Duty
Width of bed (mm) :
250
Type :
Horizontal
Spindle Motor Power(kW) :
2.8/3.3
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
CM-400x1000, CM-400X1500
Voltage :
As Customers' Requirement
Dimension(L*W*H) :
1940x850x1320mm
Weight (KG) :
1550 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
normal
Automatic Grade :
manual
Max. Swing Diameter :
410mm
Weight :
1550/1880kg
Power(W) :
2.8/3.3kw
Max. travel of compound rest :
102mm
Max. travel of cross slide :
210mm
After-sales Service Provided :
Online support
Max. Swing Diameter (mm) :
410
Certification :
CE norms
Condition :
New
Spindle Bore(mm) :
52
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Showroom Location :
Canada, United States, Italy, Germany, Spain, South Africa, Australia
Core Components :
Bearing, Pump, Gear, Motor, Engine
Max. Turned Length (mm) :
1500 mm
Year :
2020
Packaging Details :
Wooden cases(can be fumigated)
Port :
china port
Supply Ability :
500 Set/Sets per Month
Price :
$8,000.00/sets 1-2 sets
MOQ :
1 set
Description

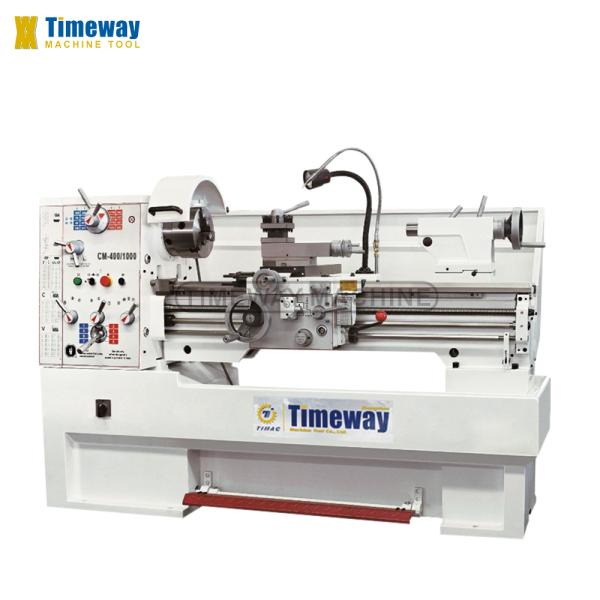

Precision Gap Bed Lathe (CM-400x1000, CM-400x1500)

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Feature:

1. Powerful precision gearhead lathes with cost effective;

2. Need not change any gears you can turn all the metric and inch thread indicating in chart;

3. Three points support for spindle;

4. Clutch in apron for safety and for changing apron feed direction without changing spindle running

direction.

Specification CM-400
Swing over bed 410mm
Swing over cross slide 255mm
Swing in gap 580mm
Length of gap 250mm
Distance between centers 1000, 1500mm
Width of bed 250mm
Spindle nose D1-6
Spindle bore 52mm
Taper of spindle bore No.6 Morse
Range of spindle speed 16 changes 45-1800r/min
Max. travel of compound rest 102mm
Max. travel of cross slide 210mm
Leadscrew pitch 4T.P.I.
Max. Section of tool 20 x 20mm
Longitudinal feeds range 0.05-1.7mm/rev
Cross feeds range 0.025-0.85mm
Metric threads range 39 kinds 0.2-14mm
Inch threads range 45 kinds 2-72T.P.I.
Diametrical pitches range 21 kinds 8-44 D.P.
Module pitches range 18 kinds 0.3-3.5 M.P.
Dia.of tailstock sleeve 50mm
Travel of tailstock sleeve 120mm
Morse taper of tailstock sleeve No.4 Morse
Cross adjustment 13mm
Power of main motor 2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP
Power of coolant pump 0.1kw (1/8HP), 3PH
Overall Dimension (LxWxH) 1940, 2440x 850x1320mm
Packing size (LxWxH) 2060, 2560x 900x1640mm
Net weight/Gross weight 1550, 1850/1800, 2100kg

Standard accessories:

3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)

Optional accessories:

Digital readout system (DRO), quick change tool post & holders, taper turning attachment

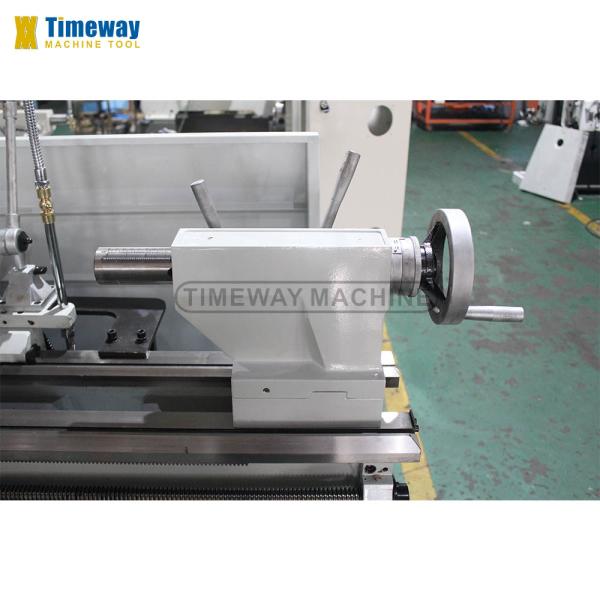

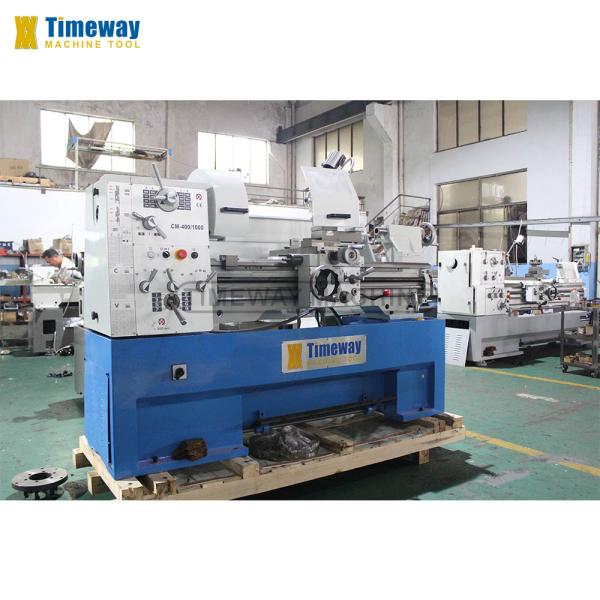

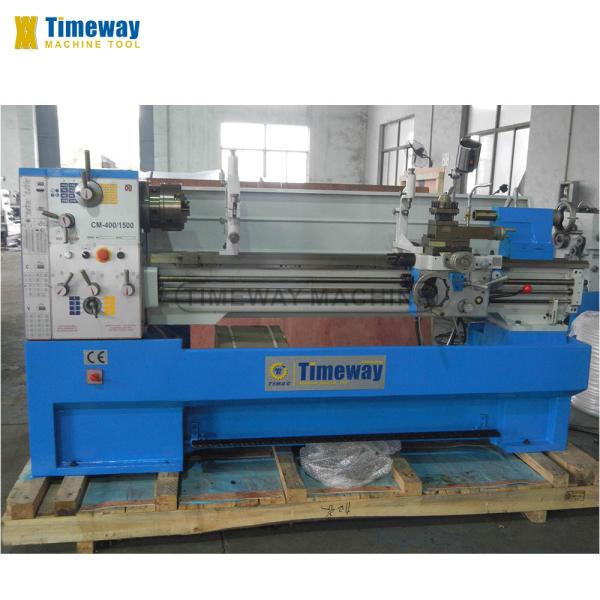

Details image:

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial NeedsPrecision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

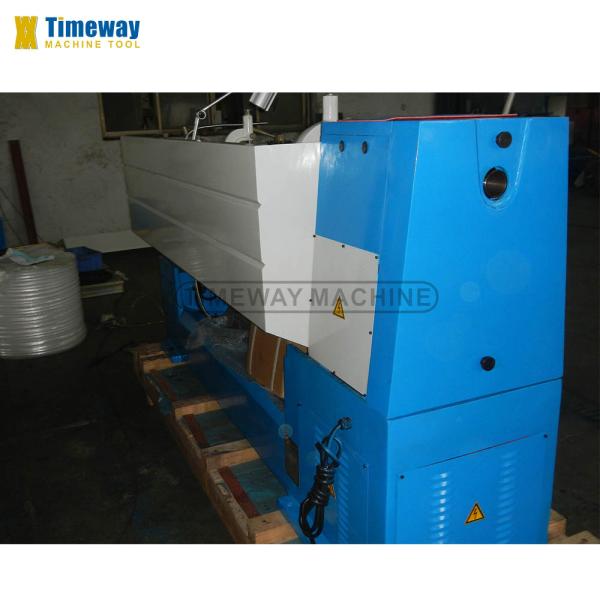

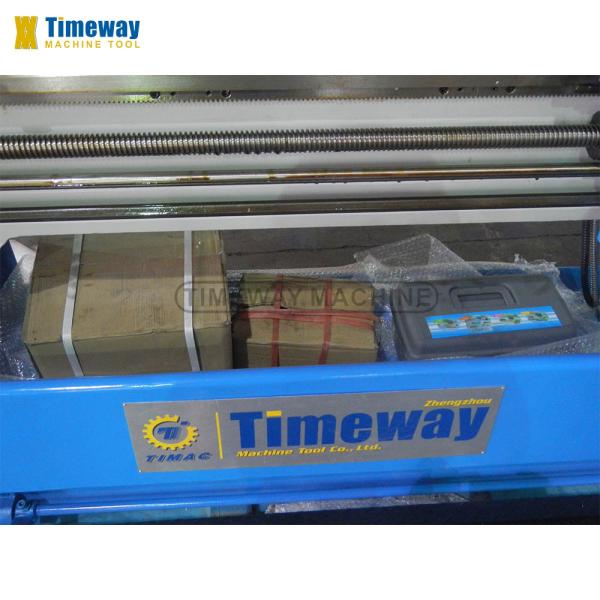

Packaging images:

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial NeedsPrecision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Company Information

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Team&Certification

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Exhibition&Training

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

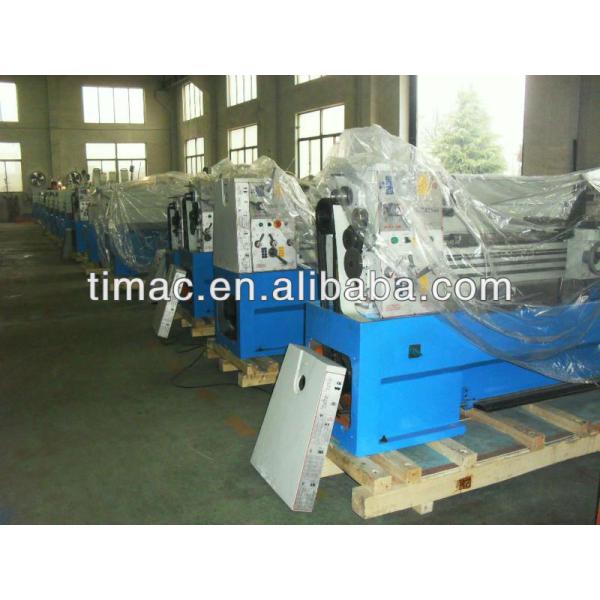

Package&Transport

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Customer Visited

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Export Cases

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
