Specifications
Max. Length of Workpiece (mm) :
1250/1600mm
Range of Spindle Speed(r.p.m) :
4 - 125 r.p.m, 4 - 125 r.p.m
Machining Capacity :
Heavy Duty
Type :
VERTICAL
Spindle Motor Power(kW) :
37
Place of Origin :
China
Brand Name :
Timeway
Model Number :
VL2000E
Voltage :
220V/380V, 220/380
Dimension(L*W*H) :
321*297*420
Weight (KG) :
17500 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Manual Lathe Machine
Machine Type :
Metal Work Lathe
Product Name :
Manual Metal Lathe Machine
Keyword :
Metal Working Machine
Automatic Grade :
Normal
Precision :
High Precision
vertical travel of tool post :
1000mm
cross travel of tool post :
-65~1150mm
Condition :
New
Spindle Bore(mm) :
38
Applicable Industries :
Building Material Shops, Manufacturing Plant
Showroom Location :
Italy, Peru, India, Kenya
Core Components :
Motor
Max. Turned Length (mm) :
2000 mm
Year :
2023
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$58,640.00/sets 1-2 sets
MOQ :
1 set
Description
Summary
This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface.
Product Description

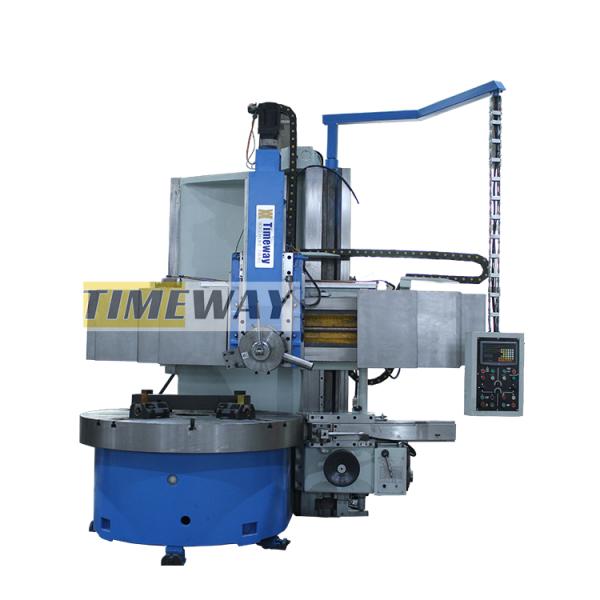

Vertical Lathe VL2000E
VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm
Specification
Specification
Unit
VL1250E
VL2000E
Max. Turning diameter
mm
1250
2000
Max. Height of workpiece
mm
1000/1250/1400
1250/1600
Max. Weight of workpiece
kg
5
12000
Worktable diameter
mm
1010
1800
Max. Cutting force of tool-post
KN
20
25
Max. Torque of worktable
KN.m
17.5
32
Worktable speed
rpm
6.3-200(16)
4-125 (16)
Tool post feed speed
mm/min
0.8-86(12)
0.8-86 (12)
Tool-post rapid feed speed
mm/min
1800
1800
Machine weight
kg
8300/8600/8900
17500/17800
Machine dimension(L×W×H)
mm
2360x2870x3870
3210×2970×4200
Packing & Delivery
VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm
Wooden cases(can be fumigated)

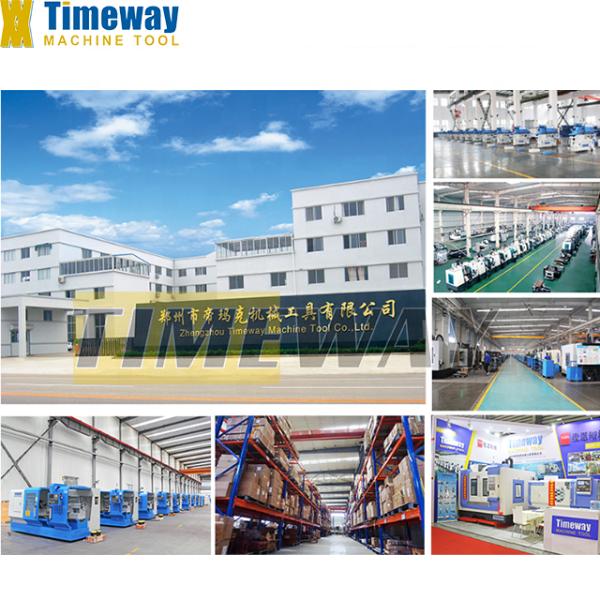

Company Profile
VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing,aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm
We have got many certification.

Client feedback
VL2000E Vertical Turret Lathe Machine Year 2023 Cross Travel of Tool Post -65-1150mm

We have got many good feedback.
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
