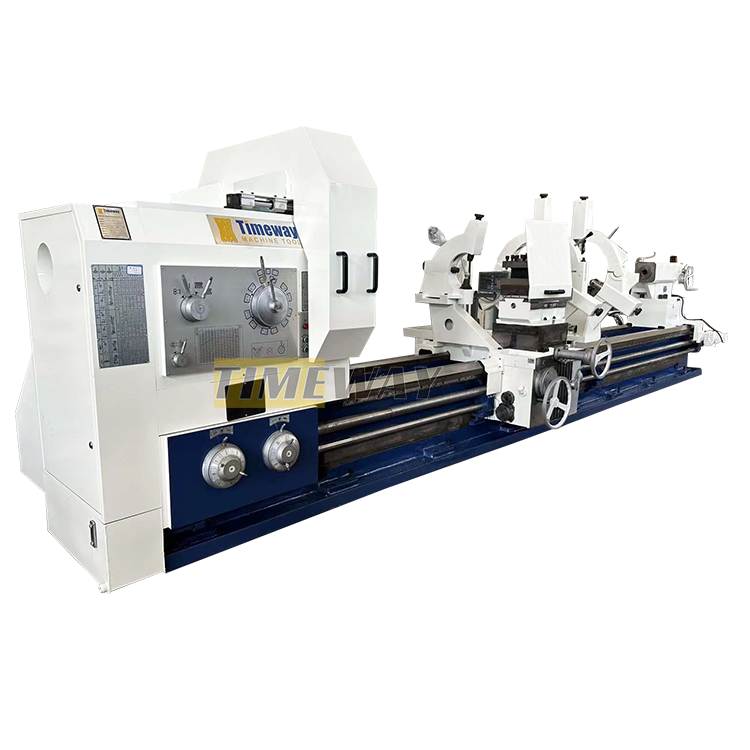

High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
Specifications
Max. Length of Workpiece (mm) :
5000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
Henan, China
Brand Name :
timeway
Model Number :
AL-1800C
Dimension(L*W*H) :
8020*2665*2680
Weight (KG) :
10000 KG
Warranty :
1 Year
Key Selling Points :
High Safety Level
Marketing Type :
Hot Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Heavy Duty Horizontal Lathe
Machine Type :
Horizontal Metal Turning Lathe Machine
After-sales Service Provided :
1 Year (no Human-made Reason)
Distance between centers :
5000mm
Color :
Customers' Request
Model :
AL-1800C
Max. swing over bed :
1800mm
Spindle speed :
3.15-315rpm
Bed width :
970mm
Spindle bore :
130mm
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Showroom Location :
Canada, Turkey, Peru, India, Russia, South Korea, Chile, Romania, Nigeria, Australia
Core Components :
Bearing, Pump, Motor, Gearbox, Pressure vessel, Engine
Max. Turned Length (mm) :
4800 mm
Supply Ability :
150 Set/Sets per Month
Price :
$35,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
Heavy Duty Horizontal Lathe
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales
Features：
1.This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch, modulus and diametrical.
2. The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the measuring length of 300mm.
Specification
Specification
Unit
AL-1800C
AL-1400C
AL-1600C
AL-1800C
Capacity
Swing over bed
mm
1800
1400
1600
1800
Swing over cross slide
m'm
1410
1010
1210
1280
Max.length of workpiece
mm
3000/4000/5000/6000/8000/10000/12000/14000
Max.length of turning
mm
2800/3800/4800/5800/7800/9800/11800/13800
Width of bed
mm
970
Max.torque of spindle
mm
12590
Max.cutting force
mm
45000
Max.force of logitudinal
mm
18000
Max.weight of workpiece
mm
10000
Spindle
Dia.of spindle bore
mm
130
Taper of spindle
-
metric140
No.of forward turning
-
21 kinds
No.of reverse turning
-
12 kinds
Spindle speed
Forward
rpm
3.15-315
Reverse
rpm
3.5-291
Feed motion
No.of feeds per revolution
-
(Longitudinal/tranverse)56/56
Feed per revolution
Longutudinal
mm/r
0.1-12(0.004"-0.473"）
Tranverse
mm/r
0.05-6(0.002"-0.236")
Upper tool-post
mm/r
0.025-3(0.001"-0.118")
No.and range of metric thread
mm
44kinds:1-120
No.and range of inch thread
TPI
31kinds:28-1/4
No.and range of module thread
MP
45kinds:0.5-60
No.and range of diametrical thread
DP
38kinds:1/2-56
Tool post
Size of tool shank
mm
45×45
swing range of tool post
-
±90º
Max.travel of cross slide
mm
650
Max.travel of top slide
mm
300
Rapid of tool post
mm/min
Longitudianl:3740 Tranverse:1870 Top slide:935
Tailstock
Dia.of tailstock quill
mm
220
Travel of tailstock quill
mm
300
Taper hole of tailstock quill
-
Morse No.6#
Others
Main motor power
kw
22
Power of tool post rapid move motor
kw
1.5
Power of cooling pump
kw
0.15
Overall dimension
Length
mm
6020/7020/8020/9020/11020/13020/15020/17020
Width
mm
1995
Height
m'm
2680
2325
2525
2725
Accessories

Standard accessories:

4-jaw heavy duty independent chuck
Steady rest
Follow rest
Dead center
4-station tool post
Cooling system
Work lamp
Electric moving tailstock
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)

Optional accessories:

2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Roller support
Grinding attachment
Company Profile
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales

Our company has advanced production testing equipment, first-class R & D, production, sales and service teams, and behave the own production and acceptance standard higher than the national standard to ensure that each machine delivered by us can make customer satisfaction and help customer create the greatest benefits.
Client feedback
High Safety Level 1800mm Swing Heavy Duty Horizontal Lathe Machine for Sales

Adhering to the "quality products, first-class service, sustainable development" concept, adhere to the "low-key life,high-profile work" spirit of enterprise, look forward to sincere cooperation and work together with the friends from domestic and abroad to create a better future for all.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
