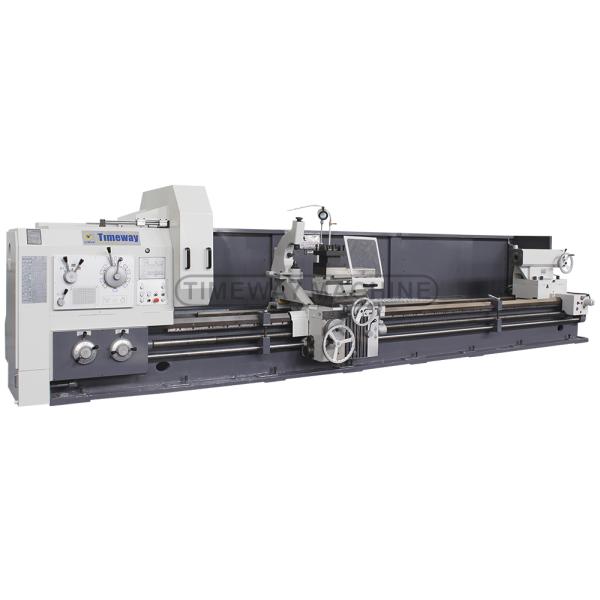

6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
Specifications
Max. Length of Workpiece (mm) :
6000
Machining Capacity :
Heavy Duty
Type :
Horizontal
Spindle Motor Power(kW) :
11
Place of Origin :
Henan, China
Brand Name :
Timeway/TIMAC
Model Number :
AL-1000
Dimension(L*W*H) :
8260*1730*1450
Weight (KG) :
8000 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Marketing Type :
Hot Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Heavy Duty Horizontal Lathe
Machine Type :
Horizontal Metal Turning Lathe Machine
CNC or Not :
Normal Lathe Machine
After-sales Service Provided :
1 Year (no Human-made Reason)
Distance between centers :
6000mm
Color :
Customers' Request
Model :
AL-1000
Spindle speed :
6-750rpm
Spindle bore :
100mm
Loading capacity :
3000kg
Condition :
New
Spindle Bore(mm) :
100
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, Indonesia, India, Russia, Spain, South Africa, Kazakhstan
Core Components :
Bearing, Pump, Gear, Motor
Max. Turned Length (mm) :
5850 mm
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$23,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
Heavy Duty Horizontal Lathe
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales
Features:
The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.
Specification
Specifications
Unit
AL-1000
Swing over bed
mm
1000
Swing over carriage
mm
680
Max. length of workpiece
mm
1500-6000
Max. turning length
mm
1350-5850
Span of guideway
mm
600
Max. weight of workpiece
kg
3000
Spindle nose
-
C11 (C15 optional)
Spindle bore
mm
100 (140 optional)
Taper hole of spindle
-
Metric 1:20
Range of spindle speeds
rpm
CCW: 6-750; CW: 10-775
No. of spindle speeds
steps
18; 6
Longitudinal feed speed
mm/r
0.1-24.32 (64)
Cross feed speed
mm/r
0.05-12.16 (64)
No. and range of metric thread
mm
1-240 (50)
No. and range of inch thread
TPI
14-1 (26)
No. and range of module thread
MP
0.5-120 (53)
No. and range of dia. thread
DP
28-1 (24)
Rapid traverse speed
mm/min
4000
Distance of spindle and tool plane
mm
33
Tool post swing range
°
±90
Max. travel of cross slide
mm
500
Max. travel of top slide
mm
200
Section of tool shank
mm
32x32
Dia. of tailstock quill
mm
100
Travel of tailstock quill
mm
250
Taper hole of tailstock quill
-
MT6
Main motor power
kw
11
Length
mm
3670~8260
Width
mm
1730
Height
mm
1450
Accessories

Standard accessories:

3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)

Optional accessories:

4-jaw independent chuck
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Company Profile
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales

Our company has advanced production testing equipment, first-class R & D, production, sales and service teams, and behave the own production and acceptance standard higher than the national standard to ensure that each machine delivered by us can make customer satisfaction and help customer create the greatest benefits.
Client feedback
6000mm Distance Between Centers Heavy Duty Horizontal Lathe for Sales

Adhering to the "quality products, first-class service, sustainable development" concept, adhere to the "low-key life,high-profile work" spirit of enterprise, look forward to sincere cooperation and work together with the friends from domestic and abroad to create a better future for all.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
