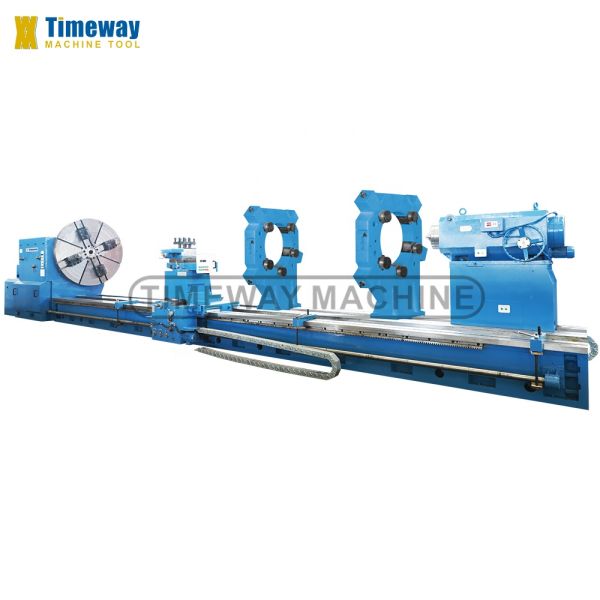

Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Specifications
Max. Length of Workpiece (mm) :
10000
Range of Spindle Speed(r.p.m) :
0.8 - 160 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
75
Place of Origin :
Henan, China
Brand Name :
Timac
Model Number :
AL-2500H
Voltage :
220V/440V
Dimension(L*W*H) :
13577x2515x2655 mm
Weight (KG) :
40000 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. swing over bed :
2500mm
Max. swing over cross slide :
2200mm
Distance between centers :
10000mm
Max. torque of chuck :
80000N.m
Bed width :
1600mm
Loading capacity :
32tons
Spindle taper :
75°
Range of longitudinal feed :
0.125-48 (18)mm
Range of cross feed :
0.063-24 (18)mm
Metric thread :
2-40mm
Condition :
New
Applicable Industries :
Home Use, Retail, Construction works
Showroom Location :
France, Peru, Saudi Arabia, Spain, South Korea
Core Components :
Bearing
Spindle Bore(mm) :
100 mm
Max. Turned Length (mm) :
9800 mm
Year :
2019
Price :
$450,000.00/sets 1-2 sets
MOQ :
1 set
Description
Summary
This machine is a universal lathe with loading capacity of 25/32/40 tons, after used roller support and steady rest, loading capacity to be 40tons. It is suitable for high-speed steel and hard alloy steel tools. For shaft parts of different materials, cylindrical and disc-shaped parts, turning outer ring, end face, slotting, cutting, The boring, the inner and outer cones of the rut, and the use of the upper tool holder (via the hanging wheel) for turning various threads of less than 600 mm in length.

Features:
1. The machine bed is integral box-shaped three rectangular rail structure, which is cast in one-time casting with high-grade cast iron (HT 300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600 mm, the rigidity is good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75 KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2,3 steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
Product Description
Horizontal Heavy Duty Big Lathes AL-2500H
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Specification
Specification
Unit
AL-2500H
Max. swing over bed
mm
2500
Max. swing over cross slide
mm
2200
Distance between centers
mm
10000
Max. torque of chuck
N.m
80000
Bed width
mm
1600
Loading capacity
tons
32
Spindle taper
-
75°
Range of longitudinal feed
mm
0.125-48 (18)
Range of cross feed
mm
0.063-24 (18)
Metric thread
mm
2-40
Accessories

Standard accessories:

• 4-jaw independent chuck
• Steady rest
• Dead center of tailstock
• Cooling system
• Work lamp
• Electric moving tailstock
• Tools & tool-box
• Leveling wedge and bolts
• Operation manual (English)

Optional accessories:

• Face plate
• 2 or 3-axis digital indicator
• Chuck guard
• Tool-post guard
• Rear splash guard
• Roller support
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power

Three slideway rails:

The big heavy duty adopts the three slideway rails structure, bed width is up to 1600 mm, high rigidity and strong anti-vibration so that the loading capacity 40 tons. The lathes' rails adopt medium-frequency hardened (HRC68), and ground by imported rail grinding machine. So the heavy duty have long-service life, high rigidity, and good stable.
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power

Tialstock:

High rigidity and large loading capacity.
Tailstock diameter: 400mm
Center tapered angle: 75°
Tailstock effective travel: 300mm
Tailstock cross moving stroke: 15mm
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power

Electric cabinet:

Clearly wire layout, CE marks electrical components.
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
DC 75kw main motor:
The heavy duty lathes can gain spindle speed 0.8-160rpm with stepless, the main transmission structure is driven by the DC 75KW main motor, large torque and strong turning force for the heavy duty cutting, the spindle speed is adjusted through adjustment of the pressure and magnetism.
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Spindle box:
For the giant lathes, the spindle through hole diameter 85 mm, box split structure, high contact rigidity; The spindle using front and back support type two-point support mechanical structure, so that the big lathes's radial run-out and axial run-out, high rotation accuracy. High-frequency quenching and precision grinding of gear, high precision, smooth operation, low noise.
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Carriage:
The lathes feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate is covenient to select. Two rows of high precision racks are installed on front and behind the giant heavy duty lathes, the front racks drives the carriage feed to realize turning threads, and the behind rack drives foe motorized movement.
Packing & Delivery
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
This is the picture of the packaging in our factory! You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Timeway AL-2500H High Precision Heavy Duty Horizontal Lathe 75kW Spindle Motor Power
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
