Specifications
Max. Length of Workpiece (mm) :
1000
Range of Spindle Speed(r.p.m) :
25 - 2000 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
5.5
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
CL-460x1000
Voltage :
as customer's request
Dimension(L*W*H) :
220/275/325x108x137 cm
Weight (KG) :
1645 KG
Warranty :
1 Year
Key Selling Points :
Sustainable
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
normal
Automatic Grade :
manual
After-sales Service Provided :
Engineers available to service machinery overseas
product type :
Gap Bed Lathe
Power(W) :
4KW
Max. Swing Diameter :
460mm
After-sales Service :
Online support
After-sales Service Provide :
Field installation, commissioning and training
Warranty Service :
Video technical support
After Warranty Service :
Spare parts
Condition :
New
Spindle Bore(mm) :
58
Applicable Industries :
Building Material Shops, Manufacturing Plant, Farms, Retail, Energy & Mining
Showroom Location :
Canada, United States, Italy, Germany
Core Components :
Bearing, Gear, Motor, Engine
Max. Turned Length (mm) :
1000 mm
Year :
2020
Packaging Details :
in wooden case(can be fumigated)or in plywood case
Supply Ability :
100 Roll/Rolls per Month
Price :
$7,500.00/sets 1-2 sets
MOQ :
1 set
Description

"460mm swing"China High Precision Metal Lathe Machine /Horizontal Gap bed Lathe Machine For Sale

Product Description

Features:

1. Inductive hardened, polished grey cast-iron machine bed.
2. Easy, smooth and precisely adjustable speed and feed settings.
3. Hardened, polished gears and shafts, also in feed gear unit.
4. Centrally located, logical switches for feeds and threads with leadscrew and feed rod.
5. Head stock gears are made of high quality steel ground and hardened more than HRC 48°.

Satabdard Accessorise:

3-jaw chuck,4-jaw chuck,Face plate, Dead centers, Thread chasing dial, Splash guard, Oil gun, Work lamp, Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Foundation bolts, Toolbox & tools, Operator manual.

Optional Accessories:

Driving plate, Living center, Taper turning attachment, Drill chuck, Quick change tool holder, 2/3 axis digital readout, Chuck guard, Leadscrew guard, Tool post guard, Frequency inverter.

Parameter:

Specification Unit CL-410 CL-460 CL-510Q
Max. swing over bed mm 410 460 510
Max. swing over cross slide mm 220 270 320
Max. swing over gap mm 640 690 738
Distance between centers mm 1000/1500/ 2000 1000/1500/ 2000 1000/1500/2000
Gap length mm 165 165 165
Bed width mm 300 300 300
Spindle nose - D1-6 D1-6 D1-8
Spindle bore mm 58 58 80
Spindle taper - MT6 MT6 MT7
Spindle speed range (steps) rpm 25-2000 (12) 25-2000 (12) 25-1700 (12)
Top slide travel mm 128 128 130
Cross slide travel mm 285 285 305
Tool section size mm 25x25 25x25 25x25
Leadscrew - 40x4T.P.I or pitch 6mm 40x4T.P.I or pitch 6mm 40x4T.P.I or pitch 6mm
Longitudinal feed range mm/rev 0.031-1.7 (42) 0.031-1.7 (42) 0.031-1.7 (42)
Cross feed range mm/rev 0.014-0.784 (42) 0.014-0.784 (42) 0.014-0.784 (42)
Metric threads range (kinds) mm 0.1-14 (41) 0.1-14 (41) 0.1-14 (41)
Inch threads range (kinds) TPI 2-112 (60) 2-112 (60) 2-112 (60)
Diametrical threads range (kinds) DP 4-112 (50) 4-112 (50) 4-112 (50)
Module threads range (kinds) MP 0.1-7 (34) 0.1-7 (34) 0.1-7 (34)
Tailstock quill diameter mm 60 60 60
Tailstock quill travel mm 130 130 130
Tailstock quill taper - MT4 MT4 MT4
Main motor power kw 5.5 5.5 5.5
Coolant pump power kw 0.1 0.1 0.1
Machine dimensions (LxWxH) cm 220/275/325x108x134 220/275/325x108x137 230/275/325x111x137
Packing size (LxWxH) cm 225/280/330x112x162 225/280/330x112x162 235/280/330x112x153
Net weight kg 1580/1745/1900 1645/1810/1965 1446/1611/1715
Gross weight kg 1844/2049/2229 1910/2115/2295 1711/1916/2045

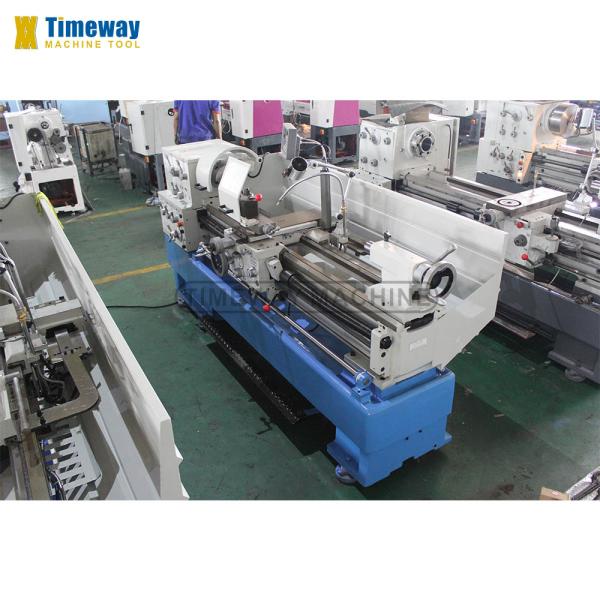

Factory images:

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mmHorizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mmHorizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Company Information

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

Horizontal Gap Bed Lathe Machine with 58mm Spindle Bore Max. Length of Workpiece 1000mm

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
