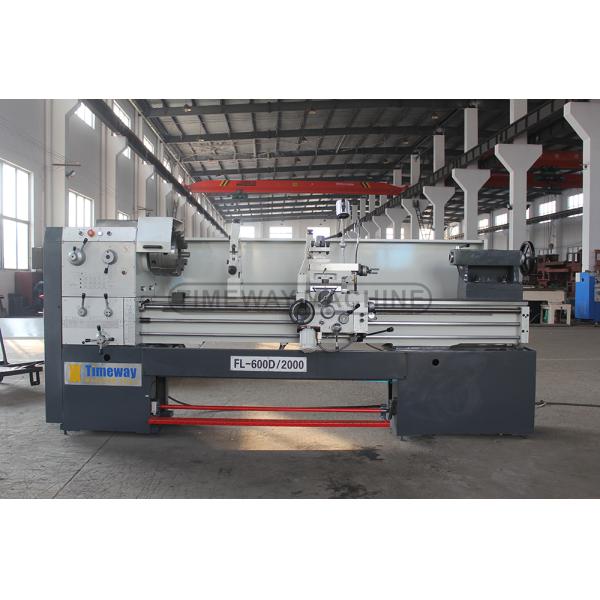

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs
Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
22 - 1800 r.p.m
Machining Capacity :
Medium Duty
Width of bed (mm) :
360
Type :
Horizontal
Spindle Motor Power(kW) :
5.5
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
FL-500B/C/D
Voltage :
as customer's request
Dimension(L*W*H) :
2450*1150*1750mm
Weight (KG) :
2150 KG
Warranty :
1 Year
Key Selling Points :
Automatic
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Automatic Grade :
Manual
After-sales Service Provided :
Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Field maintenance and repair service
product type :
High Speed Precision Gap Bed Lathe Machine
Color :
customized
Max. Swing Diameter :
500mm
Power :
5.5kw
Weight :
2150kg
Max.travel of top slide :
130mm
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
Canada, United States, Italy, Germany, Mexico, Spain, Australia, South Africa
Max. Swing Diameter (mm) :
500
Certification :
CE & ISO
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia
Core Components :
Motor, Engine
Max. Turned Length (mm) :
3000 mm
Spindle Bore(mm) :
65
Year :
2020
Packaging Details :
in wooden case (can be fumigated) or as your request
Port :
Chiana Port
Supply Ability :
50 Set/Sets per Month
MOQ :
1 set
Price :
$6,500.00/sets 2-3 sets
Description

16"-26" High Speed Precision Gap-bed Lathe Machine for sale, Horizontal Lathe Machine Price

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Product Description

Features:

This series lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3 jaw chuck, steady and folllow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.

* Inductive hardened, polished gray cast-iron machine bed.

* Electro-mechanical foot brake reduces downtime significantly.

* State-of-the-art main spindle bearing with high-quality angular ball bearings.

* Large, hardened, polished gears.

Details image:

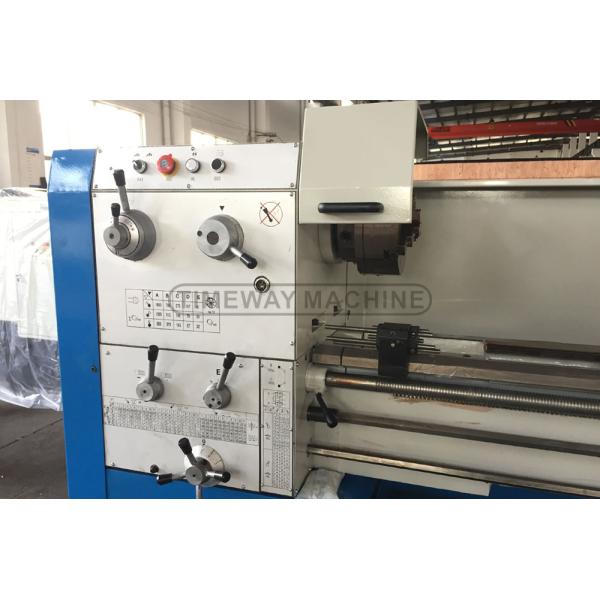

1. Headstock

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

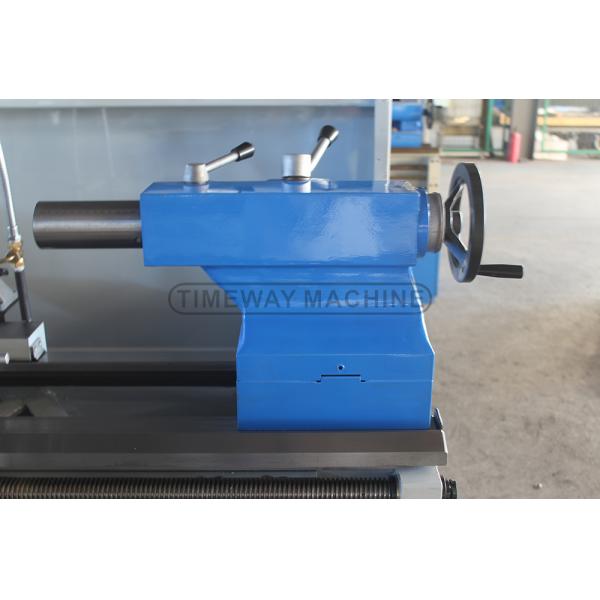

2. Tailstock: To support the workpiece to achieve high pricision processing.

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Standard Accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).

Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution.

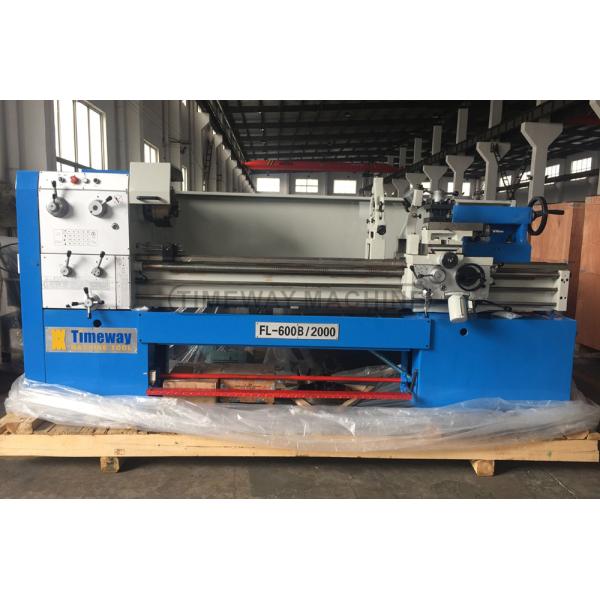

Packaging photos:

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

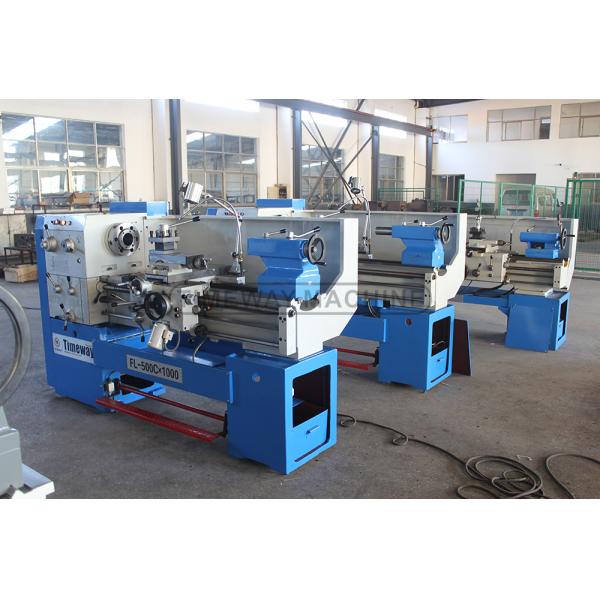

Factory photos:

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Parameter:

Specification

Unit

FL-400B/C/D

FL-500B/C/D

FL-600B/C/D

FL-660B/C/D

Capacity

Max.swing over bed

mm

400

500

600

660

Max.swing over cross slide

mm

240

325

360

420

Max.swing in gap

mm

540

630

730

790

Effective length of gap

mm

260

Distance between centers

mm

1000/1500/2000/3000

Width of bed

mm

360

Headstock

Spindle bore

mm

B:65 C:80 D:103

Spindle nose

B:ISO-D6 C/D:ISO-D8

Spindle taper

B:Metric70 C/D:Metric80

Spindle speed(No.)

rpm

B:22-1800(15steps) C/D:24-1600(15steps)

Feeds

Longitudinal feeds range

mm/r

66kinds 0.072-4.038

Cross feeds range

mm/r

66 kinds 0.036-2.019

Metric threads range

mm

66kinds 0.5-28

Inch threads range

T.P.I

66kinds 1-56

Module threads range

mm

33kinds 0.5-3.5

Diametral Threads range

33kinds 8-56

Carriage

Max.travel of top slide

mm

130

Max.travel of cross slide

mm

300

Max.size of toolshank

mm

25×25

Tailstock

Dia.of tailstock sleeve

mm

65

Taper of tailstock sleeve

MT5

Max.travel of tailstock

mm

120

Motor

Main drive motor

kw

5.5

7.5

Coolant pump motor

w

125

Packing
Size

Center distance:1000mm

mm

2450×1150×1750

1500mm

mm

2950×1150×1750

2000mm

mm

3450×1150×1750

3000mm

mm

4450×1150×1750

Net/gross
weight

Center distance:1000mm

kg

1600/2000

1650/2050

1750/2150

1850/2250

1500mm

kg

1800/2200

1850/2250

1950/2350

2050/2450

2000mm

kg

1950/2350

2000/2400

2100/2500

2200/2600

3000mm

kg

2100/2500

2150/2550

2250/2650

2350/2750

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Company Information

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Team&Certification

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Exhibition&Training

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Package&Transport

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Customer Visited

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

Export Cases

5.5kW High Speed Precision Gap Bed Lathe Machine for Industrial Needs

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
