40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
Specifications
Max. Length of Workpiece (mm) :
10000
Range of Spindle Speed(r.p.m) :
0.8 - 160 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1600
Type :
Horizontal
Spindle Motor Power(kW) :
75
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
AL-1600H, AL-2000H, AL-2500H
Voltage :
220V-440V
Dimension(L*W*H) :
13577x2515x2655 mm
Weight (KG) :
40000 KG
Warranty :
1 Year
Key Selling Points :
Heavy duty cutting force
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
TPI :
1-14
Automatic Grade :
Manual
After-sales Service Provided :
Engineers available to service machinery overseas
product type :
Horizontal Heavy Duty Lathe
Loading capacity :
40tons
Max. swing over cross slide :
2200mm
Distance between centers :
3000-20000mm
Max. torque of chuck :
80000N.m
Bed width :
1600 mm(3 slideway)
Max. travel of cross slide :
800mm
Condition :
New
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
Canada, United States, Italy, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, UAE, South Africa, Australia
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel
Max. Turned Length (mm) :
9800 mm
Spindle Bore(mm) :
85
Year :
2020
Packaging Details :
Wooden pallet.
Port :
China Port
Supply Ability :
10 Set/Sets per Month
Price :
$450,000.00/sets 1-1 sets
MOQ :
1 set
Description
Products Description

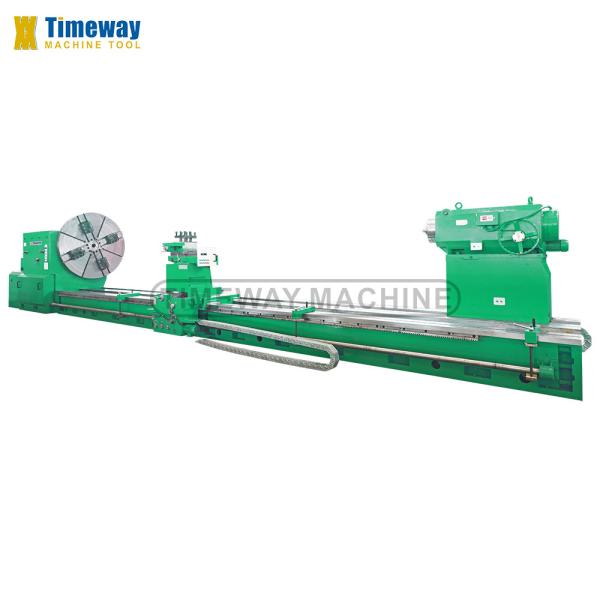

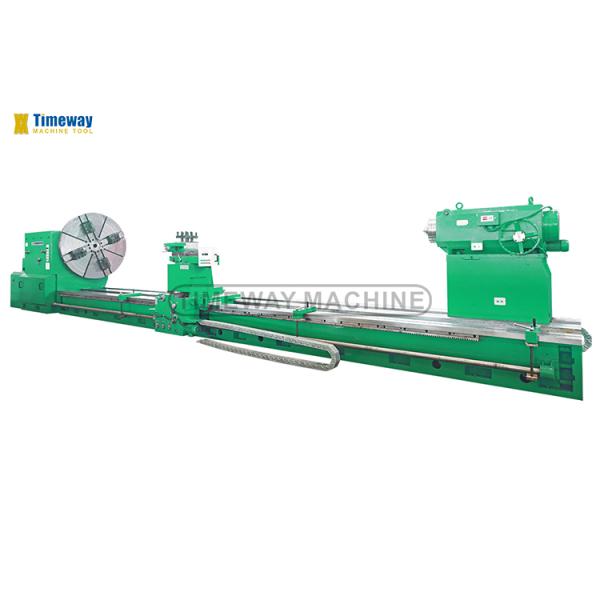

40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

This machine is a universal lathe with loading capacity of 25/32/40 tons, after used roller support and steady rest, loading capacity to be 40tons. It is suitable for high-speed steel and hard alloy steel tools. For shaft parts of different materials, cylindrical and disc-shaped parts, turning outer ring, end face, slotting, cutting, The boring, the inner and outer cones of the rut, and the use of the upper tool holder (via the hanging wheel) for turning various threads of less than 600 mm in length.

Features:
1. The machine bed is integral box-shaped three rectangular rail structure, which is cast in one-time casting with high-grade cast
iron (HT 300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600 mm, the rigidity is
good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high
precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75 KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2, 3 steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
3. The feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed and the feed rate is convenient to select.
4. The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
5. The machine tool standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
6. This series of machine tools supply two kinds of center frame, that is a closed center frame and an open center frame.
7. Two rows of high-precision racks are installed on front and behind the machine, the front racks drives the carriage feed to
realize turning thread, and the rear row of racks drives the tailstock for motorized movement.
8. High rigidity and high precision spindle: The machine tool spindle bearing adopts domestic famous brand products. The spindle
box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To
reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The gears in the headstock are quenched and
grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature
rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term
operation.

40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
Specification
Unit
AL-1600H
AL-2000H
AL-2500H
Max. swing over bed
mm
1600
2000
2500
Max. swing over cross slide
mm
1250
1600
2200
Distance between centers
mm
3000~20000
3000~20000
3000~20000
Max. torque of chuck
N.m
80000
80000
80000
Bed width
mm
1600 (3 slideway)
1600 (3 slideway)
1600 (3 slideway)
Loading capacity
tons
32
32
32
Spindle taper
-
75°
75°
75°
Chuck diameter
mm
1600
1600/1800
1600/1800/2000
Spindle speed range
rpm
0.8-160 (stepless)
0.8-160 (stepless)
0.8-160 (stepless)
Range of longitudinal feed
mm
0.125-48 (18)
0.125-48 (18)
0.125-48 (18)
Range of cross feed
mm
0.063-24 (18)
0.063-24 (18)
0.063-24 (18)
Metric thread
mm
2-40
2-40
2-40
Inch thread
TPI
1-14
1-14
1-14
Module thread
MP
1.5-20
1.5-20
1.5-20
Max. travel of cross slide
mm
725
725
800
Max. travel of top slide
mm
600
600
600
Section of tool shank
mm
70x70
70x70
70x70
Tailstock quill daimeter
mm
300
300
300
Tailstock quill travel
mm
300
300
300
Tailstock quill taper
-
100, 1:7
100, 1:7
100, 1:7
Tailstock rapid feed speed
mm/min
3000
3000
3000
Tailstock quill rapid feed speed
mm/min
664
664
664
Main motor power
kw
75
75
75
Machine length
mm
13577~21577
13577~21577
13577~21577
Machine width
mm
2479
2479
2515
Machine height
mm
2280
2580
2655
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
• 4-jaw independent chuck
• Steady rest
• Dead center of tailstock
• Cooling system
• Work lamp
• Electric moving tailstock
• Tools & tool-box
• Leveling wedge and bolts
• Operation manual (English)
• Face plate
• 2 or 3-axis digital indicator
• Chuck guard
• Tool-post guard
• Rear splash guard
• Roller support
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

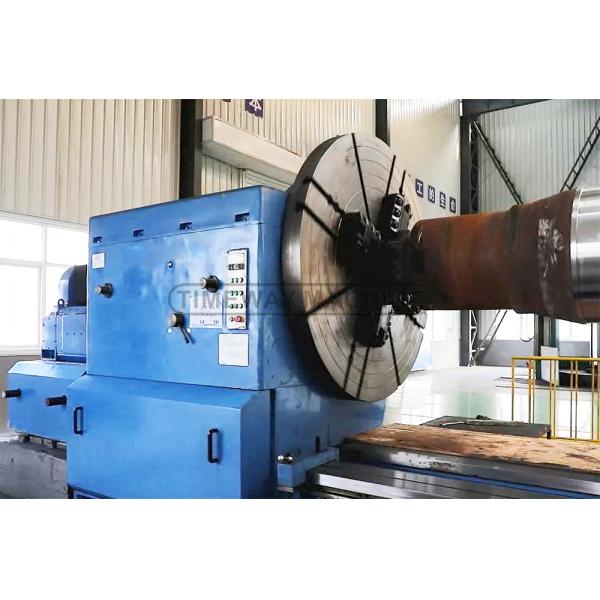

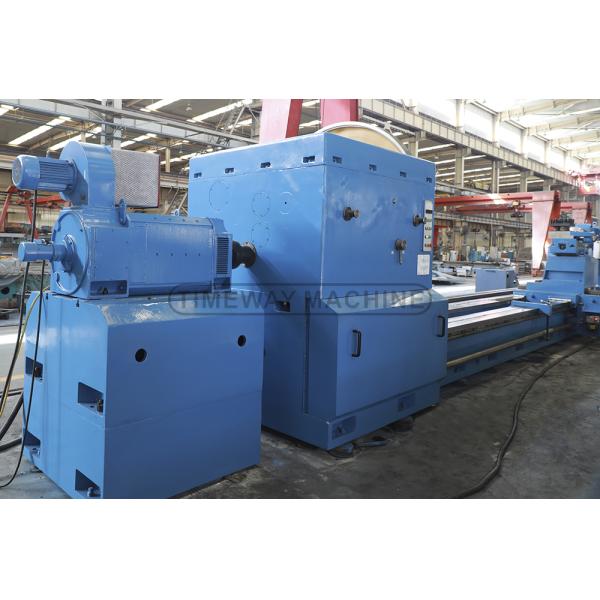

Spindle box:

For the giant lathes, the spindle through hole diameter 85 mm, box split structure, high contact rigidity; The spindle using front
and back support type two-point support mechanical structure, so that the big lathes's radial run-out and axial run-out, high
rotation accuracy. High-frequency quenching and precision grinding of gear, high precision, smooth operation, low noise.
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

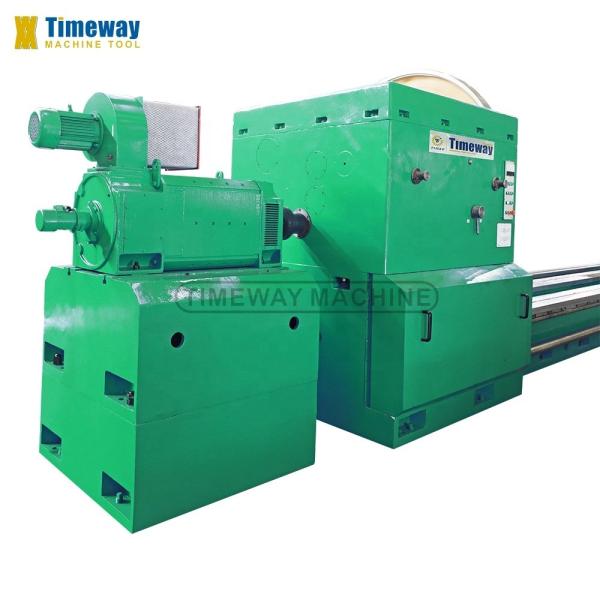

DC 75kw main motor:

The heavy duty lathes can gain spindle speed
0.8-160rpm with stepless, the main transmission structure is driven by the DC 75KW main motor, large torque and strong turning
force for the heavy duty cutting, the spindle speed is adjusted through adjustment of the pressure and magnetism.
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

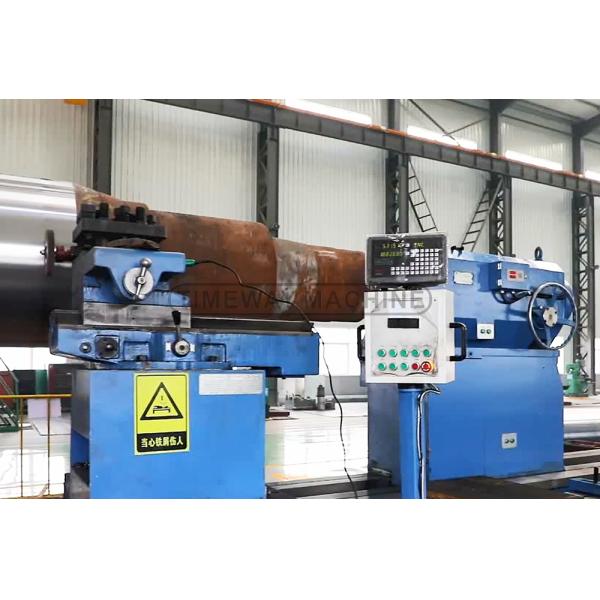

Carriage:

The lathes feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate is covenient to select.
Two rows of high precision racks are installed on front and behind the giant heavy duty lathes, the front racks drives the
carriage feed to realize turning threads, and the behind rack drives foe motorized movement.
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

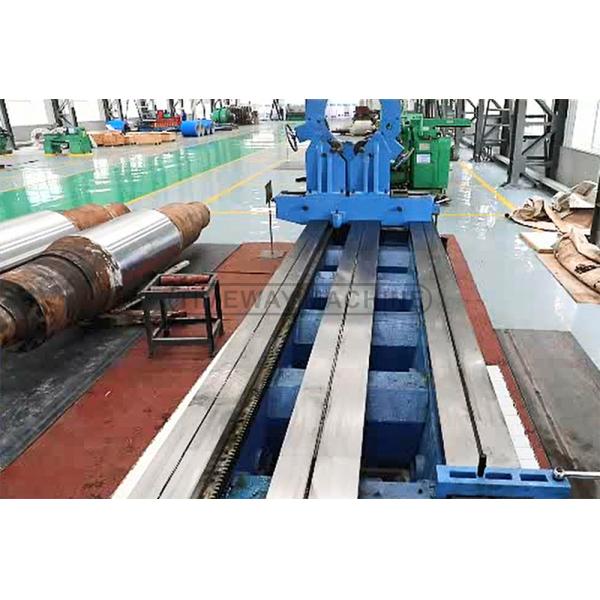

Three slideway rails:

The big heavy duty adopts the three slideway rails structure, bed width is up to 1600 mm, high rigidity and strong anti-vibration so that the loading capacity 40 tons. The
lathes' rails adopt medium-frequency hardened (HRC68), and ground by imported rail grinding machine. So the heavy duty have long-service life, high rigidity, and good stable.
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

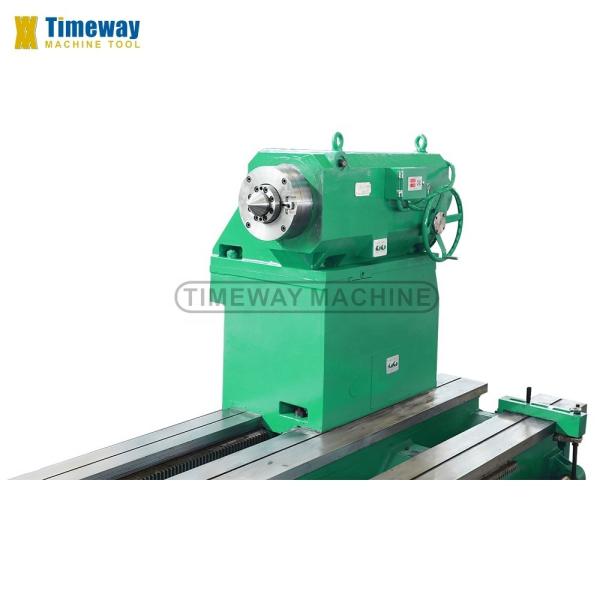

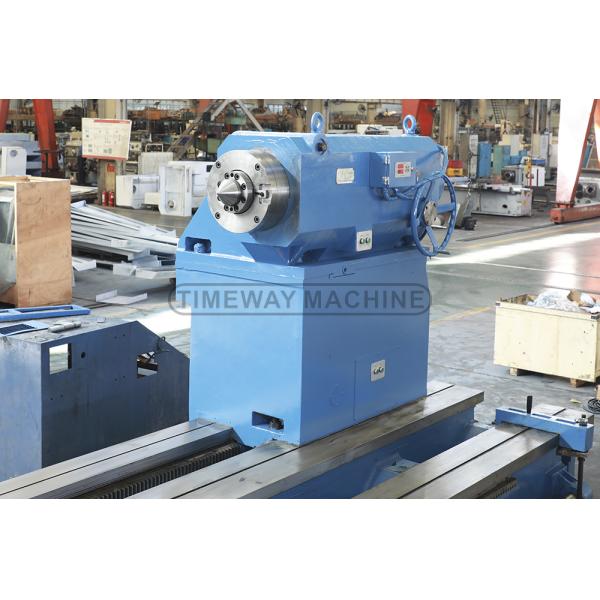

Tialstock:

High rigidity and large loading capacity.
Tailstock diameter: 400mm
Center tapered angle: 75°
Tailstock effective travel: 300mm
Tailstock cross moving stroke: 15mm
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

Steady rest and roller support:

The giant lathes standard are equipped with steady rest, the roller support is optional for the client' choice.
40-Tons Giant Horizontal Heavy Duty Big Lathes with Max. Swing Over Cross Slide 2200mm

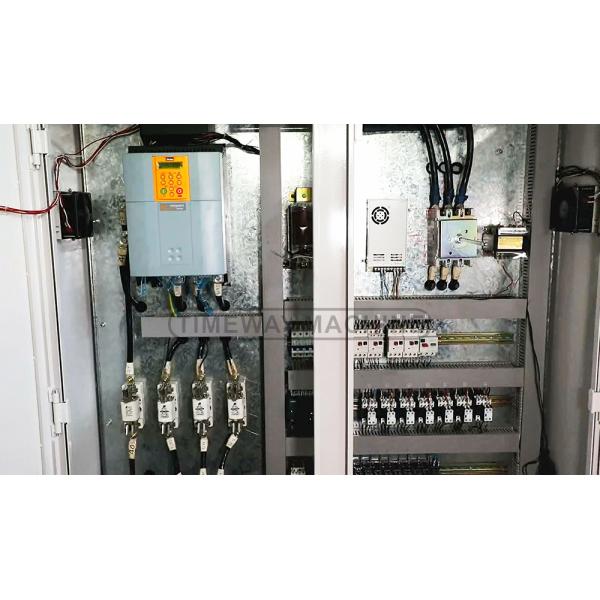

Electric cabinet:
Clearly wire layout, CE marks electrical components.
