Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
25 - 1600 r.p.m
Machining Capacity :
Light Duty
Width of bed (mm) :
400
Type :
Horizontal
Spindle Motor Power(kW) :
7.5
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
CL-800S
Voltage :
As required.
Dimension(L*W*H) :
3210/3710/4710 x 1230 x 1670mm
Weight (KG) :
3980 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Automatic Grade :
Manual
After-sales Service Provided :
Engineers available to service machinery overseas, Online support, Video technical support
lathe :
machinery
Max. Swing Diameter :
800mm
Power :
7.5kw
Weight :
2800/2900/3300kg
After Warranty Service :
Online support
Local Service Location :
Canada, United Kingdom, United States, Germany
Certification :
CE norms
Condition :
New
Applicable Industries :
Manufacturing Plant
Showroom Location :
Canada, United Kingdom, United States, Germany
Core Components :
Bearing
Spindle Bore(mm) :
105
Max. Turned Length (mm) :
3000 mm
Year :
2020
Packaging Details :
Wooden cases (fumigated)
Port :
Shanghai Port
Supply Ability :
50 Set/Sets per Month
Price :
$15,000.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

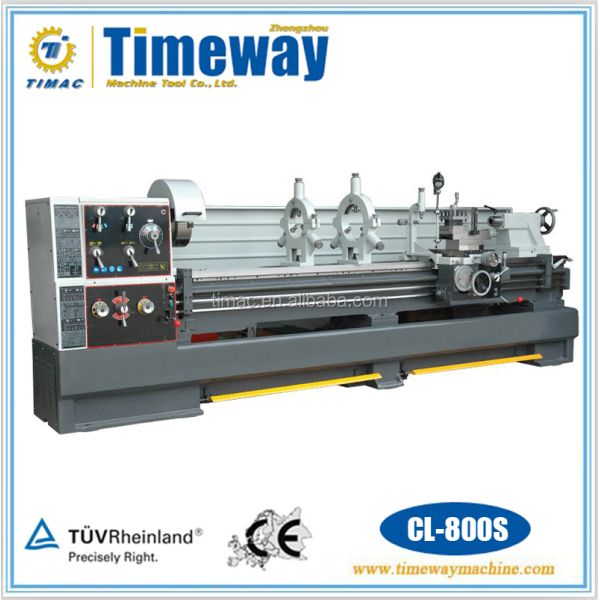

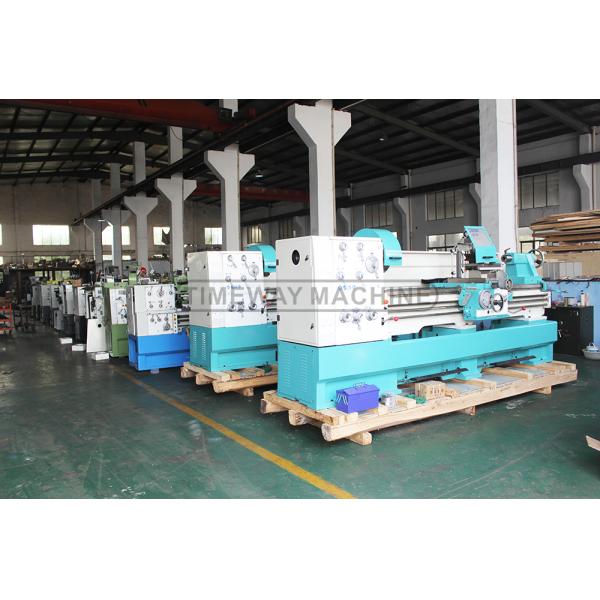

Precision Gap-bed Lathe TORNOS

Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S CompetitiveRange of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S CompetitiveRange of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive

Features:

1. Powerful precision gearhead lathes with cost effective;

2. Need not change any gears you can turn all the metric and inch thread indicating in chart;

3. Three points support for spindle;

4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

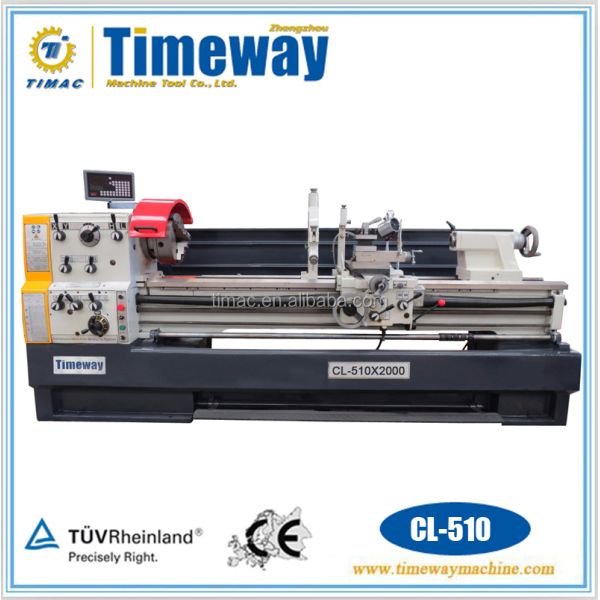

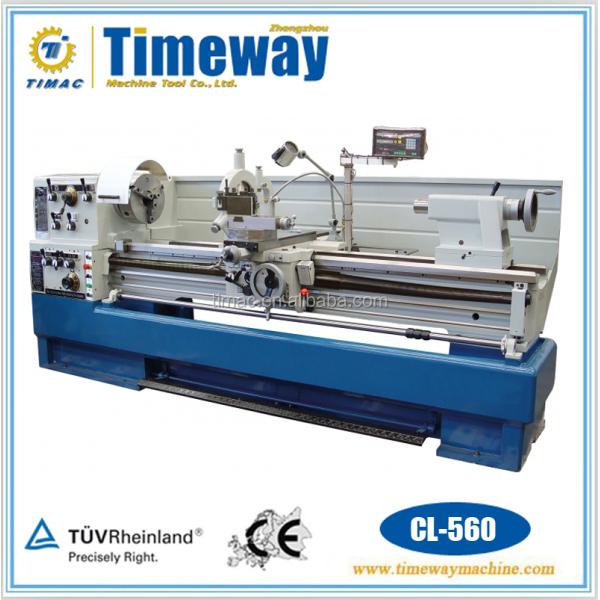

Parameter:

Model

CL-510

CL-560

CL-660

CL-800S

CL-800

Swing over bed

510mm(20")

560mm(22")

Φ660mm

Φ800mm

Swing over cross slide

300mm(11-7/8")

350mm(13-3/4")

Φ440mm

Φ570mm

Φ560mm

Swing in gap

738mm(29")

788mm(31")

Φ900mm

Φ1035mm

Φ1040mm

Distance between centers

1500mm/2000mm

1500mm/2000mm/3000mm

Valid length of gap

200mm(8")

250mm

Width of bed

350mm(13-3/4")

400mm

400mm

510mm

Spindle nose

D1-8

Spindle bore

80mm(3-1/8")

Φ105mm

Taper of spindle bore

No.7Morse

Φ113mm(1:20)/MT5

Range of spindle speed

12changes25-1600r/min

16changes25-1600rpm

16changes17-1100rpm

Max.travel of top slide

130mm(5-1/8")

230mm

Max.travel of cross slide

326mm(12-15/16")

368mm

420mm

Max.section of tool

25×25mm(1"×1")

Pitch thread of leadscrew

 6mm or 4T.P.I.

Φ40mm×2T.P.I. or Φ40mm×12mm

Longitudinal feeds range

35kinds, 0.059-1.646mm/rev(0.0022"-0.0612"/rev)

25 kinds, 0.044-1.48mm/rev (0.00165"-0.05497"/rev)

Cross feeds range

35kinds, 0.020-0.573mm(0.00048"-0.01354")

25 kinds, 0.022-0.74mm/rev (0.00083"-0.02774"/rev )

Metric threads range

47kinds0.2-14mm

0.45-120mm (54 kinds)

Inch threads range

60kinds2-112T.P.L

7/16-80T.P.I. (54 kinds)

Diametrical pitches range

50kinds4-112D.P.

7/8-160DP (42 kinds)

Module pitches range

39kinds0.1-7M.P.

0.25-60MP (46 kinds)

Dia. of tailstock sleeve

75mm(3")

Φ90mm

Travel of tailstock sleeve

180mm(7")

235mm

Taper of tailstock sleeve

No.5Morse

Power of main motor

7.5kw(10HP)3PH

11kW (15HP)

Power of coolant pump

0.1kW(1/8HP) 3PH

Overall dimension(L×W×H) cm

290/340×112×143

321/371/471cm

×123cm×167cm

321/371/471cm

×136cm×167cm

Packing size(L×W×H) cm

296/346×113×182

324/374/474cm

×114cm×191cm

324/374/474cm×

127cm×191cm

Net weight

2335/2685

2370/2720

2800/2900/

3300kg

2850/3050/

3450kg

3100/3300/

3900kg

Gross weight

2700/3070

2740/3110

3100/3200/

3700kg

3180/3450/

3980kg

3450/3750/

4450kg

***Standard accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, Chasing dial indicator, centers, Coolant system, Working light, Foot brake system, Operation manual(English edition)

***Optional accessories:

Digital readout system (D.R.O), Quick change toolpost, Taper turning attachment

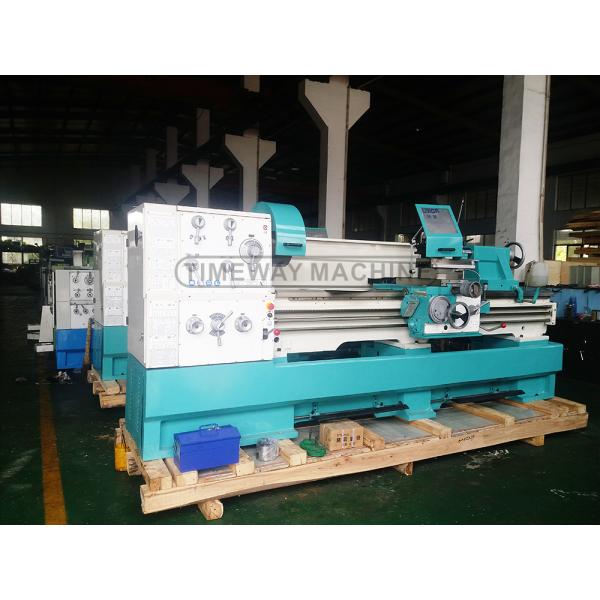

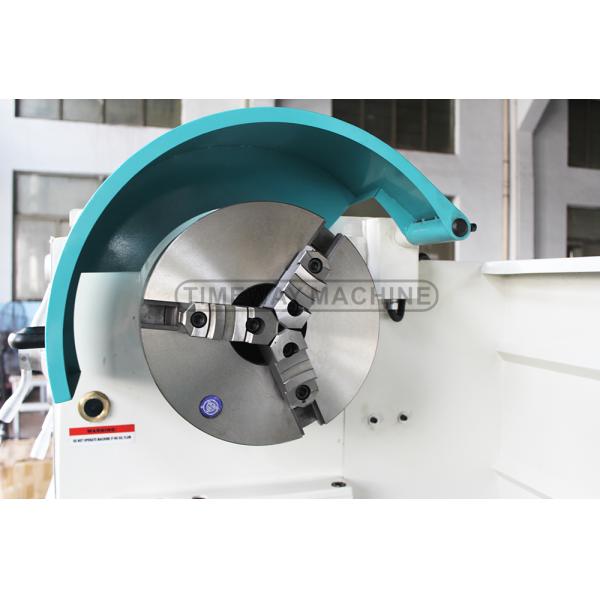

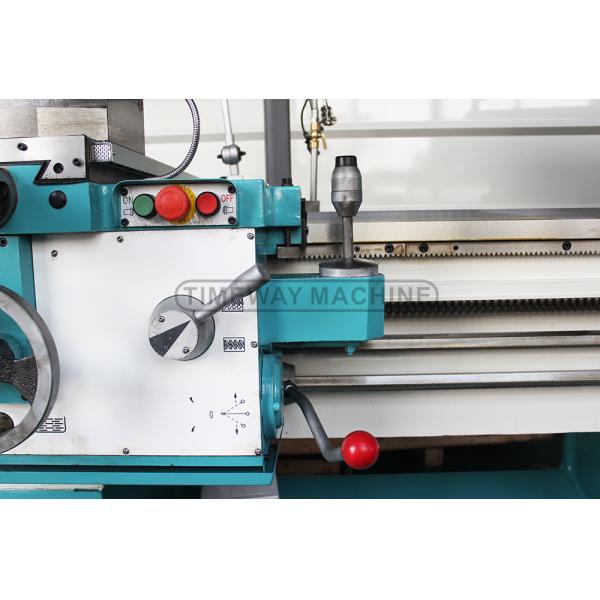

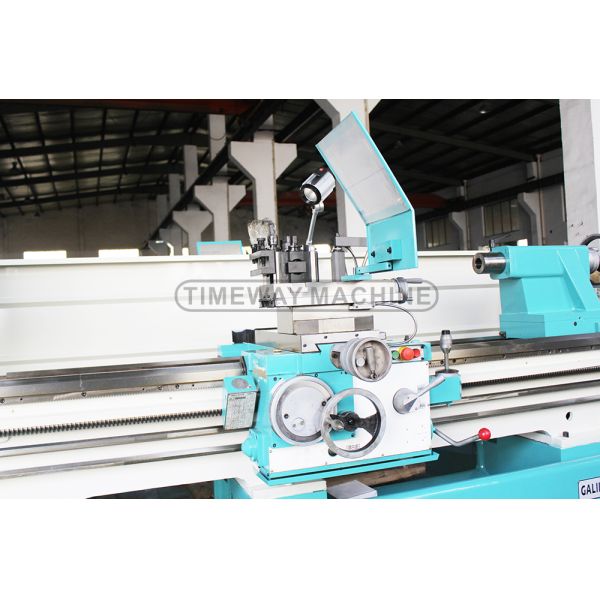

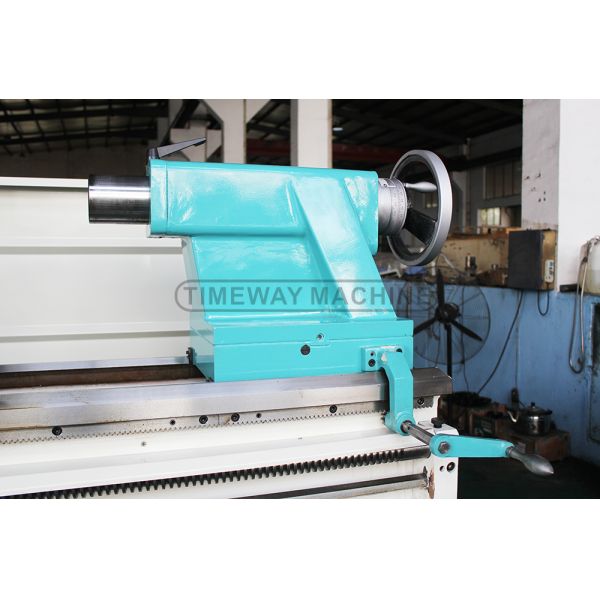

Detail Image:

Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive
Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive
Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive

Packaging & Shipping

Range of Spindle Speed r.p.m 25 1600 r.p.m Precision Gap-bed TORNOS CL-800S Competitive

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG

Container loaded: 4 sets / 20'GP
