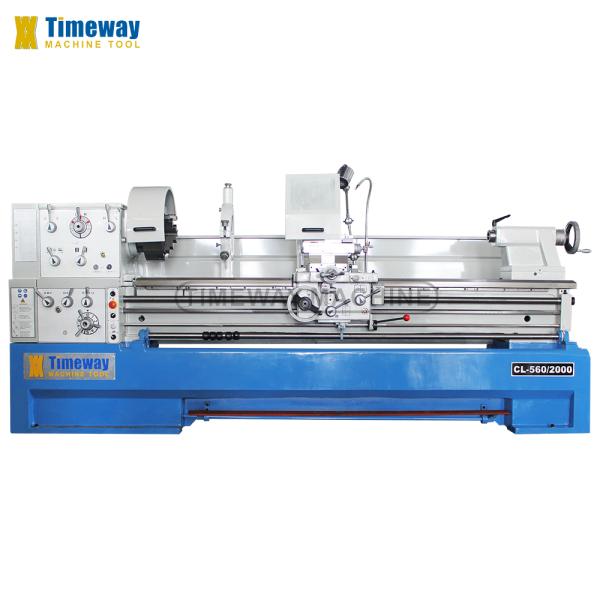

788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
25 - 2000 r.p.m
Machining Capacity :
Light Duty
Width of bed (mm) :
350
Type :
Horizontal
Spindle Motor Power(kW) :
7.5
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
CL-560/2000
Voltage :
as customer's request
Dimension(L*W*H) :
2900/3400*1120*1430mm
Weight (KG) :
3410 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Automatic Grade :
Manual
After-sales Service Provided :
Engineers available to service machinery overseas
product type :
Precision Gap Bed Lathe
Max. Swing Diameter :
560mm
Power :
7.5 kw
Weight :
net weight : 2370/2720 kg
Certification :
CE & ISO
Color :
Customers' Request
Swing in gap :
788mm
Condition :
New
Spindle Bore(mm) :
80
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Italy, Germany, Peru, Argentina, UAE
Core Components :
Bearing
Max. Turned Length (mm) :
3000 mm
Year :
2020
Packaging Details :
wooden case(can be fumigated) or plywood case
Supply Ability :
50 Set/Sets per Month
Price :
$10,615.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
Specification
Unit
CL-560
Swing over bed
mm
φ560
Swing over cross slide
mm
φ350
Swing in gap
mm
φ788
Distance between centers
mm
1000/1500/2000/3000
Valid length of gap
mm
200
Width of bed
mm
350
Spindle nose
-
D1-8
Spindle bore
mm
80
Taper of spindle bore
-
No.7 Morse
Range of spindle speed
r/min
12 changes, 25-1600
Max.travel of top slide
mm
130
Max.travel of cross slide
mm
326
Max.section of tool
mm
25x25
Pitch thread of leadscrew
mm
6 or 4 T.P.I.
Longitudinal feeds range
mm/rev
35kinds, 0.059-1.646
Cross feeds range
mm/rev
35kinds, 0.020-0.573
Metric threads range
mm
0.2-14 (47kinds)
Inch threads range
T.P.I.
2-112 (60kinds)
Diametrical pitches range
D.P.
4-112 (50kinds)
Module pitches range
M.P.
0.1-7 (39kinds)
Dia. of tailstock sleeve
mm
75
Travel of tailstock sleeve
mm
180
Taper of tailstock sleeve
-
No.5 Morse
Power of main motor
kw
7.5 (10HP)
Power of coolant pump
kw
0.1
Overall dimension(LxWxH)
mm
2400/2900/3400/4400x1120x1430
Packing size(LxWxH)
mm
2460/2960/3460/4460x1130x1820
Net weight
kg
2020/2370/2720/3420
Gross weight
kg
2370/2740/3110/3850
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
· 3 jaw chuck
· 4 jaw chuck
· Dead center
· Face plate
· Steady rest
· Follow rest
· Reduction sleeve
· Oil gun
· Coolant system
· Working light
· Chasing dial indicator
· 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
Why Choose Us
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
788mm Swing in Gap and Machining Capacity Universal Center Lathe Machine with 2-axis DRO
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
