10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
Specifications
Max. Length of Workpiece (mm) :
5000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
970
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
AL-1600Cx5000
Voltage :
220V-460V
Dimension(L*W*H) :
8020x1995x2525mm
Weight (KG) :
18000 KG
Warranty :
1 Year
Key Selling Points :
Long Service Life
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Application :
Metal cutting
Function :
Machining external, internal, end-surface, threads, etc.
Accuracy :
IT6
Roughness :
Ra1.6um
Max. weight of workpiece :
10tons (opt: 12tons)
Customized cutting length :
3-20M
Color :
Custom-made
Rapid feed device :
standard
Motorized tailstock :
Standard
DRO :
Optional
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Energy & Mining
Showroom Location :
Canada, United States, Italy, Germany
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel
Max. Turned Length (mm) :
4800 mm
Year :
2020
Packaging Details :
in wooden case (can be fumigated) or plywood case
Port :
China port
Supply Ability :
500 Set/Sets per Year
Price :
$80,000.00/sets 1-2 sets
MOQ :
1 set
Description

Heavy Duty Horizontal Lathe Machine For Sale

(AL-1250C/AL-1400C/AL-1600C/AL-1800C)

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Product Description

Features :

1.This series heavy duty lathe adopts 970mm wide induction hardened and ground bed guide ways, so of

excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.

2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with

Teflon belt coated. Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical

surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized

turning could be done by top slide combined with longitudinal feed. Further more, these machines can

also carry out drilling, trepanning and boring processes, etc.

Parameter :

Specification

Al-1250C

AL-1400C

AL-1600C

AL-1800C

Capacity

Swing over bed

1250

1400

1600

1800

Swing over cross slide

865

1010

1210

1280

Max.length of workpiece

3000/4000/5000/6000/8000/10000/12000/14000/16000/18000

Max.length of turning

2800/3800/4800/5800/7800/9800/11800/13800/15800/17800

Width of bed

970

Max.torque of spindle

12590

Max.cutting force

45000

Max.force of logitudinal

18000

Max.weight of workpiece

10000

Spindle

Dia.of spindle bore

130

Taper of spindle

metric140

No.of forward turning

21 kinds

No.of reverse turning

12 kinds

Spindle speed

Forward

3.15-315

Reverse

3.5-291

Feed motion

No.of feeds per revolution

(Longitudinal/tranverse)56/56

Feed per revolution

Longutudinal

0.1-12(0.004"-0.473"

Tranverse

0.05-6(0.002"-0.236")

Upper tool-post

0.025-3(0.001"-0.118")

No.and range of metric thread

44kinds:1-120

No.and range of inch thread

31kinds:28-1/4

No.and range of module thread

45kinds:0.5-60

No.and range of diametrical thread

38kinds:1/2-56

Tool post

Size of tool shank

45×45

swing range of tool post

±90º

Max.travel of cross slide

650

Max.travel of top slide

300

Rapid of tool post

Longitudianl:3740 Tranverse:1870 Top slide:935

Tailstock

Dia.of tailstock quill

220

Travel of tailstock quill

300

Taper hole of tailstock quill

Morse No.6#

Others

Main motor power

22

Power of tool post rapid move motor

1.5

Power of cooling pump

0.15

Overall
dimension

Length

6020/7020/8020/9020/11020/13020/15020/17020/19020/21020

Width

1995

Height

2175

2325

2525

2725

Standard Accessories:

4 jaw chuck, Steady rest, Follow rest, Dead center, Oil gun, Coolant system, Working light, General tools, Foundation bolts, Operation manual(English edition)

Optional Accessories:

2/3-axes DRO, Taper turning attachment, Grinding attachment.

Main structures:

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

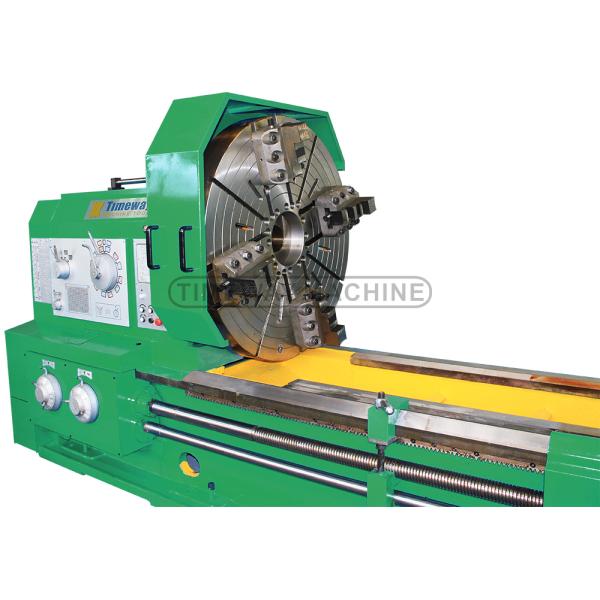

Headstock & Chuck

⇒ The heavy duty lathe gain wide-range spindle speed of 3.15-315 rpm with 33 speeds.

⇒ The heavy duty lathe are equipped with 4-jaw heavy lathe chuck, strong clamping force.
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

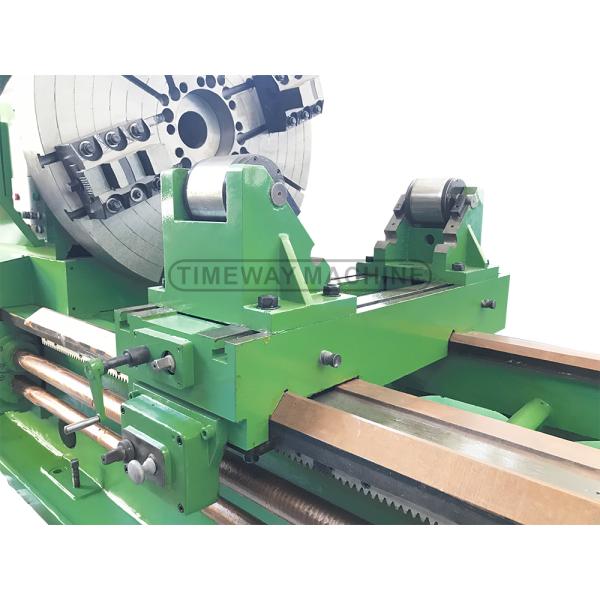

Open-type Steady Rest

⇒ Roller support (open-type steady rest) is standard configuration, make sure cutting bigger parts.

⇒ The roller support move right and left on the rails of metal lathe through gear and rack, reduce labor intensity.

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

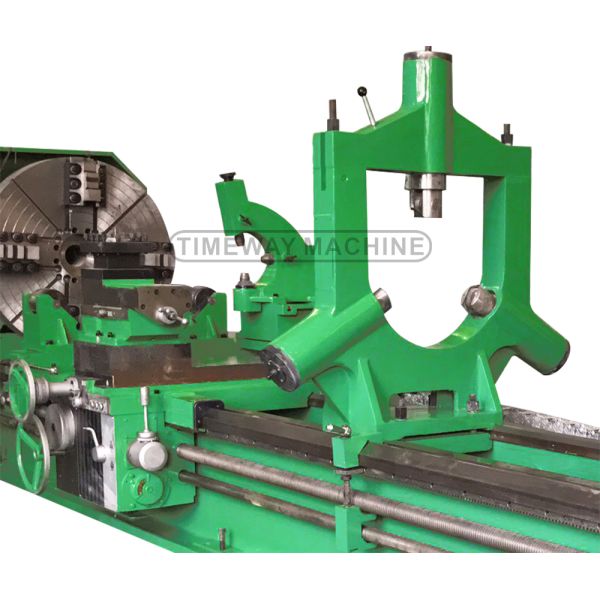

Closed-type Steady Rest

⇒ The steady rest adopts three-point supporting structure, positioning accuracy is higher.
10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Motorized Tailstock

⇒ Horizontal lathe are equipped with motorized tailstock, movement simple and easy.

⇒ The sleeve of tailstock can rough feed and fine feed.

Paint Spraying and Package

The client can choose the color of the metal lathe to painting according to RAL colour. Our all lathes are packed with vacuum pakcages and wooden case for safety shipping.

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Company Information

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Team&Certification

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Exhibition&Training

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Package&Transport

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Customer Visited

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

Export Cases

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
